晶状体、混凝土?对,你没看错这确实是个住宅!第1张图片

E20私人住宅
E20 Private Residence / STEIMLE ARCHITEKTEN BDA

由专筑网李琪,韩平编译

来自建筑事务所的描述。距离斯图加特30公里的普利茨豪森小镇的一处人烟稀少的街道上,坐落着一座引人瞩目的私人住宅。它完全使用保温混凝土进行整体设计。

From the architect. The striking residence, a monolith designed of insulating concrete is located on a quiet street with little traffic in the village of Pliezhausen, a good 30 km south of Stuttgart.

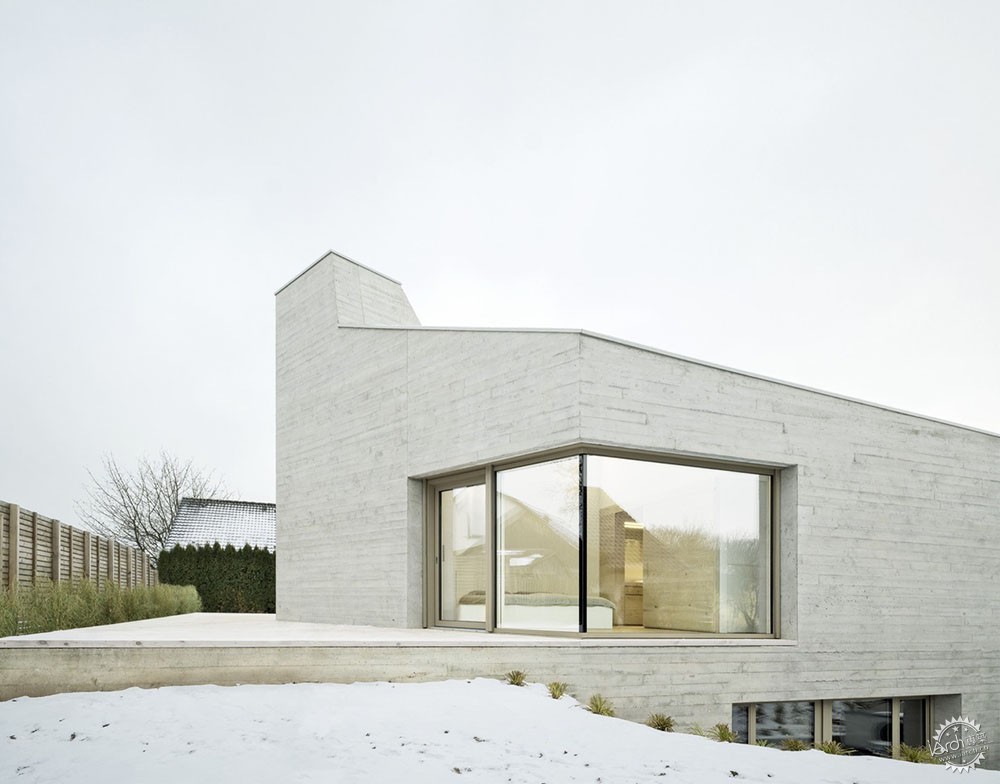

晶状体、混凝土?对,你没看错这确实是个住宅!第2张图片
© Brigida González

在面对街道的立面上,新建筑只在坚硬混凝土的外壳上挖去几个较深的开洞。建筑呈现晶体形状,因此其平行细长的侧面仍然能与现有的建筑环境呼应,但是其短边形成的锐角形态则与邻近建筑物形成了直接鲜明的对比。正是这种倾斜立面的布置,能够使建筑视野延伸到周围的室外空间,并给居住者提供远处意想不到的广阔风景。房子设计成一个六边形平面,传统的山墙屋顶和平缓上升的地形增强了房子的棱角雕塑效果。

Facing the street, the new building presents only a few openings cut deeply into the solid concrete shell. While the crystal-shaped house still relates to the existing built context due to its parallel elongated sides, it contrasts distinctly with the neighboring buildings by virtue of the tapered ends formed by its shorter sides. It is this oblique arrangement of the facades that enables the building to open out to the surrounding outdoor spaces and to offer its inhabitants unexpectedly expansive views in the distance. A conventional gable roof and the gently rising terrain reinforce the angular, sculptural effect of the house, which is designed on a hexagonal ground plan.

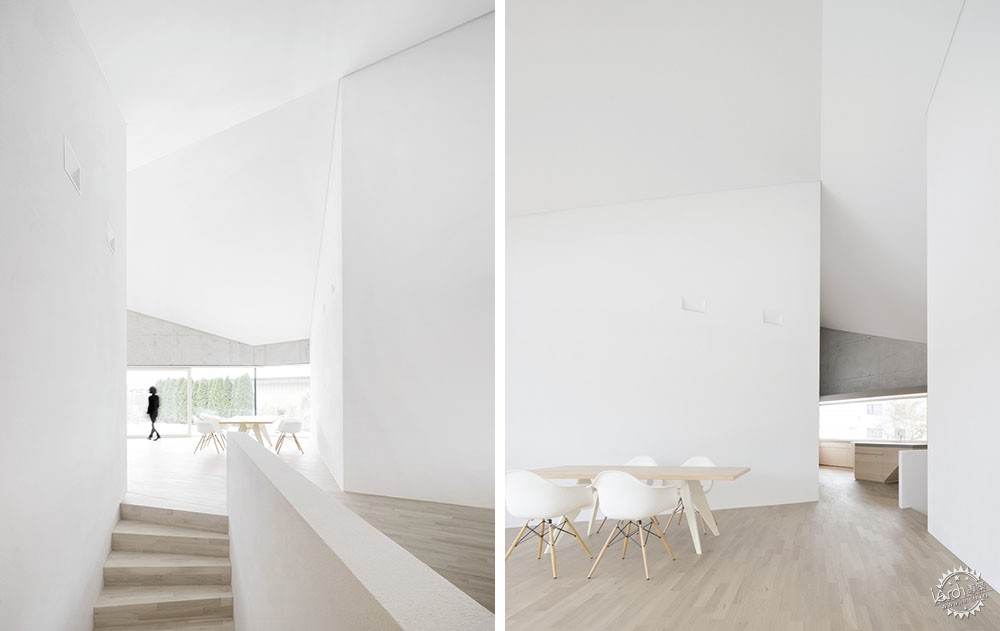

晶状体、混凝土?对,你没看错这确实是个住宅!第3张图片
© Brigida González

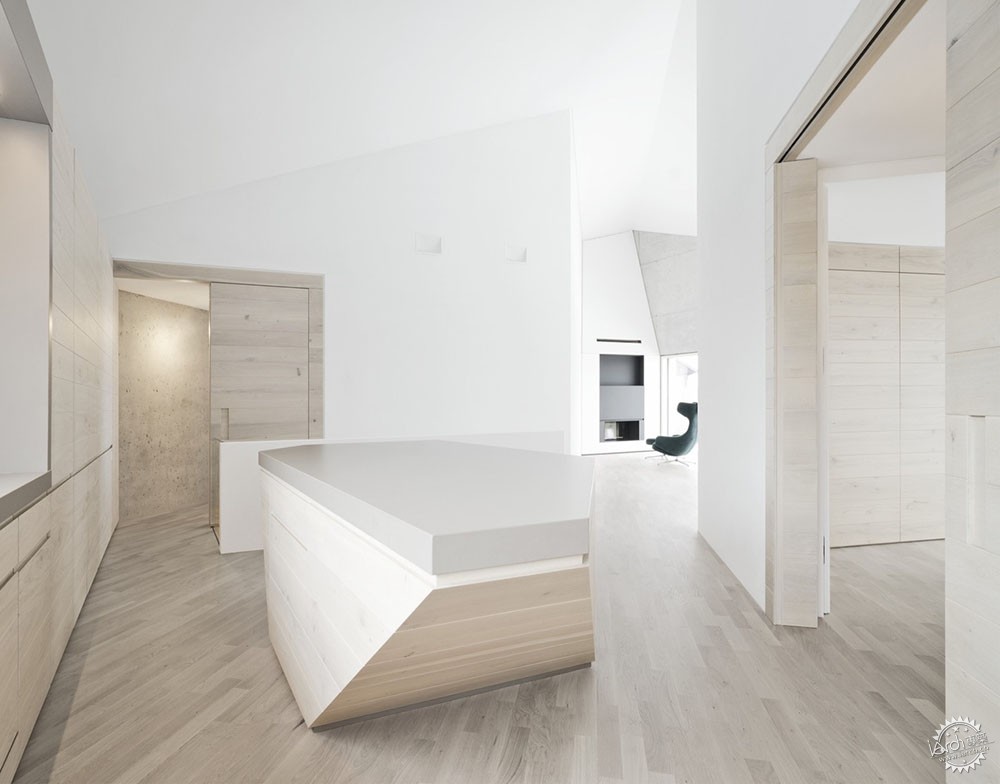

晶状体、混凝土?对,你没看错这确实是个住宅!第4张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第5张图片
底层平面图/Floor Plan Level 00

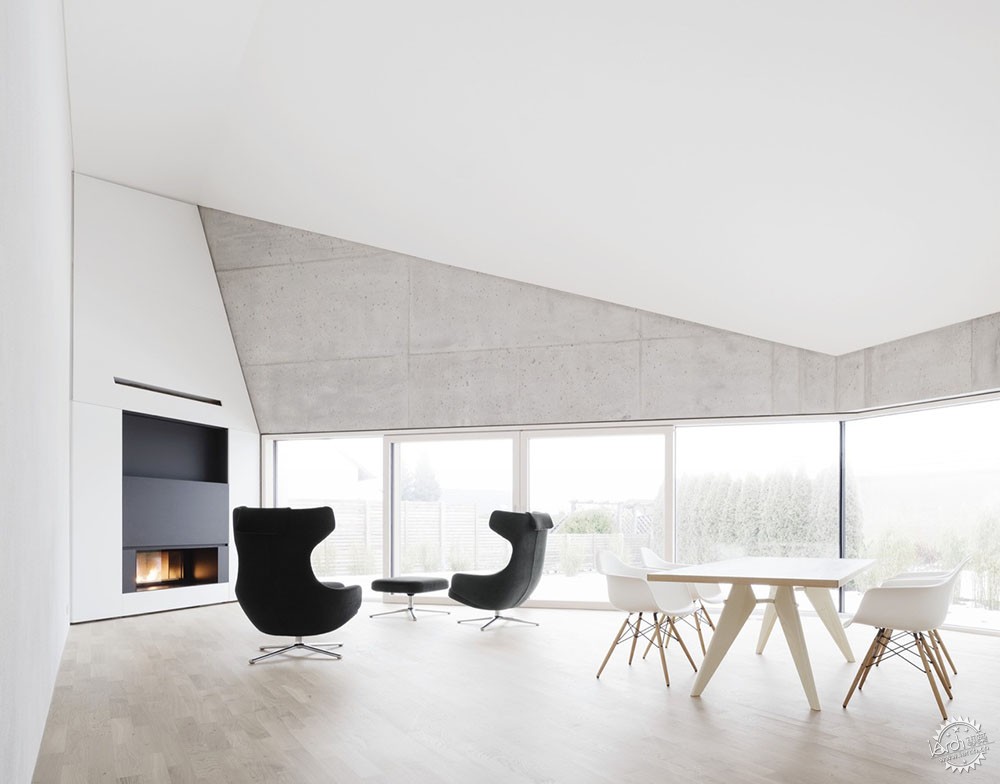

晶状体、混凝土?对,你没看错这确实是个住宅!第6张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第7张图片
一层平面图/Floor Plan Level 01

通过混凝土体块上大进深的入口进入房子后,首先会到达花房。在这里一个单跑楼梯可以直达住宅区的楼层。这个又窄又高的入口区域会渐变成一个向上开放但是以多褶皱屋顶限制的空间,当你穿越房间的时候,你会体会到空间的收缩和扩张,封闭和开放在不停的变化和交融。窗户洞口开设于50cm厚的混凝土墙体上,呈现出框景的效果。房子的所有房间均与晶体形态相关联,梯形的墙体布局形成了新的空间关系,另外,乙烯类向上倾斜的屋顶表面也成为住宅的特殊标志。孩子和父母的个人空间与起居室直接相连,并且占据相平行四边形的对角空间,将开放的楼层空间划分出厨房和餐厅两个区域,因此形成一个感性,紧凑氛围的居住空间。

Upon entering the house through its entrance cut deep into the concrete mass, you first reach the garden room. From here, a single-flight stair leads up to the residential level. The quite narrow and high entrance area morphs into a space that opens upward but is clearly bounded by the multiple folds of the roof form: as you move through the house, constriction and expansion, enclosure and openness enter into an exciting, constantly shifting dialogue. The window openings set horizontally into the 50 cm thick concrete shell create a framed view of the surrounding, gently undulating landscape. All the rooms of the house correlate with its crystalline form: the trapezoidal layout of the walls yields a diversity of new spatial relationships that have a special character induced by the upward-sloping ceiling surfaces. The individual rooms for the children and the parents lie directly adjacent to the living space and, as opposing parallelograms, divide the open floor plan into zones for the kitchen and the dining area. The result is a sensuous, atmospherically dense place of dwelling.

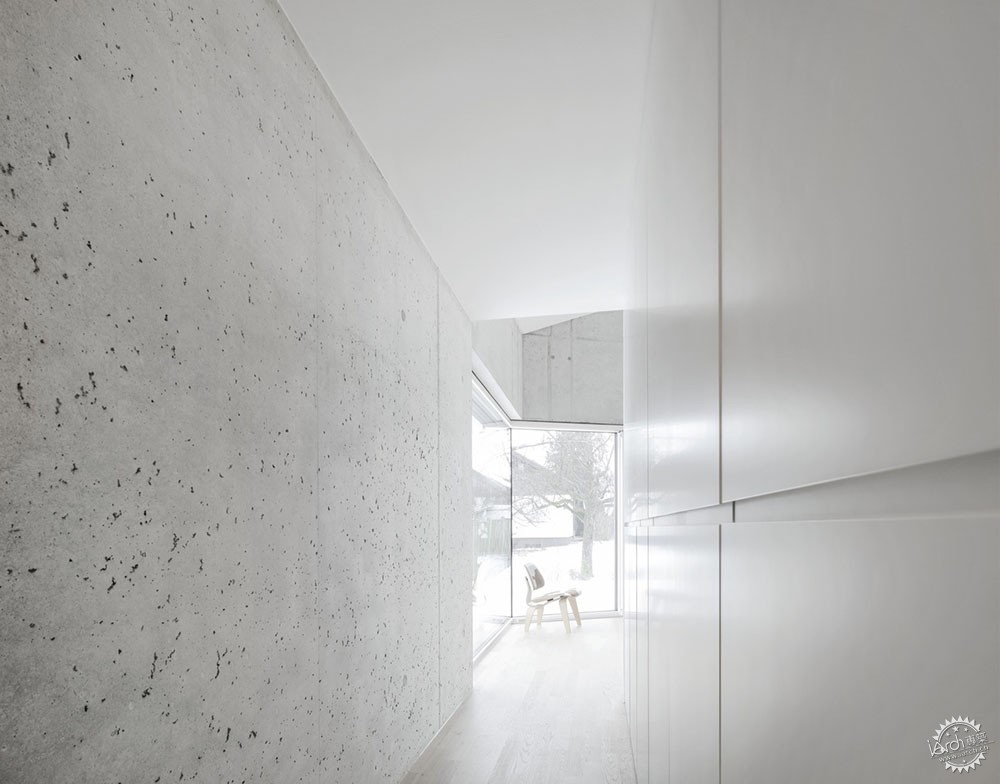

晶状体、混凝土?对,你没看错这确实是个住宅!第8张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第9张图片
剖面图/Section

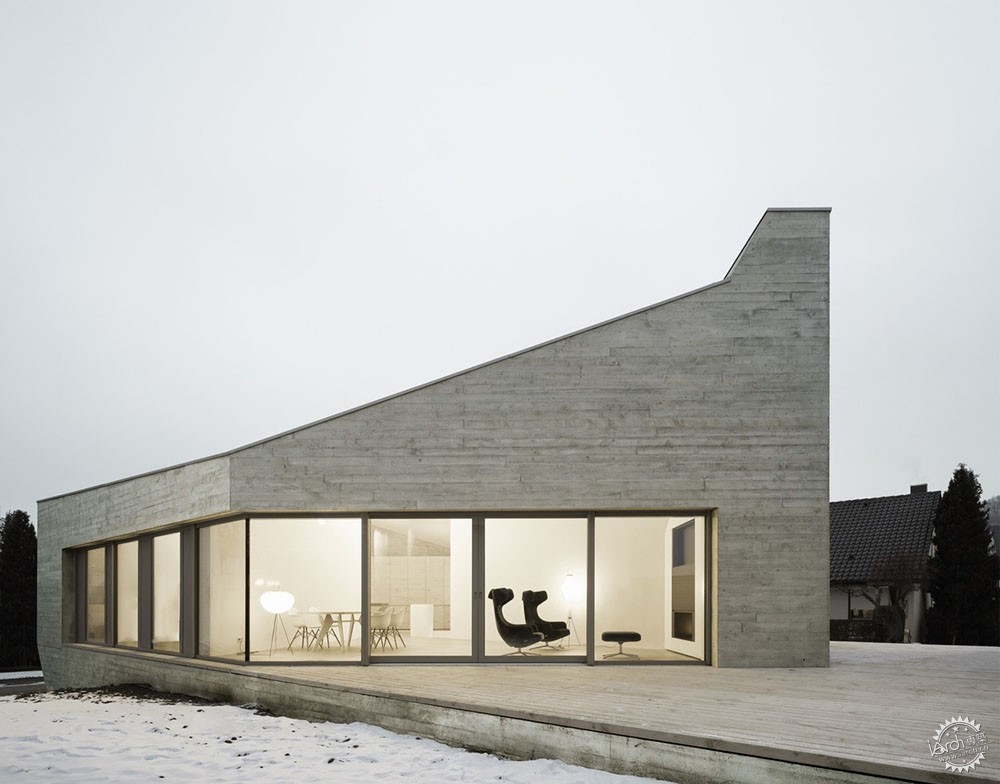

晶状体、混凝土?对,你没看错这确实是个住宅!第10张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第11张图片
© Brigida González

在它的简约性和坚固性方面,保温混凝土形成的单色巨大且结实的外壳决定了房屋内外质感。在外观上,粗糙的锯木板模板使得混凝土具有坚实,生动质感和保护壳板的外表。在内部,混凝土面层被特意设计成光滑柔软质感的表面并且与暖色调的有坚硬质感的橡木家具形成鲜明对比。

In its minimalism and robustness, the insulating concrete is a monochrome, massive shell that defines the essence of the house both inside and outside. Outside, thanks to the rough-sawn wooden board formwork, the concrete has the appearance of a solid, lively textured, and protective enclosure. Inside, the folded concrete surfaces are smooth by design and contrast with the warm hues of the solid oak fixtures.

晶状体、混凝土?对,你没看错这确实是个住宅!第12张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第13张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第14张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第15张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第16张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第17张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第18张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第19张图片
© Brigida González

晶状体、混凝土?对,你没看错这确实是个住宅!第20张图片
较低层平面图/Floor Plan Level -01

晶状体、混凝土?对,你没看错这确实是个住宅!第21张图片
平面图/Floor Plan

晶状体、混凝土?对,你没看错这确实是个住宅!第22张图片
剖面图/Section

建筑设计事务所:STEIMLE ARCHITEKTEN BDA
区位:德国,普利茨豪森
面积:376.0 m2
项目时间:2017年
摄影:Brigida González
制造商:Duravit, Liebherr, Hansgrohe, Iguzzini, Nimbus Group, Bulthaup

Architects: STEIMLE ARCHITEKTEN BDA
Location: 72124  Pliezhausen, Germany
Area: 376.0 m2
Project Year: 2017
Photographs: Brigida González
Manufacturers: Duravit, Liebherr, Hansgrohe, Iguzzini, Nimbus Group, Bulthaup
