House in Llano Grande

由专筑网Brick，韩平编译

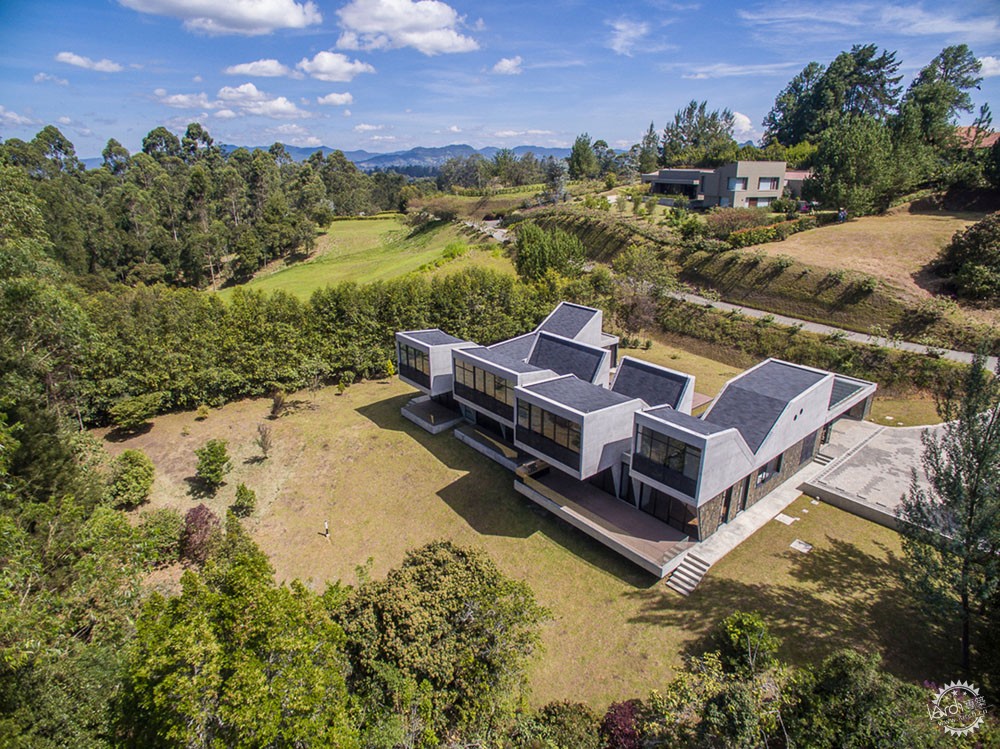

来自建筑事务所的描述。对于该住宅设计，我们提出了平行混凝土墙体系的方案。这个体系定义了四个体量，且横向连接项目的不同区域，并形成露天庭院。

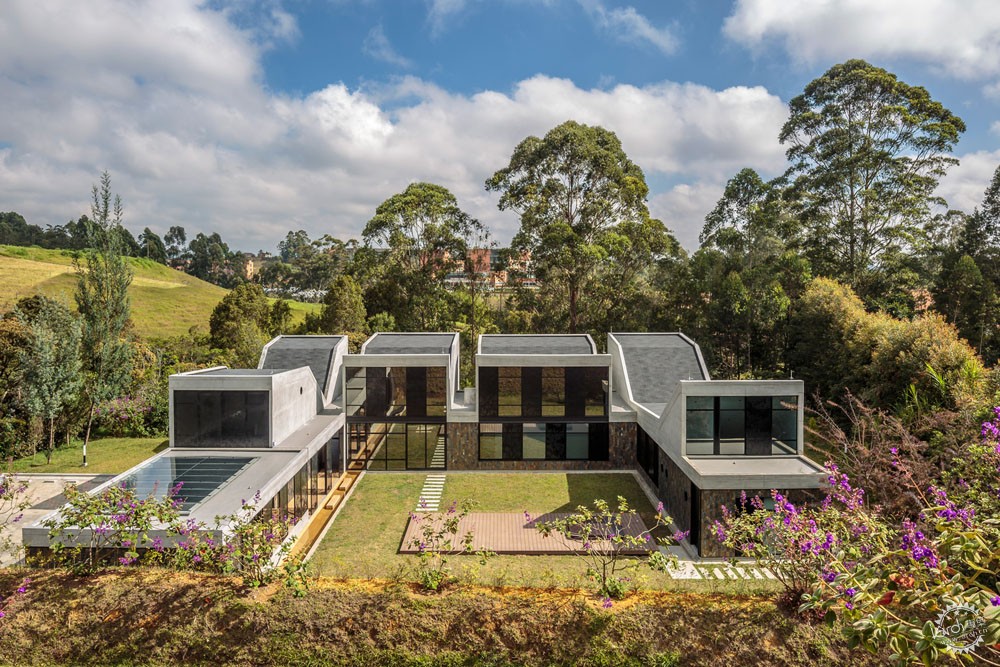

From the architect. For this house we proposed a system of parallel concrete walls which define four volumes connected transversally sheltering differentiated areas of the programme and configuring an open arrival patio.

© Alejandro Arango

这些平行平面部分升高，朝向外部原始森林，最大程度地开放一楼和二楼的空间。住宅的日常生活发生在庭院周围和室内之间，这里处处可以欣赏树林的风景。

In section these parallel planes gain height towards an exterior native forest to open the biggest amount of spaces of the first and second level towards it. The everyday life of the house takes place between activities surrounding the courtyard and interior activities which enjoy the presence of the forest.

© Alejandro Arango

所有卧室和社交区安置在基地平坦的地方，但是在朝向植被的区域有部分悬挑。设备区占据了场地后部平面上的酒吧的位置。

All the bedrooms and social areas are supported on the flat area of the plot but are suspended over a change in the topographic level which drops in the direction of the vegetation, and the service areas occupy bars rested on the flat surface at the back of the plot.

© Alejandro Arango

Ground Floor/底层平面图

住宅的最高部分像头部，能让人看到风景，敞向午后阳光来温暖室内空间。这所住宅仿若厚露石钢筋混凝土、黑瓷砖和当地毛石的汇集，木质装饰和穿孔金属板可以阻挡部分午后阳光并且连接整个建筑。建筑的一些方面如四合院、瞭望屋、一层房屋或两层房屋都结合在一起。

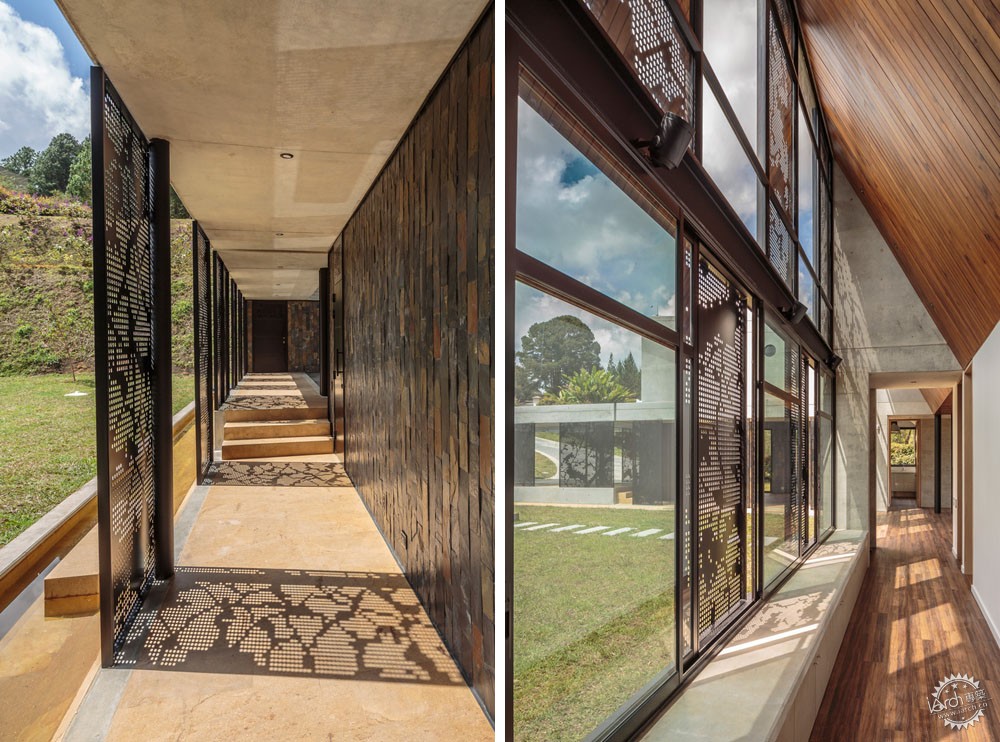

The highest parts of the house act like heads which allow to look out on to the scenery or open towards the afternoon sun to heat the interior. In this house which behaves like a thick perimeter, exposed reinforced concrete and tiles of dark and rustic stone from the area converge, wood finishings and perforated metal panels which filter the afternoon sun and articulate it. Aspects such as courtyard house, lookout house, one storey house or two floor house are combined.

© Alejandro Arango

四个独立楼梯间能出入卧室的两个私人夹层，一个位于客厅上方的悬浮式书房以及设备区。每个体量的顶端都设有半室外的景观露台。

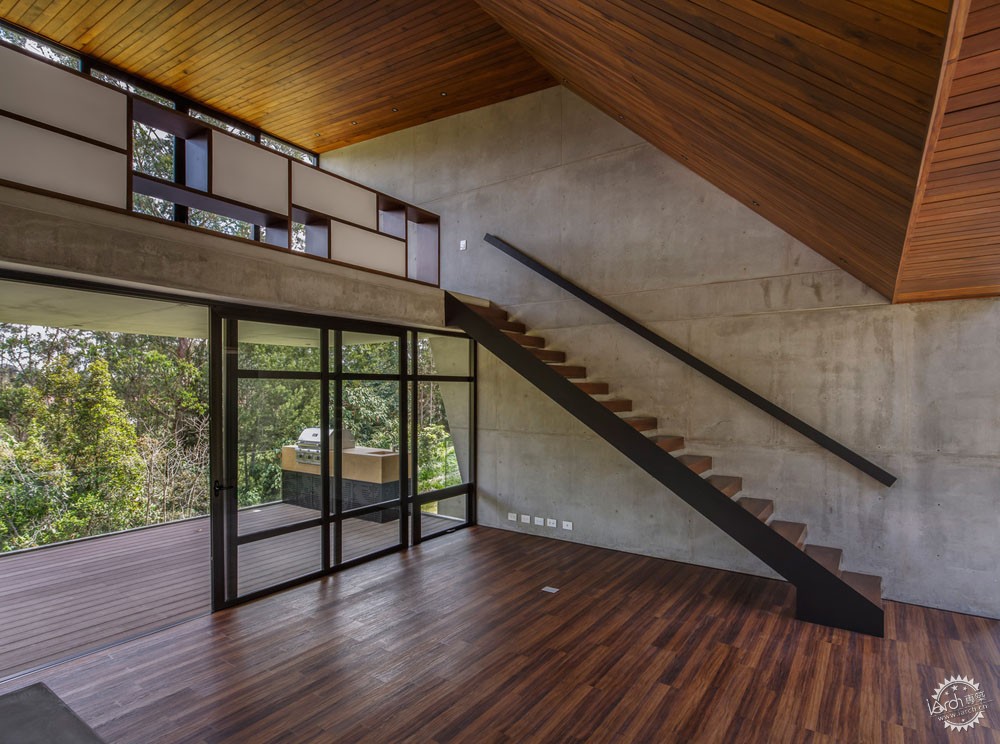

Four independent staircases give access to two private mezzanines in the bedrooms, a suspended library over the sitting room and to the service area. Each volume ends with a semi covered deck over the scenery.

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

© Alejandro Arango

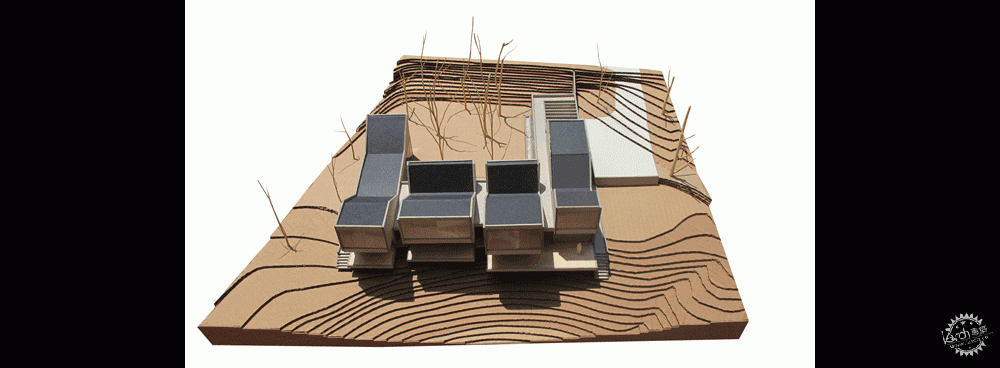

Model/模型

1st Floor Plan/一层平面图

Roof Plan/顶层平面图

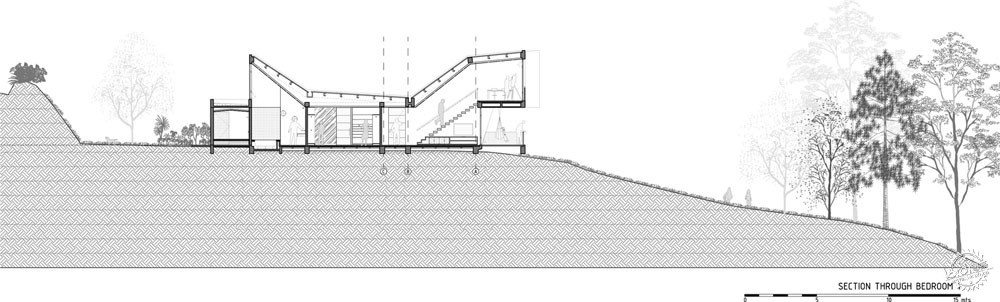

Section/剖面图

Section/剖面图

Section/剖面图

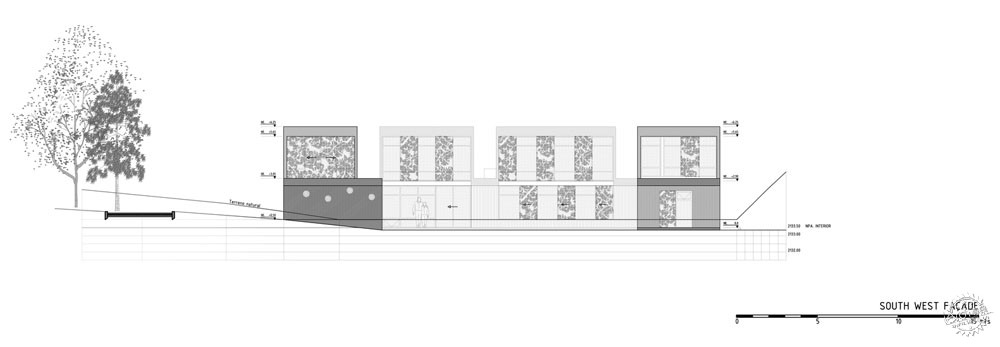

Elevation/立面图

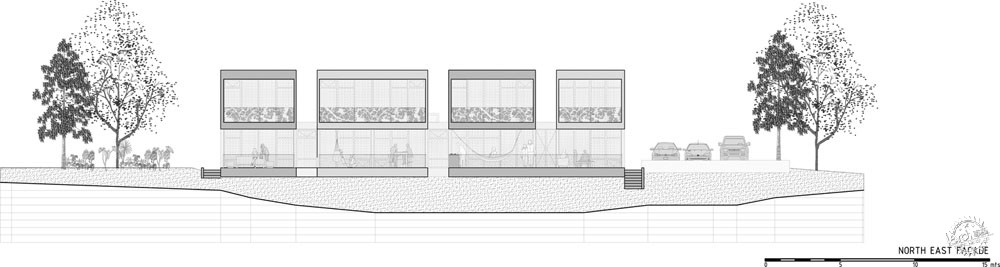

Elevation/立面图

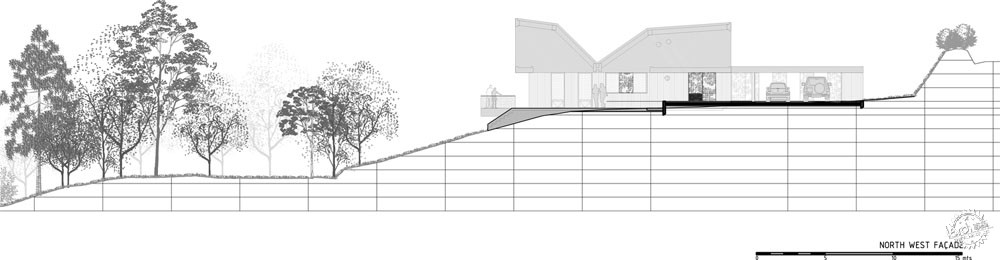

Elevation/立面图

Elevation/立面图

Isometric/等距

Isometric/等距

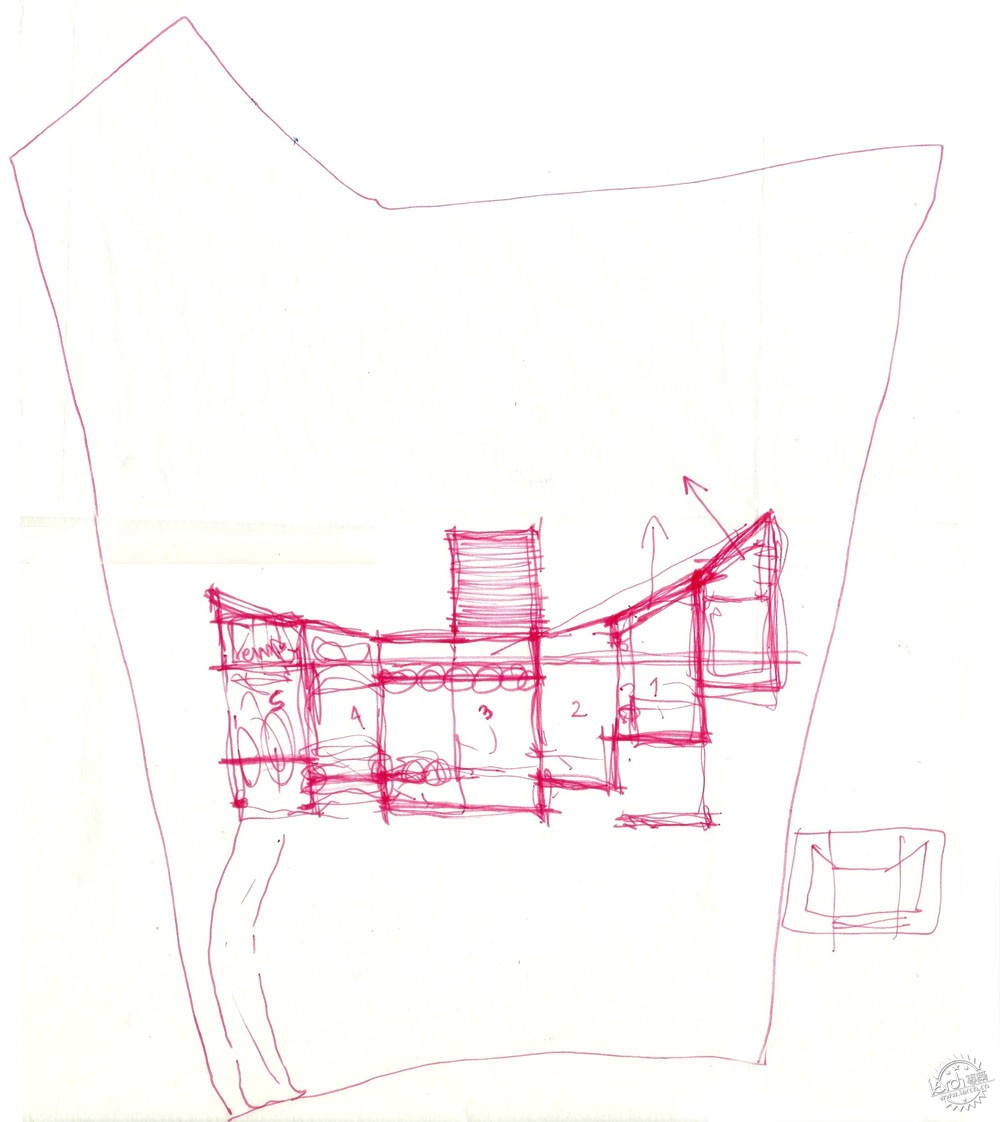

Sketch/草图

Sketch/草图

© Alejandro Arango

建筑设计：Plan:b arquitectos
项目位置：哥伦比亚，安蒂奥基亚，里奥内格罗
项目面积：500.0平方米
项目时间：2015年
摄影：Alejandro Arango
项目管理：Felipe Mesa + Federico Mesa
项目团队：Laura Kate Correa, Carlos Blanco, Daniel Tobón, Sara Restrepo
施工：VerónicaVásquez
单位造价：$2,800.000哥伦比亚比索
Ecosystem；Bosque montano / Montane forest
海拔：2080米
气温：12-26ºC
风向：东–西
委托方：Santiago Vélez + Marcela Restrepo

Architects: Plan:b arquitectos
Location: Rionegro, Rionegro, Antioquia,Colombia
Area: 500.0 sqm
Project Year: 2015
Photographs: Alejandro Arango
Project Manager: Felipe Mesa + Federico Mesa
Work team: Laura Kate Correa, Carlos Blanco, Daniel Tobón, Sara Restrepo
Construction: VerónicaVásquez
Sqm price: $2,800.000 (Colombian peso)
Ecosystem: Bosque montano / Montane forest
Elevation (above sea level): 2080 m
Temperature: 12-26ºC
Direction of wind: Este – Oeste / East – West
Client: Santiago Vélez + Marcela Restrepo
