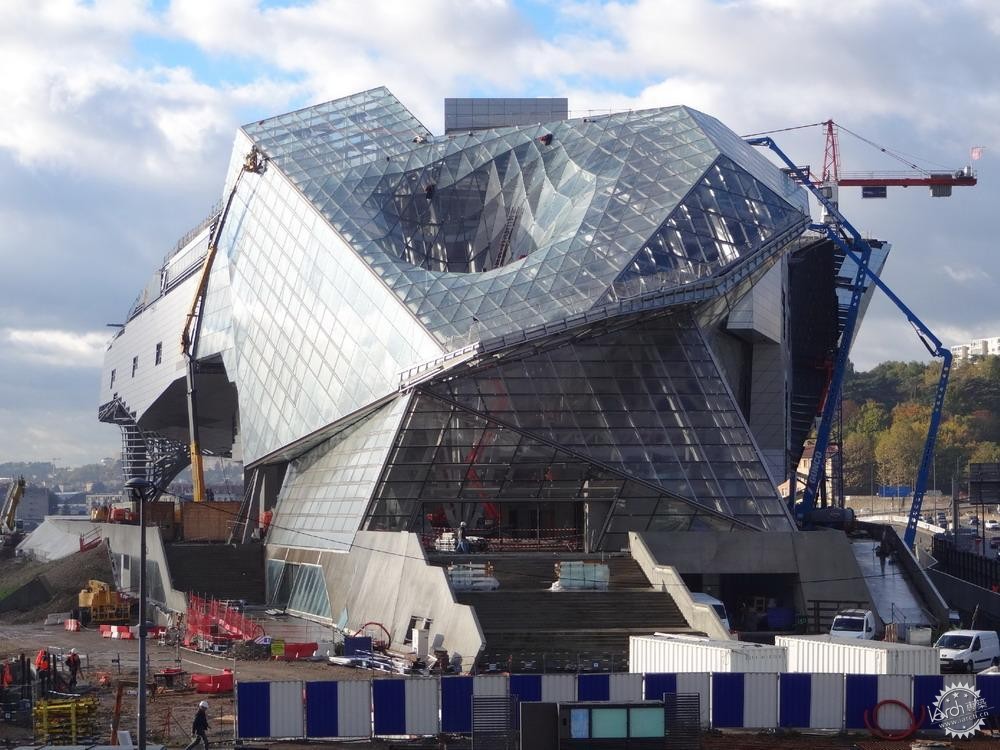

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第1张图片

© ISOCHROM.com

知识的晶云
       未来的社会是知识的社会。不过这种知识很难分为清晰的领域。
       创新生于融汇、生于模棱、生于叠加与杂糅。涉及未来的问题将在技术、生物和伦理之间的过渡领域中找到答案,而这正是汇流博物馆的中心思想。

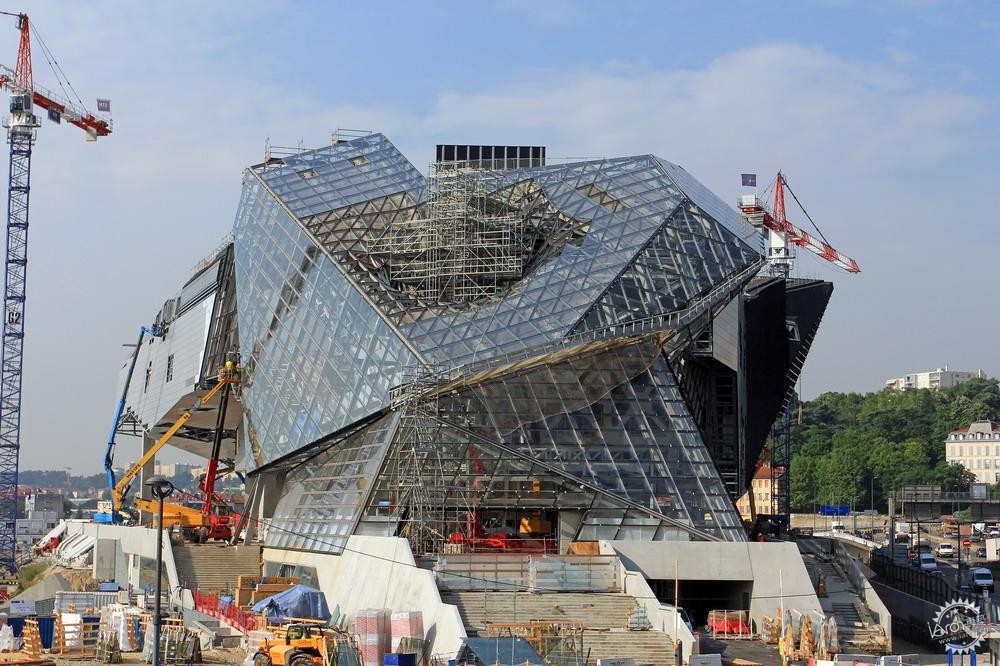

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第2张图片

© COOP HIMMELB(L)AU

       演化、穿插、变形、并发、分解、多变都会影响建筑,而组成新形式的不同体块通过交互、融合及演变决定了它最终的特征。

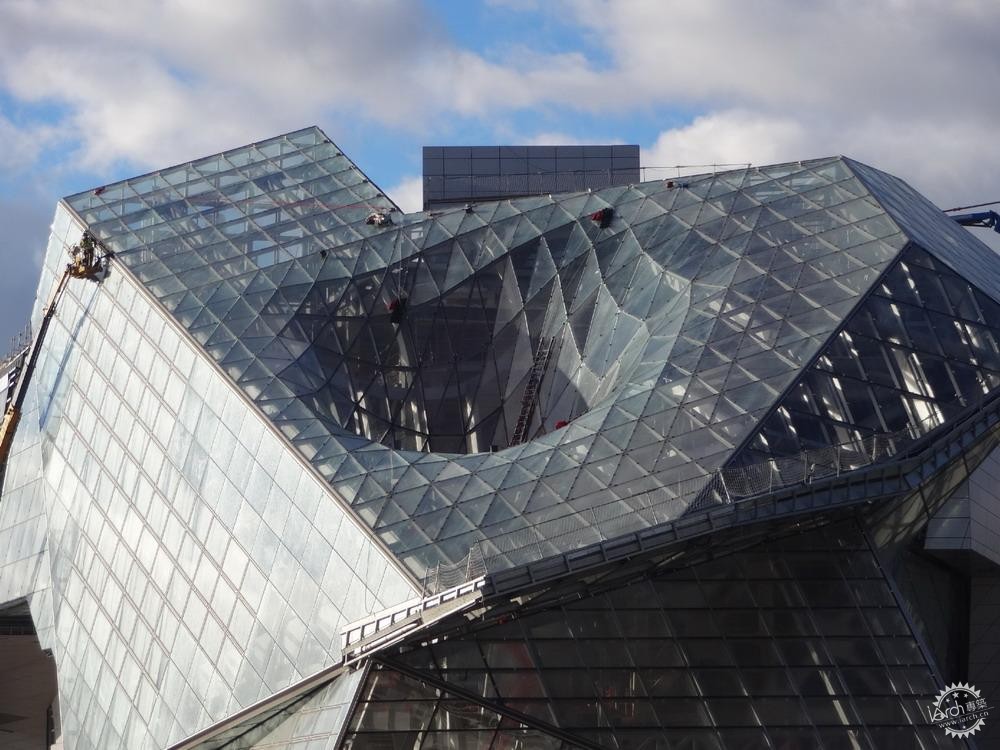

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第3张图片

© Hubert Canet, Balloïde Photo

       汇流博物馆并不以高知中产阶级特有的圣殿自居,而是分享我们时代知识的公共空间。

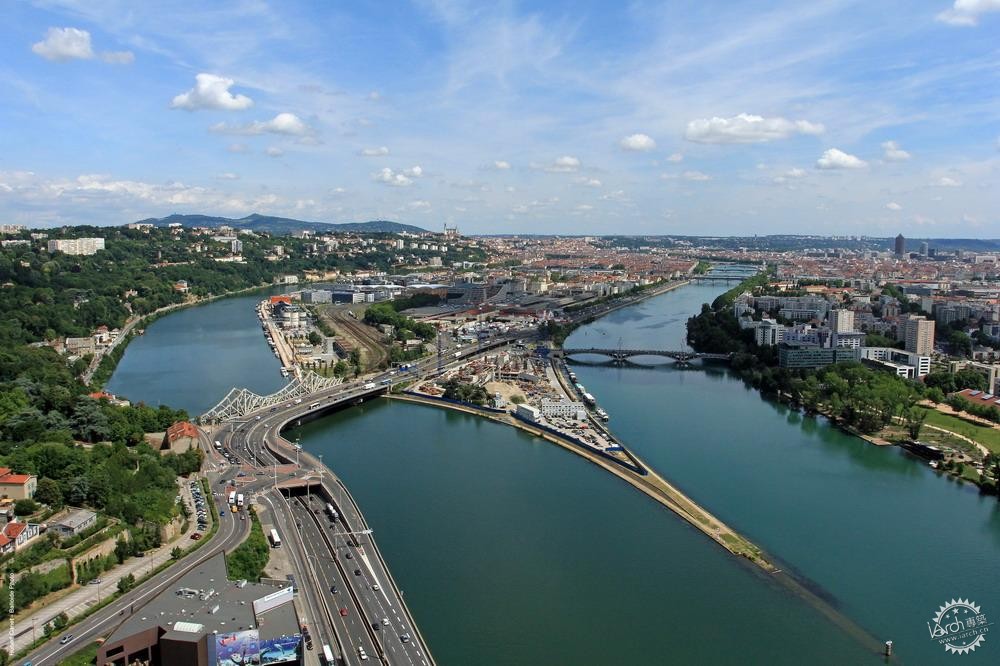

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第4张图片

© COOP HIMMELB(L)AU

       作为开放、积极的活动空间,它不但是一座博物馆,更是城市中的一个场所。这座建筑将博物馆与城市休闲空间的功能融为一体。
硬空间-软空间
       两个相互交织的建筑单元源于与接口极为相似的场地形状。

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第5张图片

© COOP HIMMELB(L)AU

       面向城市高起的晶体是城市论坛和观众入口。其明确的造型是日常世界的象征。与之相对的是隐藏着未来知识的云体;这是一个拥有暗流和无数变化的软空间。

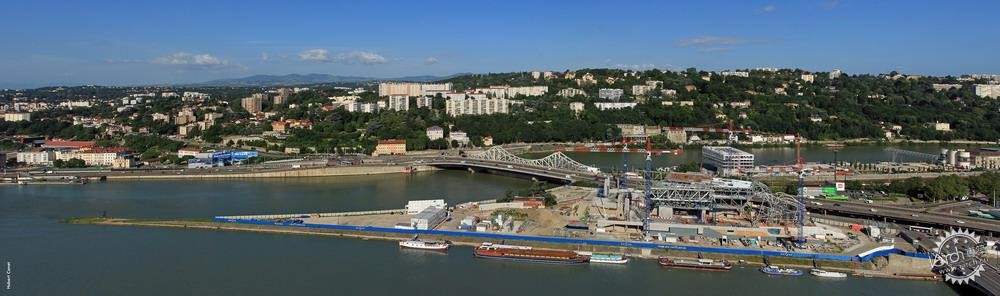

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第6张图片

© COOP HIMMELB(L)AU

       在汇流博物馆中,现在与未来、已知与未知成了试图“激发公众好奇心”的空间构成。由岛上南端的公园延伸而来,一个新的城市空间自成一体;以斜坡和地面构成的景观打通了室内和室外,形成富有动感的空间序列。

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第7张图片

© Hubert Canet, Balloïde Photo

       随之而来的是各座展厅交替变化的空间结构。封闭的黑匣子和免费展区在两层高的空间中交替出现。这座建筑可以根据功能要求随意变化。

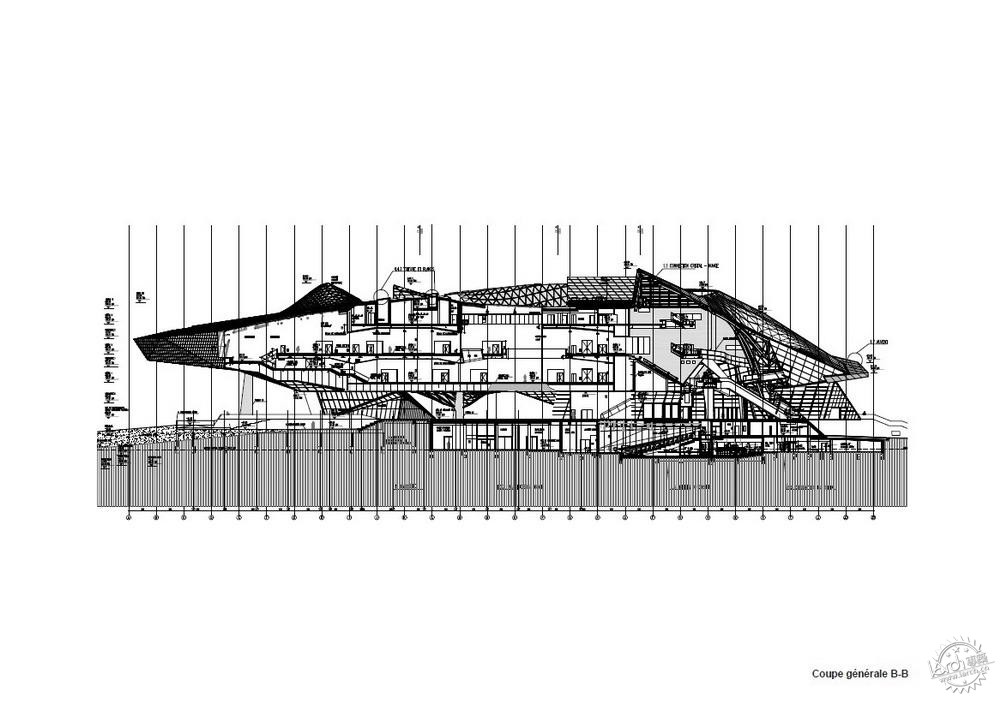

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第8张图片

© Hubert Canet, Balloïde Photo

       新创造的永久城市活动让里昂能在地区乃至全球背景下找到完美的定位。

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第9张图片

© COOP HIMMELB(L)AU

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第10张图片

© Hubert Canet, Balloïde Photo

法国里昂汇流博物馆/ 蓝天组COOP HIMMELB(L)AU第11张图片

© COOP HIMMELB(L)AU


项目信息:
团队
设计事务所:COOP HIMMELB(L)AU
Wolf D. Prix  & Partner ZT GmbH
主设计师:Mr. Wolf: D. Prix.
项目合伙人:Markus Prossnigg
项目建筑师: Mona Bayr, Angus Schoenberger
项目协调工程师:Thomas Margaretha, Peter Grell
维也纳项目团队:Project Team Vienna: Christopher Beccone, Guy Bébié, Lorenz Bürgi, Wolfgang Fiel, Kai Hellat, Robert Haranza, Alex Jackson, Georg Kolmayr, Daniel Kerbler, Lucas Kulnig, Andreas Mieling, Marianna Milioni, Andrea Schöning, Mario Schwary, Markus Schwarz, Oliver Tessmann, Dionicio Valdez, Philipp Vogt, Markus Wings, Tom Wiscombe, Christoph Ziegler, Jutta Schädler
里昂项目团队: Francois Texier, Philippe Folliasson, Etienne Champenois, Alexandru Gheorghe, Niels Hiller, Emanuele Iacono, Pierre-Yves Six
委托方:Département du Rhône, Lyon, France, Represented by SERL, Lyon, France

本地设计师
项目规划:法国里昂Patriarche & Co, Chambéry/Lyon, France
项目执行:法国里昂MESA Workshop
项目管理:法国里昂Chabanne & Partenaires
里昂施工测量:Jean Pierre Debray

费用核算
法国巴黎Mazet & Associés
法国里昂CUBIC
结构工程(设计):B+G Ingenieure, Bollinger und Grohmann GmbH, Frankfurt, Germany
结构工程(执行):法国里昂Coyne et Bellier
法国里尔VS_A
暖通空调:ITEE-Fluides, Arnas, France
消防安全顾问:Cabinet Casso & Cie, Paris, France
声学设计:Cabinet Lamoureux, Paris, France
媒体顾问:Cabinet Labeyrie, Paris, France
照明顾问:Har Hollands, Eindhoven, Netherlands
园林设计:EGIS aménagement, Lyon, France

年份表
获奖时间(第一名):2001
规划起始时间:2002
工程起始时间:2006.10
预计竣工时间:2014

项目数据
占地面积:20975平米
楼层净面积:26700平米
建筑总面积:46476平米
建筑造价:EUR 150M
游客参观量:每年50万参观者


* 本文由COOP HIMMELB(L)AU –蓝天组建筑设计事务所提供稿件,转载请注明出处。*

Musée des Confluences, Lyon, France (2001/2010-2014)/蓝天组COOP HIMMELB(L)AU

Crystal Cloud of Knowledge
The future society will be a society of knowledge. However this knowledge can hardly be split into clearly defined fields.
Innovations develop within interspaces, within indistinctness, within the overlapping and hybridising. Questions regarding the future will be decided within transitional fields situated between technology, biology and ethics that are the central themes of the Musée des Confluences.
Mutations of form, penetrations, deformations, simultaneities, breakdowns and variabilities have an effect on architecture. The resulting architecture is characterised by the interactions, the fusion and mutation of different entities constituting a new shape.
The Musée des Confluences does not consider itself as an exclusive temple for the intellectual bourgeoisie but as a public place providing access to the knowledge of our age. Stimulating a direct and active use, it is not only a museum site but also a venue in town. The architecture hybridises the typology of a museum with the typology of an urban leisure space.
Hard Space – Soft Space
The concept of two complexly connected architectural units are a result of the striking interface-like situation of the building site.
The crystal rising towards the side of the town is conceived as an urban forum and entrance hall for visitors. Its shape that can be read clearly stands for the everyday world. In contrast to this the cloud hides the knowledge about the future; it is a soft space of hidden streams and countless transitions.
Within the Musée des Confluences the present and the future, the known and the still unknown are conceived as a spatial arrangement trying to “spur public curiosity”. As an extension of the park located on the Southern top of the island a new urban space formulates itself; a landscape consisting of ramps and surfaces merging the inside and the outside and resulting in a dynamic sequence of spatial events.
This movement is also followed by the alternating spatial structure of the exhibition halls. Closed Black Boxes and free exhibition areas alternate by exploiting the double room height of two levels. The architecture is as changeable as the content entrusted.
The idea of the permanent reinvention of an urban event enables Lyon to perfectly position itself within a regional as well as within a global context.


Project Credits:
Team
Planning:
COOP HIMMELB(L)AU
Wolf D. Prix  & Partner ZT GmbH
Design Principal: Mr. Wolf: D. Prix.
Project Partner: Markus Prossnigg
Project Architects: Mona Bayr, Angus Schoenberger
Project Coordination: Thomas Margaretha, Peter Grell
Project Team Vienna: Christopher Beccone, Guy Bébié, Lorenz Bürgi, Wolfgang Fiel, Kai Hellat, Robert Haranza, Alex Jackson, Georg Kolmayr, Daniel Kerbler, Lucas Kulnig, Andreas Mieling, Marianna Milioni, Andrea Schöning, Mario Schwary, Markus Schwarz, Oliver Tessmann, Dionicio Valdez, Philipp Vogt, Markus Wings, Tom Wiscombe, Christoph Ziegler, Jutta Schädler
Project Team Lyon: Francois Texier, Philippe Folliasson, Etienne Champenois, Alexandru Gheorghe, Niels Hiller, Emanuele Iacono, Pierre-Yves Six

Client
Département du Rhône, Lyon, France
Represented by SERL, Lyon, France

Local Architect
Planning: Patriarche & Co, Chambéry/Lyon, France
Execution: MESA Workshop, Lyon, France
Project Managerment: Chabanne & Partenaires, Lyon, France
Construction Survey Lyon: Jean Pierre Debray

Costs
Mazet & Associés, Paris, France
CUBIC, Lyon, France
Structural Engineering (Design): B+G Ingenieure, Bollinger und Grohmann GmbH, Frankfurt, Germany
Structural Engineering (Executive):
Coyne et Bellier, Lyon, France
VS_A, Lille, France
HVAC: ITEE-Fluides, Arnas, France
Security Fire Consultation: Cabinet Casso & Cie, Paris, France
Acoustics: Cabinet Lamoureux, Paris, France
Media Consulation: Cabinet Labeyrie, Paris, France
Lighting Consultation: Har Hollands, Eindhoven, Netherlands
Landscape Design: EGIS aménagement, Lyon, France

Chronology
Competition (1st Prize): 2001
Start of Planning: 2002
Start of Construction: 10/2006
Scheduled Completion: 2014

Project Data
Site Area: 20,975 m2
Net Floor Area: 26,700 m2
Gross Floor Area: 46,476 m2
Building Costs: EUR 150 Mio
Frequence of Visitors: 500.000 visitors per year


*Appreciation towards COOP HIMMELB(L)AU for providing the project description.*
