New Eden project video by Grimshaw explores the world's biggest greenhouse

由专筑网Yumi,杨帆编译

在记录格里姆肖一些重要作品的电影系列的第四个故事片中,我们看到了英国最受欢迎的旅游景点——有着独特外观的伊甸园项目。项目位于康沃尔,它包含一个序列的八个相互联系的穹顶,占地2.2公顷,将潮湿的热带和暖温带地区包裹起来。

In the fourth feature of a film series documenting some of Grimshaw’s most significant work, we take an exclusive look at one of the UK’s most popular visitor attractions — the Eden project.Located in Cornwall, the design comprises a sequence of eight inter-linked geodesic domes, covering 2.2 hectares and encapsulating humid tropic and warm temperate regions.

新伊甸园项目——探索世界上最大的温室/ Grimshaw第1张图片

image © hufton + crow

生物群落的覆盖层是三层枕头状的ETFE薄膜,它有着最大的表面积和最小的周长。“在空间和材料上,设计生物群落是一种高效的训练,”格雷肖姆解释说。“结构上,每个穹顶附着在两层六边形-三角形-六边形的空间框架上。框架的效率取决于几何形状的组成部分:钢管和接头是轻质的,比较小且容易运输。”

The biomes’ cladding panels are triple-layered pillows of ETFE foil with maximum surface area and minimum perimeter detailing. ‘Designing the biomes was an exercise in efficiency, both of space and material,’explains Grimshaw. ‘Structurally, each dome is a hex-tri-hex space frame reliant on two layers. The efficiency of the frame relies on the components of the geometric shapes: steel tubes and joints that are light, relatively small and easily transportable.’

新伊甸园项目——探索世界上最大的温室/ Grimshaw第2张图片

image © peter cook / view

巨大、轻质、跨度清晰的结构位于之前的采石场内,部分灵感来源于Buckminster Fuller的网格穹顶设计。生物群落在第一年开放时接纳了约两百万的游客,这使得伦敦之外的伊甸园项目已经成为了英国的第二大旅游胜地。

Set within a former quarry, the enormous, yet lightweight, clear-span structures were partially inspired by Buckminster Fuller’s geodesic designs. The biomes received almost two million visitors in their first year of opening, with the Eden project now the UK’s second most visited tourist destination outside London.

新伊甸园项目——探索世界上最大的温室/ Grimshaw第3张图片

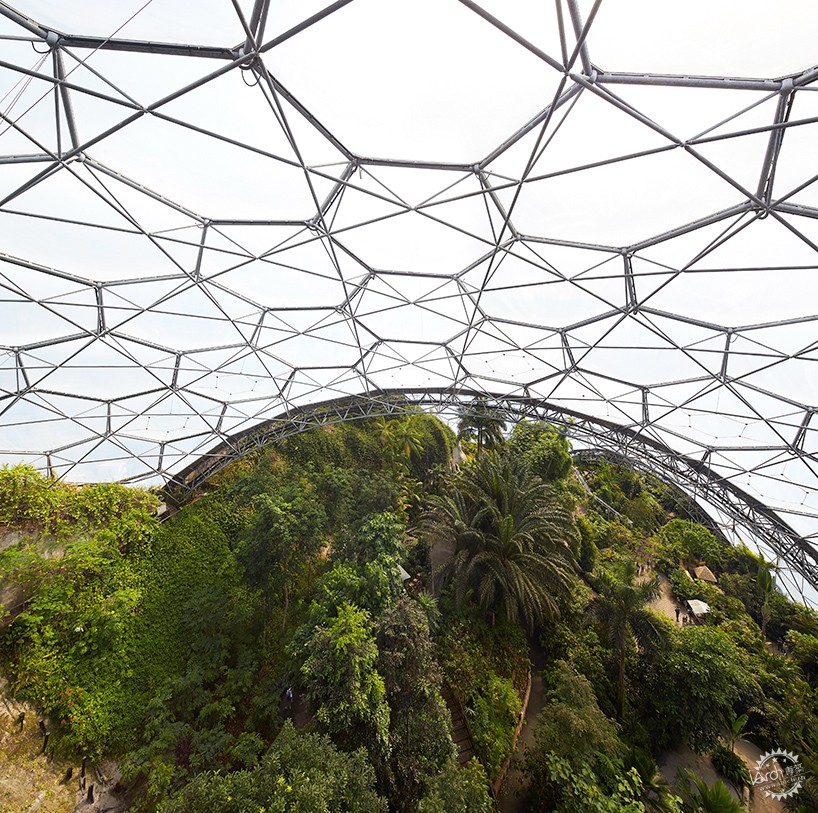

这些结构包裹着广阔的热带和暖温带地区/The structures encapsulate vast humid tropic and warm temperate regions. image © hufton + crow

新伊甸园项目——探索世界上最大的温室/ Grimshaw第4张图片

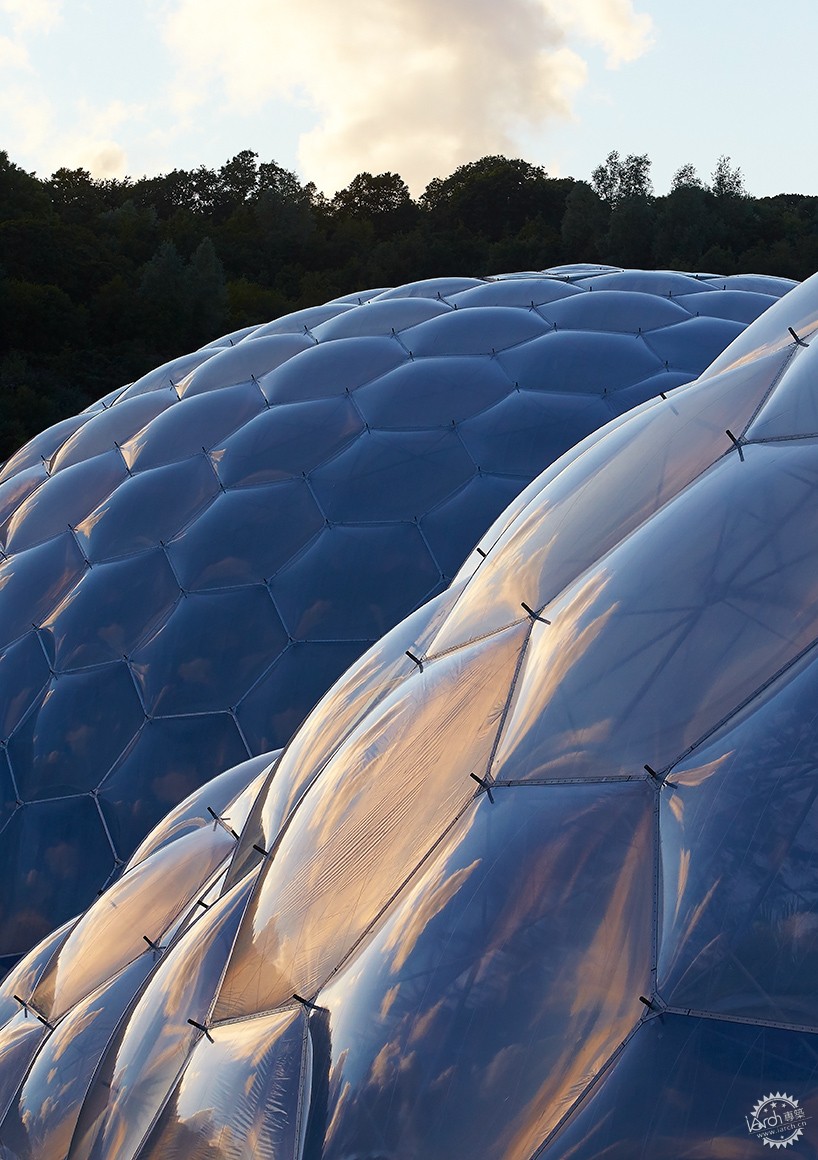

覆盖层是三层枕头状的ETFE膜/The cladding panels are triple-layered pillows of ETFE. image © hufton + crow

新伊甸园项目——探索世界上最大的温室/ Grimshaw第5张图片

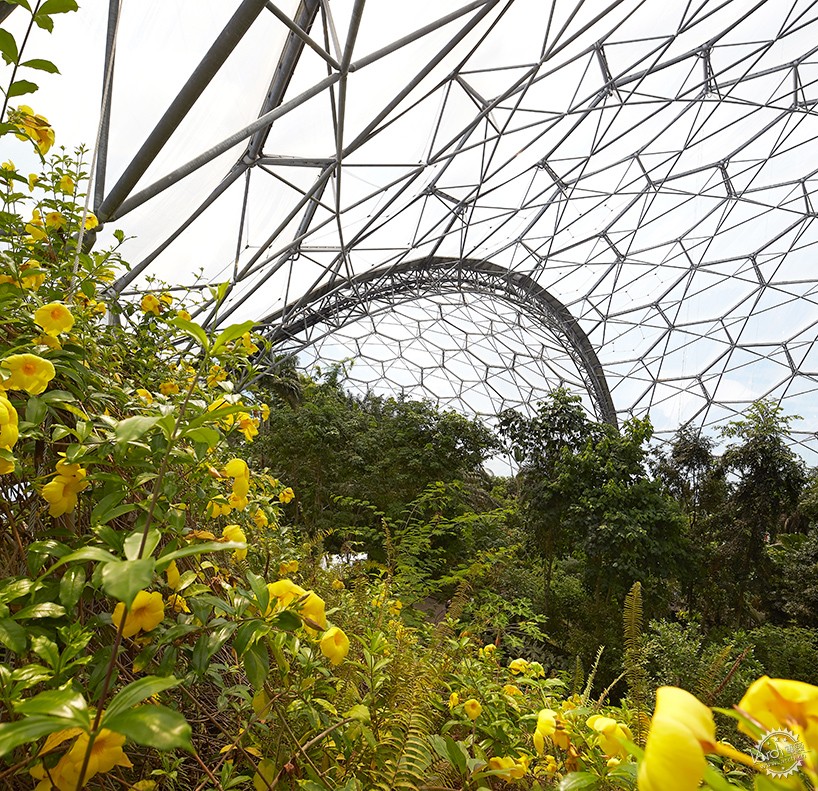

轻质结构部分的灵感来源于Buckminster Fuller网格穹顶设计/The lightweight structures were partially inspired by Buckminster Fuller’s geodesic designs. image © hufton + crow

新伊甸园项目——探索世界上最大的温室/ Grimshaw第6张图片

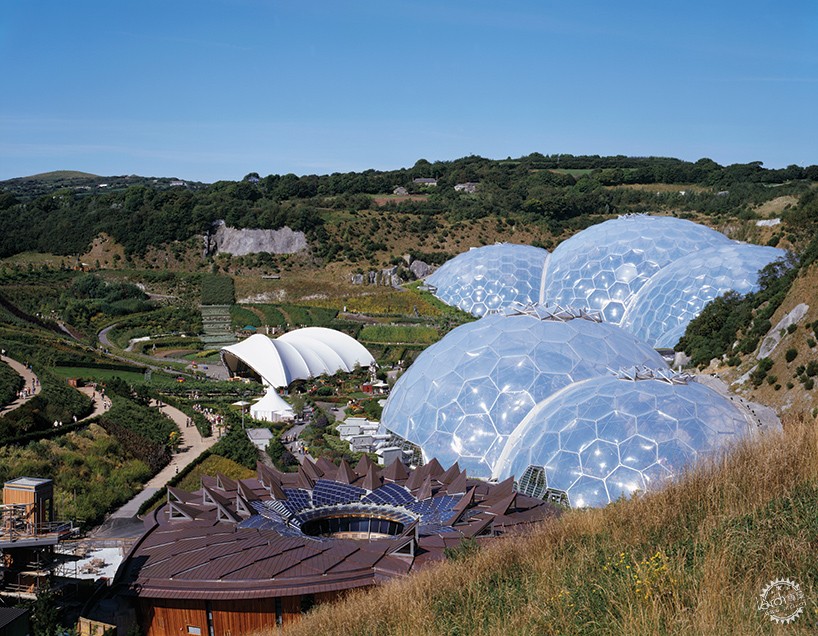

在第一年开放时,生物群落接纳了几乎两百万的游客/The biomes received almost two million visitors in their first year of opening. image © hufton + crow

新伊甸园项目——探索世界上最大的温室/ Grimshaw第7张图片

像泡泡一样,表皮自然地适应不平坦的地形/Like bubbles, the panels naturally adapt to the uneven topography. image © hufton + crow

新伊甸园项目——探索世界上最大的温室/ Grimshaw第8张图片

伊甸园项目的生物群落于2001年开放/The biomes at the Eden project opened in 2001. image © hufton + crow

新伊甸园项目——探索世界上最大的温室/ Grimshaw第9张图片

image © grimshaw

新伊甸园项目——探索世界上最大的温室/ Grimshaw第10张图片

image © grimshaw

新伊甸园项目——探索世界上最大的温室/ Grimshaw第11张图片

image © grimshaw

新伊甸园项目——探索世界上最大的温室/ Grimshaw第12张图片

image © grimshaw


项目信息:
位置:英国,康沃尔
面积:23000平方米/ 247570平方英尺
状态:2001完成

Project Info:
Location: Cornwall, UK
Client: Eden project limited
Area: 23,000 Sqm / 247,570 Sqf
Status:completed in 2001
