漂浮的屋顶/ Amitzi Architects第1张图片

House of the Floating Roof

由专筑网Brick,韩平编译

来自建筑事务所的描述。这座房屋位于一个密集的小区,为有3个孩子的家庭设计,预算有限。

From the architect. The house was designed for a family with 3 children and a modest budget, in a dense neighborhood.

漂浮的屋顶/ Amitzi Architects第2张图片
© Uzi Porat

公共空间敞向后花园,卧室朝北面向街道。

The public spaces open onto the back garden to the south, and the bedrooms face the street to the north.

漂浮的屋顶/ Amitzi Architects第3张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第4张图片

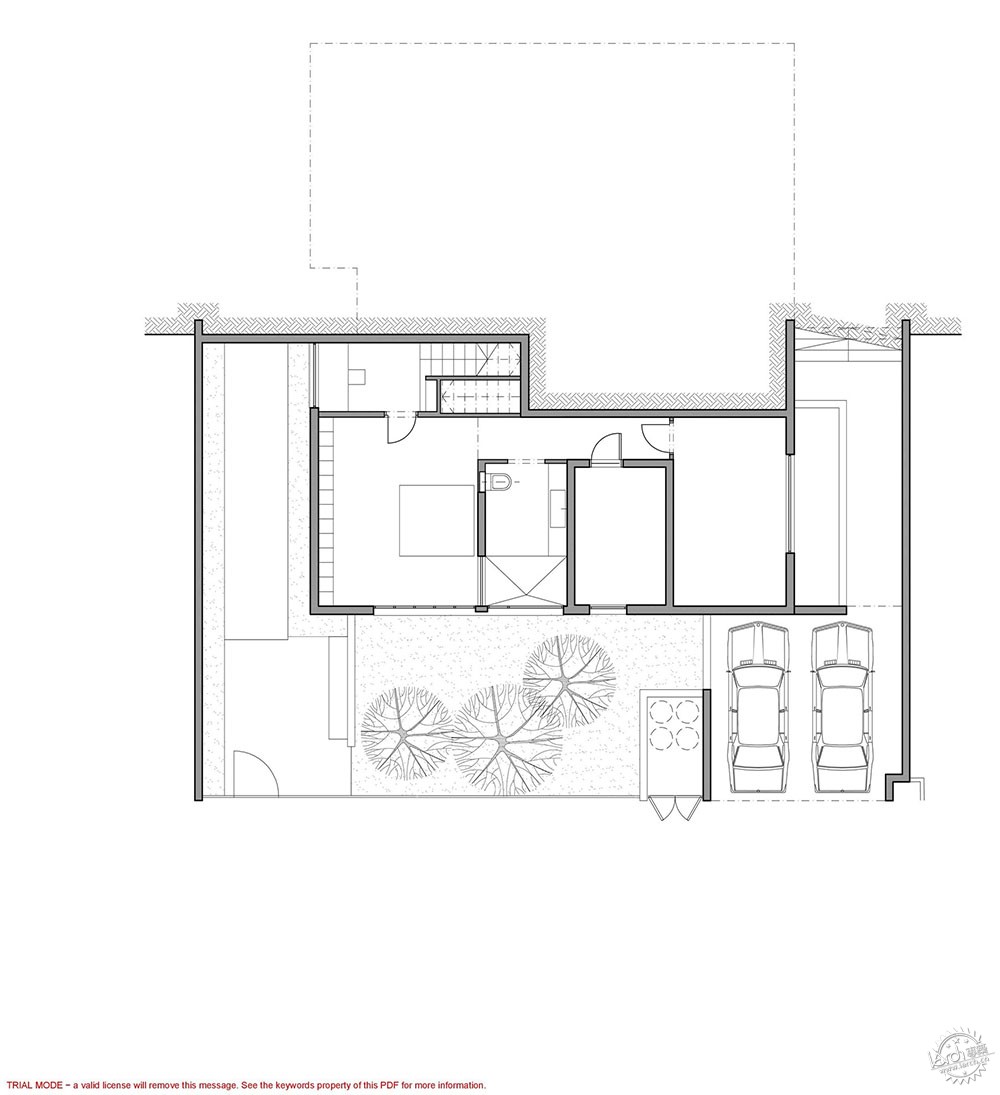

Floor Plan/平面图

漂浮的屋顶/ Amitzi Architects第5张图片
Section/剖面图

从剖面上看,建筑是错层的:主卧室部分在地下,但是明亮舒适。儿童卧室直接堆叠在主卧室上面,因此被抬高并脱离街面。公共区在一层的夹层,所以楼层高度是一层半,几乎高4米。

The section is split-level: The master bedroom is partially submerged in the ground, yet well-lit and cosy. The childrens' bedrooms are stacked directly on top of it and are thus elevated and seperated from street level. The public area is on the mezzanine – ground floor – which results in a floor height of one storey and a half– almost 4 meters.

漂浮的屋顶/ Amitzi Architects第6张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第7张图片
© Uzi Porat

临街立面是朴实的,低于邻近的房子,只有进入房屋才意外发现室内高一层半。露石混凝土天花板利用钢柱浮在围墙上方60厘米。由此产生的天窗能瞥见外面,并且提供充足的自然光线。天花板向外挑出以便阻止太阳的热量和眩光,并且阻挡邻近的更高的房屋的视线。在建造期间就将无框玻璃板插入天花板得U形槽,由此来制作天窗。为了保护隐私,侧墙没有窗户,客厅只敞向后花园。

The street facade is modest and lower than the adjacent houses, and the lofty, one-and-a-half storey high interior is unexpectedly revealed only when entering the house. The exposed concrete ceiling floats 60 centimeters above the peripheral walls using steel columns. The resulting clerestory windows provide glimpses to the outside and ample natural light. The ceiling overhangs outwards to block the sun's heat and glare and prevent views from the adjacent, higher houses. The clerestory windows are executed with frameless glass panes inserted into U-profiles set into the ceiling during the casting. To maintain privacy, the side walls are windowless, and the living room opens only towards the back garden

漂浮的屋顶/ Amitzi Architects第8张图片
© Uzi Porat

材料是当地很简单且典型的:露石混凝土天花板,白粉墙和橡木地板。入口通道是混凝土的,后花园有松木甲板。

Materials are simple and typical to the area: exposed concrete ceiling, white-washed walls and oak floors. The approach path is combed concrete and the back garden holds a pine-wood deck

漂浮的屋顶/ Amitzi Architects第9张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第10张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第11张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第12张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第13张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第14张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第15张图片
© Uzi Porat

漂浮的屋顶/ Amitzi Architects第16张图片

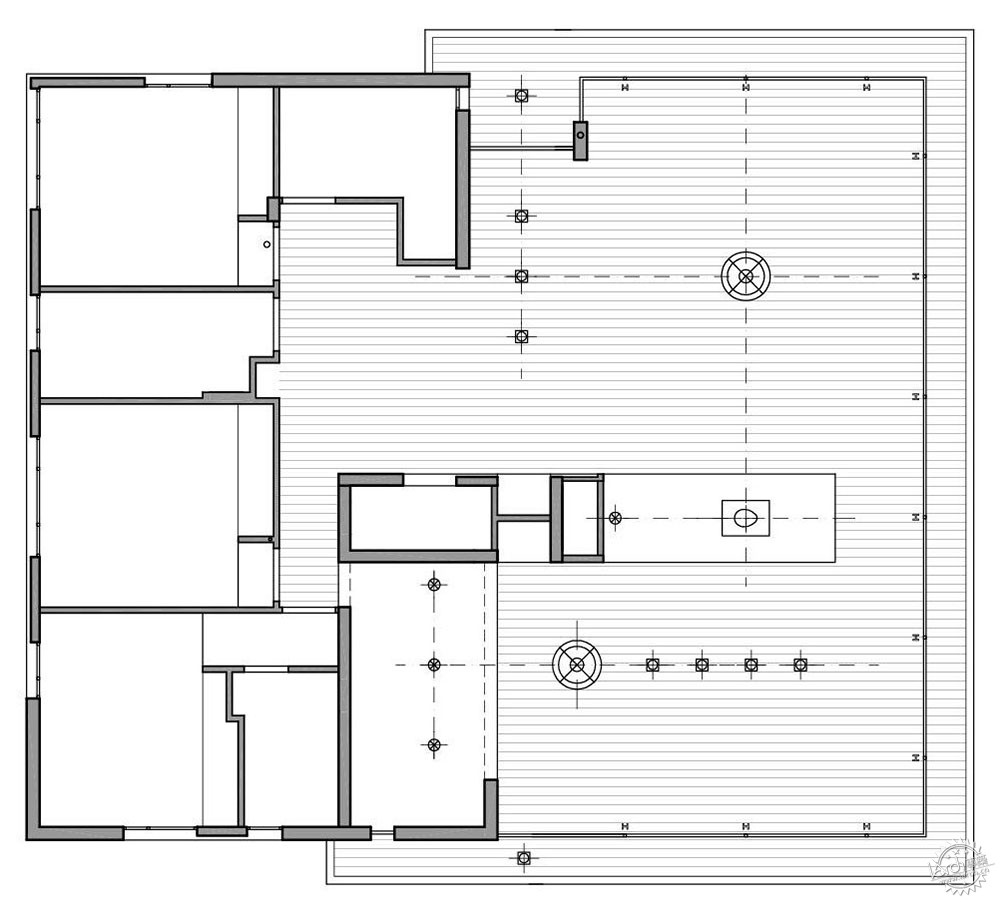

Floor Plan/平面图

漂浮的屋顶/ Amitzi Architects第17张图片
Floor Plan/平面图

漂浮的屋顶/ Amitzi Architects第18张图片
Detail/细节

建筑设计:Amitzi Architects
项目位置:以色列,Bnei Dror
结构工程:Doron Tweg
项目面积:300.0平方米
项目时间:2011年
摄影:Uzi Porat

Architects: Amitzi Architects
Location: Bnei Dror, Israel
Structural Engineer: Doron Tweg
Area: 300.0 sqm
Project Year: 2011
Photographs: Uzi Porat
