摩尔山住宅/ Lenschow & Pihlmann第1张图片


House at Mols Hills

由专筑网韩平,杨帆编译

来自建筑事务所的描述:与丹麦大陆海岸的建筑结构相同,这栋住宅也以四个小房子围合成中心的庭院作为建筑的基本框架。住宅的外观谦逊地与周围的环境相贴合,甚至有点内敛,但是当你进入庭院就会看到用温暖的松木装饰的开放的室内空间。玻璃门和移动隔板保证了住宅和庭院间视觉的连续性,也提供了不受阻挡且清晰可见的海湾景观。

From the architect. Four small houses enclosing a central courtyard is the basic frame like structure for this summer residence by the shore of mainland Denmark. The exterior of the house is modest- even slightly introverted - but entering the courtyard reveals a spatially open house
with a warm pinewood interior. Glass doors and sliding partitions ensures visual contact between rooms across the courtyard and also provides a clear and unhindered view over the bay.

摩尔山住宅/ Lenschow & Pihlmann第2张图片

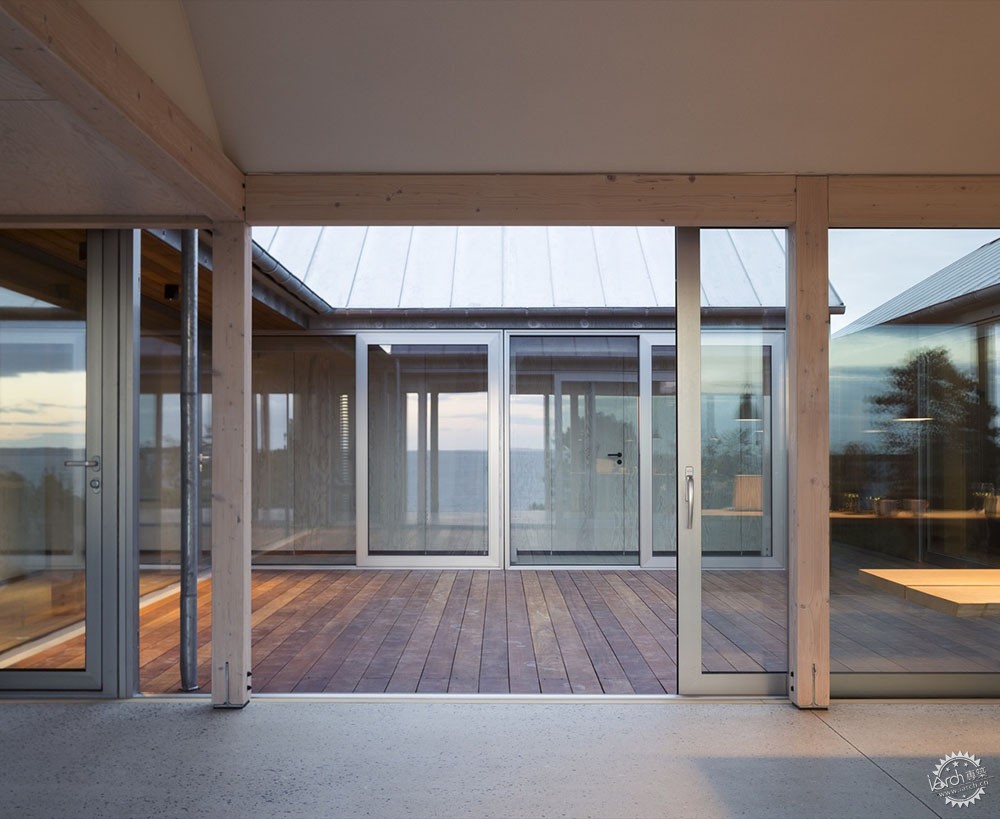

© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第3张图片

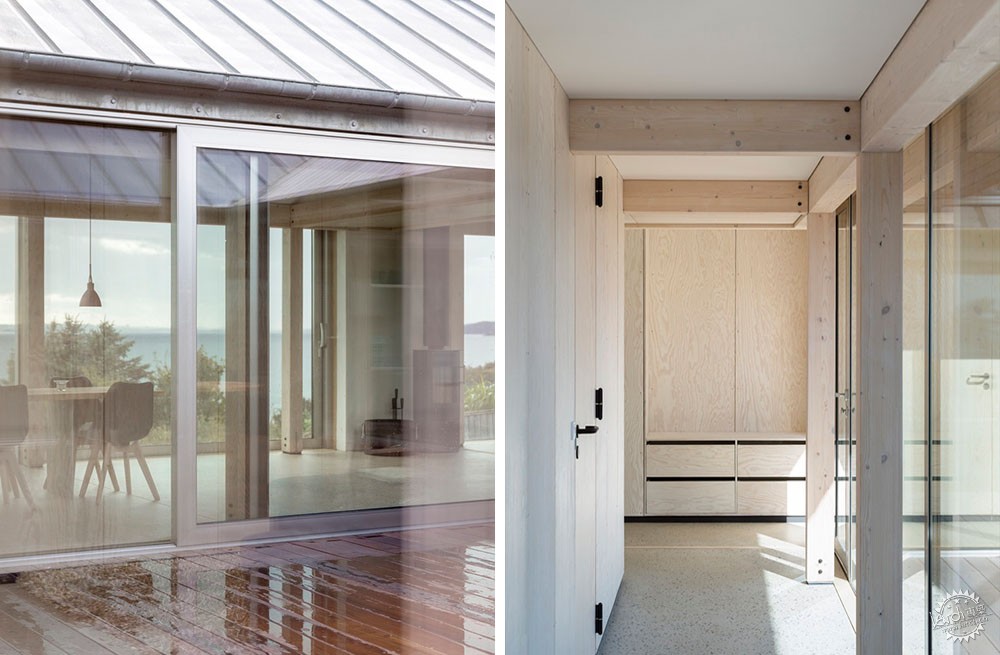

© Hampus Berndtson

住宅位于日德兰半岛的摩尔边境,坐落在一座正对海湾的山顶,背靠埃贝尔托夫特最近的城市。位于其他夏日住宅间的狭窄小路直通住宅,其周围遍布灌木、松树和冷杉树。住宅的四坡屋顶融入周围的夏日住宅,封闭的建筑立面通过窗前的移动百叶窗也使整个住宅的外观与环境更加融合。

The house is situated in Mols Hils, Jutland, on a hilltop with a view towards the bay and the nearby city of Ebeltoft in the background. A narrow road leads to the house, which is placed amongst other summerhouses and surrounded by bushes, pine and fir trees. The four pitched roofs blend in with the surrounding summerhouses and the closed facade with sliding shutters in front of the windows gives the house an anonymous outer appearance.

摩尔山住宅/ Lenschow & Pihlmann第4张图片

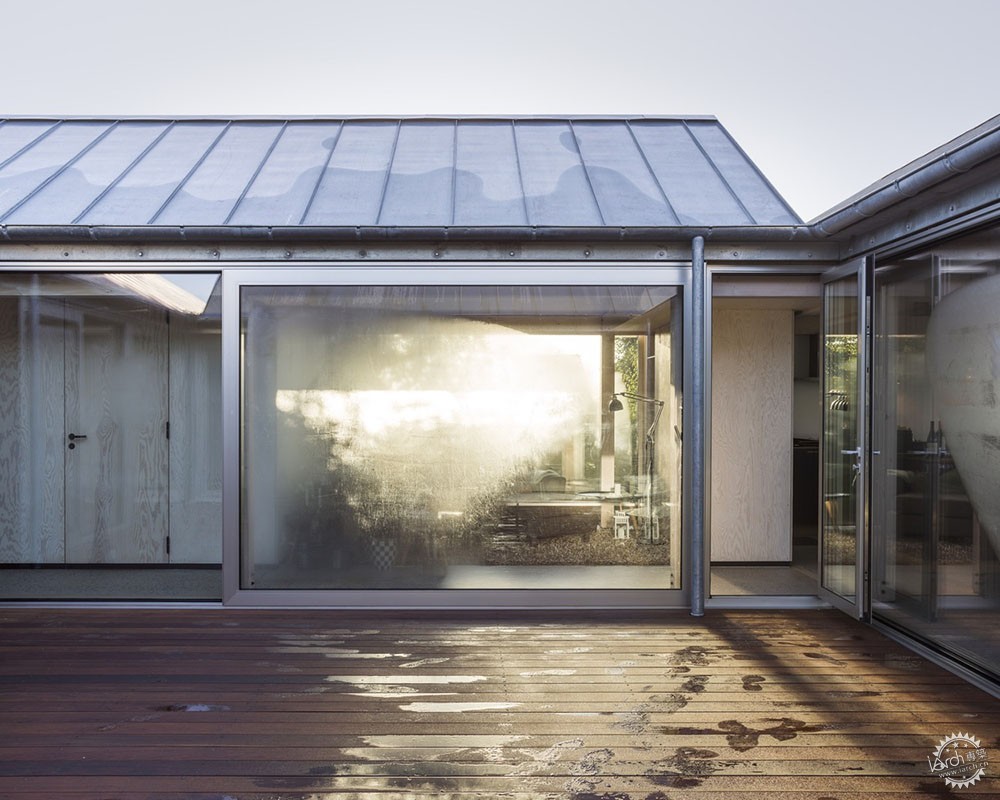

© Hampus Berndtson

庭院空间就像一个可以躲避沿海暴风雨的宁静港湾。百叶窗、移动门和窗帘可以手动移动以创造出不同的灵活和开放的空间。除庭院外围封闭盒子的私密空间外,庭院四周的玻璃形成了更多的连续的室内空间。在每个房间都有一个单独入口通向树木花草掩映的室外平台。

The courtyard provides shelter from the heavy costal winds. Shutters, sliding doors, and curtains can be manually moved around to create different flexible spaces and graduate the openness of the house. Glass surrounds the inner courtyard which creates a continuous interior space with the more private spaces situated as closed boxes around the courtyards periphery. in each room there is a private exit leading to an intimate outdoor area shielded by the surrounding bushes and trees.

摩尔山住宅/ Lenschow & Pihlmann第5张图片

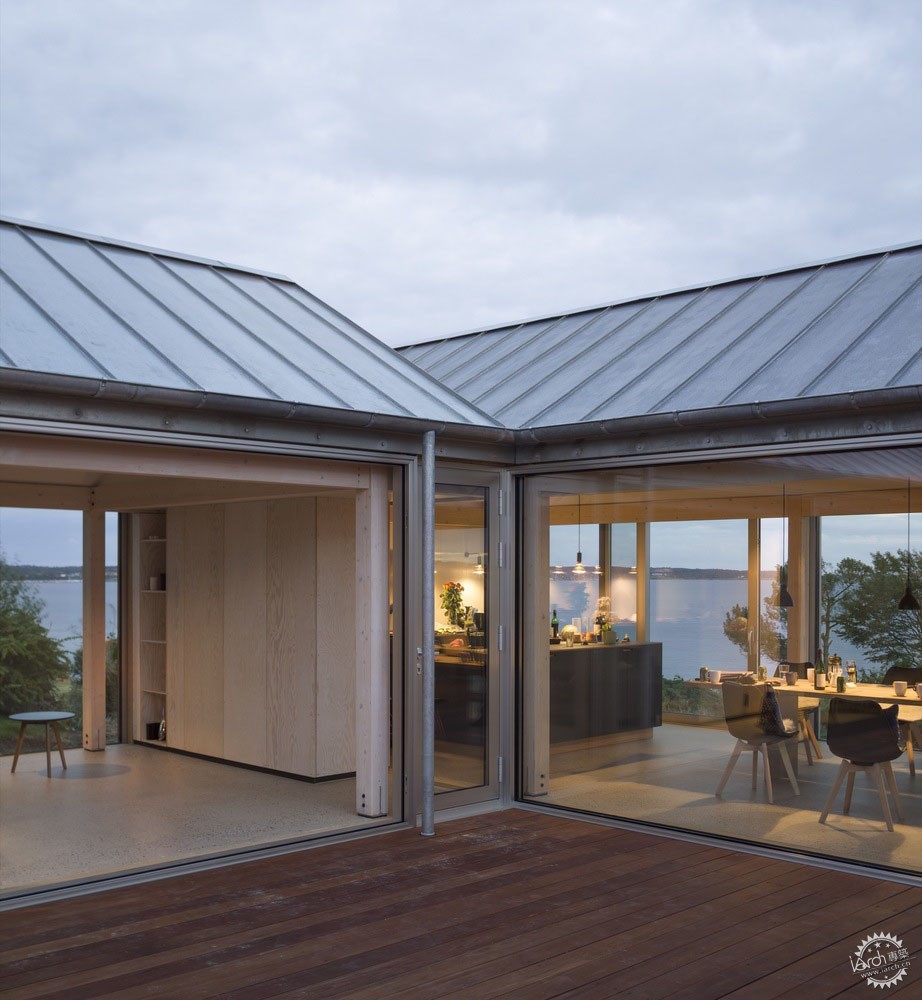

© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第6张图片

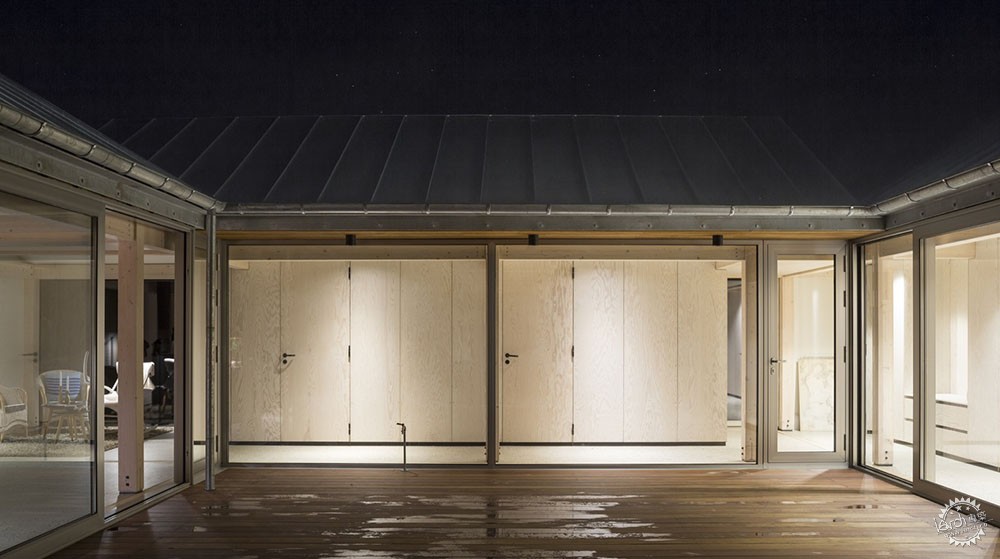

© Hampus Berndtson

建筑坚固的外层装饰由木板、镀锌钢板和锌组成,这都使住宅可以抵御严酷的沿海气候。抛光的混凝土地板产生了粗野主义的效果,同时也能适应住宅室内/室外的用途,松木板的墙面为室内带来一份暖意。

A rugged outer materiality consisting of wooden planks, galvanized steel and zinc makes for a house that can withstand the harsh costal climate. A polished concrete floor with exposed aggregate provides a robust surface to handle the indoor/outdoor use of the house and the walls of pinewood sheets lends warmth to the interior.

摩尔山住宅/ Lenschow & Pihlmann第7张图片

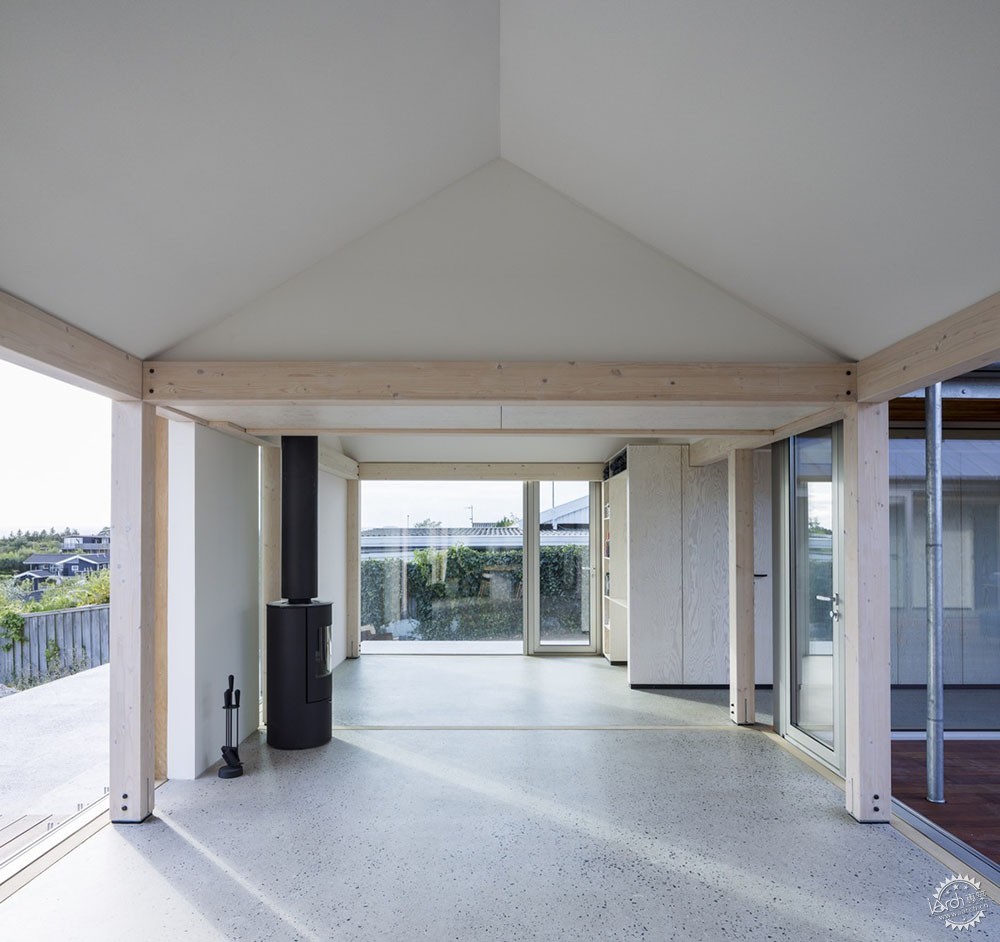

© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第8张图片
© Hampus Berndtson

庭院周围散落的四个小住宅各自有其不同的功能:一:入口空间加洗衣房和浴室;二:客卧;三:厨房和起居室;四:主卧。

The four smaller houses loosely fit different functions; an entry house with washing rooms and bathrooms, a guest’s house, a house for the kitchen and living room, and the fourth house as a sleeping quarter for the owners.

摩尔山住宅/ Lenschow & Pihlmann第9张图片
© Hampus Berndtson

通过开放的平面结构,这四个房间联系在一起,但是不同的坡屋顶强调了各种各样的异构空间。通过中心的室外空间可以与其他房间产生各种可能性的联系,这也有助于为两位主人创建一个多功能的空间,作为第二个“家”。无论是私密还是有大家庭一起时,都能保证主人有独立的空间
All the houses are connected in a mainly open plan structure while the differently pitched roofs emphasizes a variety of heterogeneous spaces. Various possibilities of connecting the rooms across the central outdoor space in the middle make for a multi functional house that provides a second home for the two owners both in private and when they are joined by their big family.

摩尔山住宅/ Lenschow & Pihlmann第10张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第11张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第12张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第13张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第14张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第15张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第16张图片
© Hampus Berndtson

摩尔山住宅/ Lenschow & Pihlmann第17张图片
Floor Plan/楼层平面图

摩尔山住宅/ Lenschow & Pihlmann第18张图片

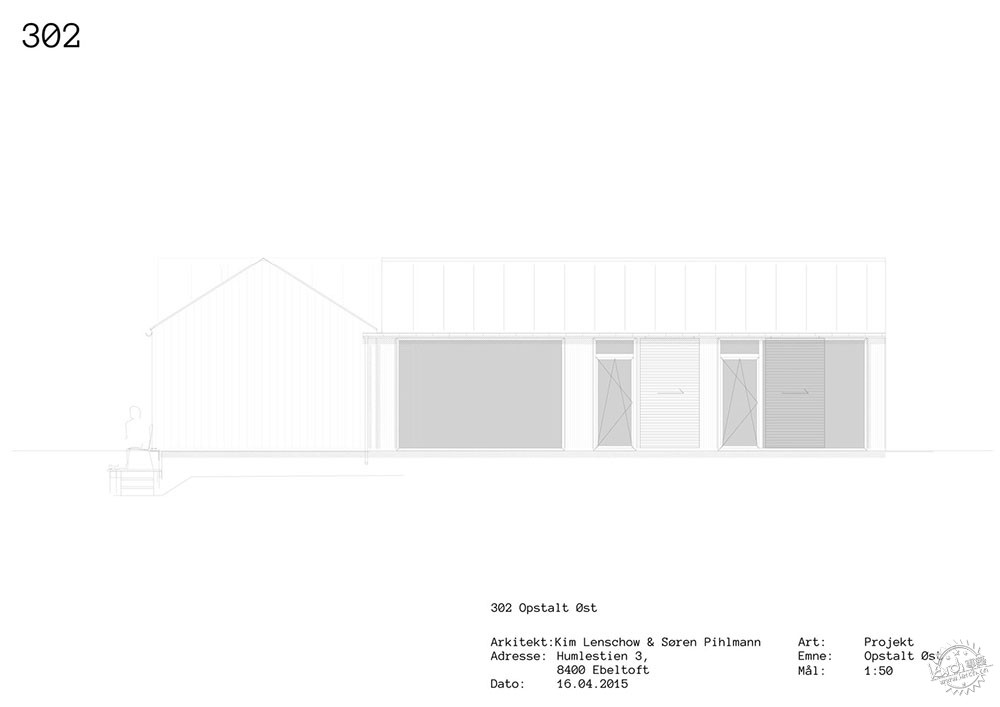

Elevation/立面图

摩尔山住宅/ Lenschow & Pihlmann第19张图片
Elevation/立面图

摩尔山住宅/ Lenschow & Pihlmann第20张图片
Elevation/立面图

摩尔山住宅/ Lenschow & Pihlmann第21张图片
Elevation/立面图

建筑设计:Lenschow & Pihlmann
地点:丹麦,埃伯尔措夫特,Handrup Strand
主持建筑师:Kim Lenschow, Søren Pihlmann
面积:175.0平方米
项目年份:2015年
摄影:Hampus Berndtson

Architects: Lenschow & Pihlmann
Location: Handrup Strand, Ebeltoft, Denmark
Architect in Charge: Kim Lenschow, Søren Pihlmann
Area: 175.0 sqm
Project Year: 2015
Photographs: Hampus Berndtson
