© Simon Deprez
Architects: Philippe Dubus Architectes
Location: Paris, France
Client: Paris Habitat
Area: 4,697 sqm
Year: 2011
Photographs: Simon Deprez, Michel Denance
地点:法国 巴黎
摄影:西蒙 Deprez,米歇尔 Denance

OP 13/ PHD建筑师 OP13 / PHD Architectes第2张图片

© Michel Denance
The project is located on the site of Admiral Blow, a set of 450 social housing built by the OPAC of Paris in the 1960s.
这个项目坐落在Admiral Blow的地方,它是在二十世纪六十年代由巴黎的OPAC建造的一系列社会住房,共450间。

OP 13/ PHD建筑师 OP13 / PHD Architectes第3张图片

© Simon Deprez
It is part of the redevelopment of the site operations launched by Paris Habitat and the City of Paris: creation of a pedestrian link between the ZAC Rungis and Parc Montsouris, along the inner ring road, construction of 60 homes , a nursing home and student housing.
这是由巴黎居和巴黎市推出的现场施工重建的一部分:修建了在ZAC Rungis和蒙苏里公园之间的人行通道,沿着内环路,建造了60个房屋,一个养老院和学生宿舍。

OP 13/ PHD建筑师 OP13 / PHD Architectes第4张图片

© Simon Deprez
In January 2007, two consultations were launched by Paris Habitat for carrying out these programs. The agency Philippe Dubus is declared winner for the housing program. This program includes 60 units BBC, a neighborhood library and exhibition space.

OP 13/ PHD建筑师 OP13 / PHD Architectes第5张图片

© Simon Deprez
The units are divided into floor, two buildings M and N. They take place in the spaces between the existing and pegged their pinions (12 and 4 levels) to form a front built on Long street skates along the inner ring. Building M is based on the existing parking for the entire site which includes ramp access, building N takes the place of the old collective boiler which has been removed, the housing of the entire site, existing and new, are connected to district heating in the city.

OP 13/ PHD建筑师 OP13 / PHD Architectes第6张图片

© Michel Denance
The ground pavements are released, leaving perceive green spaces from the heart of pedestrian island in the north. Blocks and stained glass halls, common areas and the local library slip under the buildings on the ground floor.

OP 13/ PHD建筑师 OP13 / PHD Architectes第7张图片

© Simon Deprez
The unique architecture of the project is dictated by the constraints and urban thermal performance expected. The architectural style of the jacket is based on the constructive logic of the existing façades and a vertical frame unchanging and continuous frames which fit to give life to new buildings as opposed to rigor “static” of existing buildings between which they operate.

OP 13/ PHD建筑师 OP13 / PHD Architectes第8张图片

© Simon Deprez
Buildings are compact, trimmed as templates PLU, they are packaged in a ventilated skin consisting of a reinforced outer insulation and cladding panels of translucent polycarbonate on a vertical frame 60 cm. Mixed wood- aluminum frames are sized depending on the nature of the piece they light on a pitch of 60 cm (kitchen / bathroom 60×60 cm, 120×120 cm bedrooms, living room 240×240 cm). They punctuate the polycarbonate shell as needed, increasing the randomness of openings in accordance with the frame siding.

OP 13/ PHD建筑师 OP13 / PHD Architectes第9张图片

© Michel Denance
Reflective and translucent texture of the envelope gives a lively reading and ambiguous volumes, skin reactive to light and context reduces the density of the transaction.

OP 13/ PHD建筑师 OP13 / PHD Architectes第10张图片

© Michel Denance

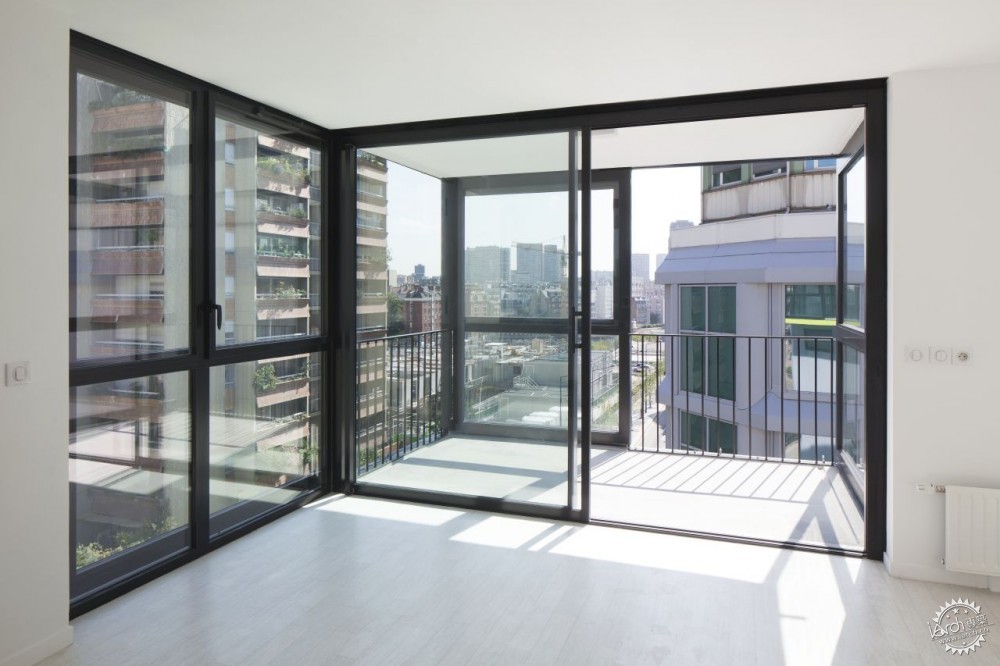

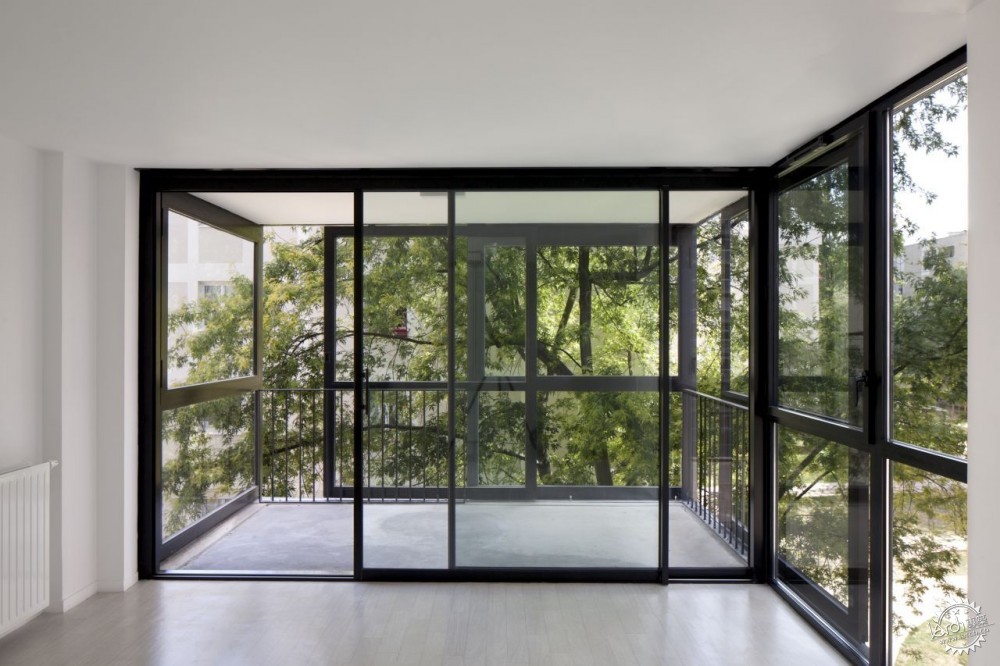

The living rooms of T3 and T4 are extended by “bow-windows” balcony over the landscape, they allow the sun to be fetch from the northern facades and multiply views of the city and the gardens. These buffer zones provide additional living space and versatile double skin composed of large sliding glass that ensure their thermal regulation: winter, the volume is closed, it stores the solar energy and lets the sun get in the heart of houses. The summer, slidings are in the open position, offering a ventilated outdoor area in the shade of the slab at the top.

OP 13/ PHD建筑师 OP13 / PHD Architectes第11张图片

© Simon Deprez
The development of a performance envelope has guaranteed access to the label “Low Consumption Building” without resorting to the addition of solar panels and other technology solution, thus limiting the burden on tenants.

OP 13/ PHD建筑师 OP13 / PHD Architectes第12张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第13张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第14张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第15张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第16张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第17张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第18张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第19张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第20张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第21张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第22张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第23张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第24张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第25张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第26张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第27张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第28张图片

Section 局部图

OP 13/ PHD建筑师 OP13 / PHD Architectes第29张图片

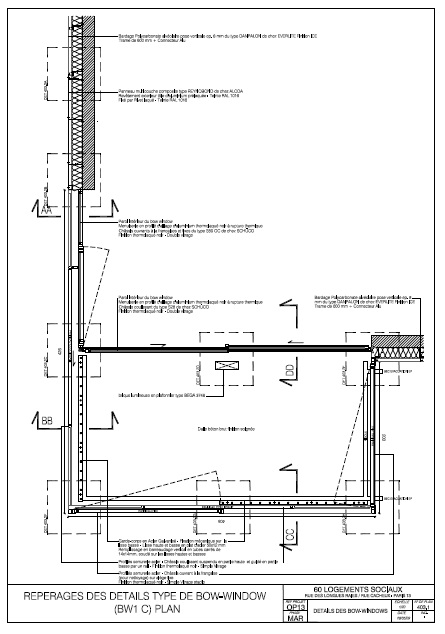

Plan 设计图

OP 13/ PHD建筑师 OP13 / PHD Architectes第30张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第31张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第32张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第33张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第34张图片

Site plan 总设计图

OP 13/ PHD建筑师 OP13 / PHD Architectes第35张图片

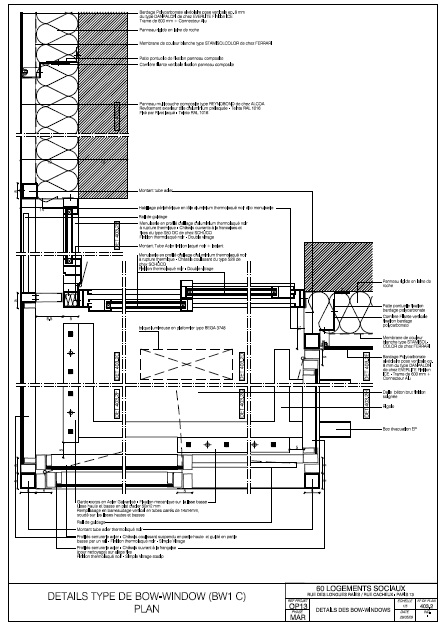

Detail  细节

OP 13/ PHD建筑师 OP13 / PHD Architectes第36张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第37张图片

OP 13/ PHD建筑师 OP13 / PHD Architectes第38张图片

Section 局部图

OP 13/ PHD建筑师 OP13 / PHD Architectes第39张图片

Elevation 立视图
