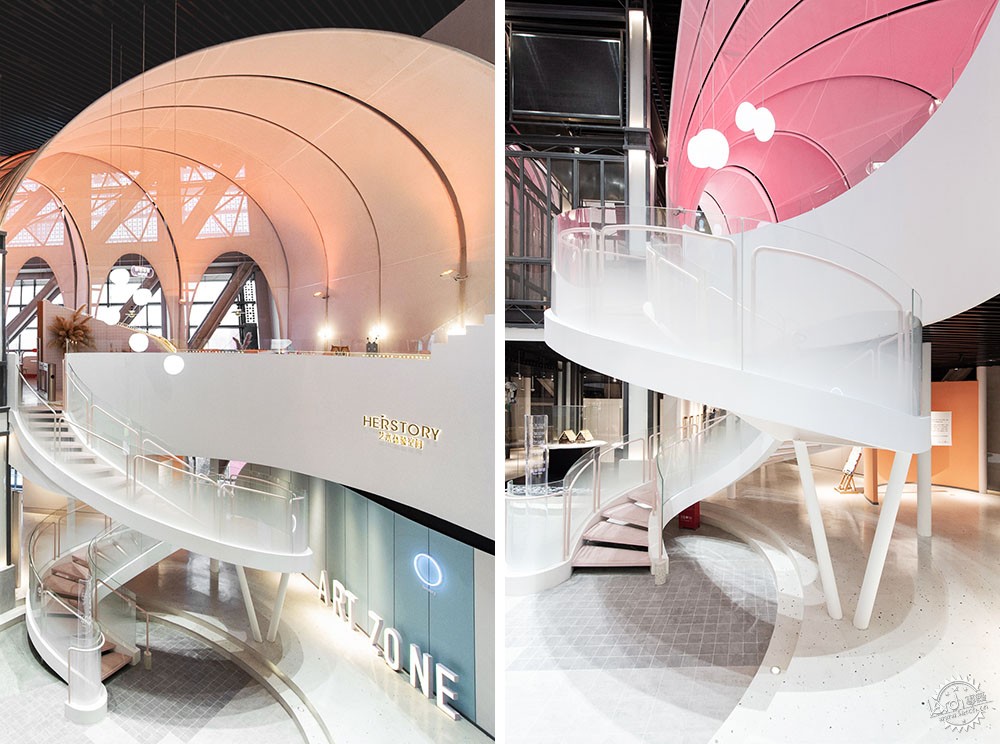

大悦城 · 长风 · 庄生晓梦迷蝴蝶第1张图片

▲ 4F 入口_4F entrance

大悦城 · 长风 · 庄生晓梦迷蝴蝶第2张图片

▲ 4F 入口细节_4F entrance detail


长风大悦城 —— 会员空间
Joy City · Parkside · Herstory Art Zone

庄周化蝶舞,梦随逍遥境。
都说大隐隐于世,而真正的凡世,却又有几何?
商场之境,亲子之所,举买之地, 可得一时逍遥?

在商业方面,裸筑接到的设计命题,是在一个10m高的商场空间里,设计一处共享客厅。

这座商场的主题被定为“女主体验空间”。

功能:游乐地 +  商场客厅  +  亲子表演舞台  +  图书馆的功能复合空间。

The sage Chuangzi is day-dreaming in the free state, bewitched by butterflies.
It is said that the great is hidden in the world, but what is the real world?
A shopping mall is a place for for shopping, also a place for parents and children. So, how we fill our leisure time here?
In practice, the assignment for RoarcRenew is to design a shared living-room under a 10-m high ceiling inside a shopping mall.

Function:A Complex functioning space:
an amusement park + a living-room for the shopping mall + a stage for parent-child performance

大悦城 · 长风 · 庄生晓梦迷蝴蝶第3张图片

▲ 入口楼梯2_entrance stair2

大悦城 · 长风 · 庄生晓梦迷蝴蝶第4张图片

▲ 入口楼梯_entrance stair

大悦城 · 长风 · 庄生晓梦迷蝴蝶第5张图片

▲ 旋转楼梯_Spiral staircase

大悦城 · 长风 · 庄生晓梦迷蝴蝶第6张图片

▲ 5F 北侧吧台+休息_5F north bar+resting

大悦城 · 长风 · 庄生晓梦迷蝴蝶第7张图片

▲ 吧台细节_bar detail


“柔”域

当曲线在三维空间组合的时候,“柔”往往更触动人心。
入口楼梯的“柔”
“蝴蝶”的“柔”
曲线水磨石体量的“柔”

原楼板边缘被“柔”化,边缘立面形成“迎”式的曲线。为“蝴蝶”空间提供了一个“看”的场所。新建的椭圆旋转楼梯连接4-5F的垂直交通,为整个场域提供了重要的通道及主视觉形象。

The “Soft” Domain
When curves are combined in the three-dimensional space, "soft" tends to be more touching.
The “Softness” of the Entrance Stair
The “Softness” of the “Butterfly”
The “Softness” of the curved terrazzo volume
The edge of the original floor is “softened” and the edge facade forms a "welcoming" curve. It provides a place for "seeing" the "butterfly" space. The new elliptical staircase connecting the vertical traffic of 4th and 5th floors provides an important channel and a main visual image for the whole field.

大悦城 · 长风 · 庄生晓梦迷蝴蝶第8张图片

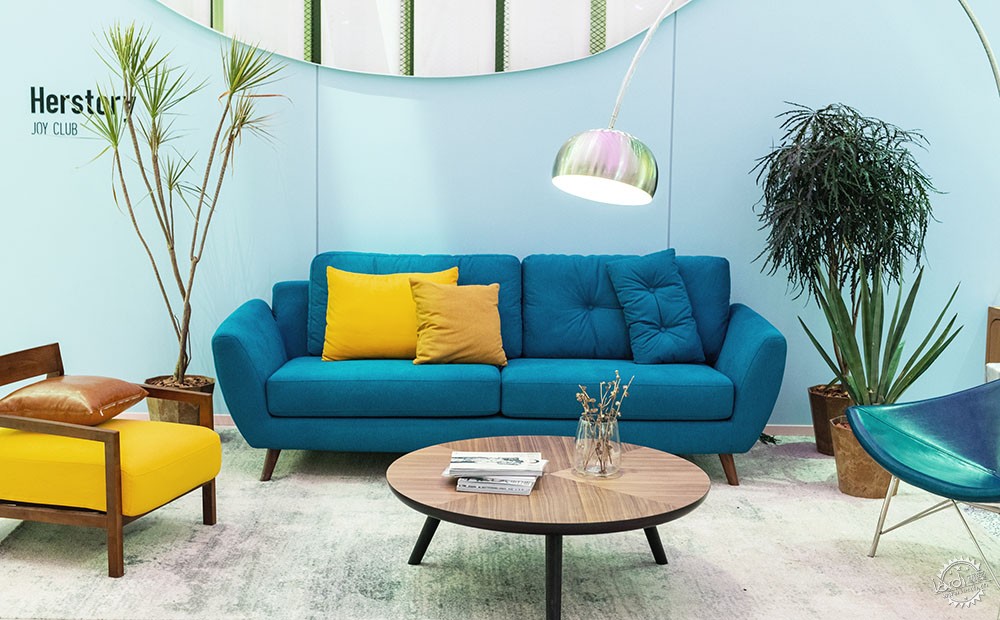

▲ 5F 沙发休息区_5F sofa resting area

大悦城 · 长风 · 庄生晓梦迷蝴蝶第9张图片

▲ 5F 休息+儿童玩乐区_5F children play area

大悦城 · 长风 · 庄生晓梦迷蝴蝶第10张图片

▲ 5F 沙发休息区2_5F sofa resting area2


骨架  曲线

这个“蝴蝶”里,我们用了44个钢管拱圈,按照原楼板造型,弯曲出一阵连拱,以这个场地的原垂直构筑-钟楼向外中心阵列。

曲率骨架的膜结构,是我们对“女性”这个词汇的象形定义。庄生晓梦迷蝴蝶,在这个语境里,蝴蝶即女性。不同色阶的灯光渲染下的膜结构,正是“女性”的“迷”与“幻“。

而在功能方面,曲线的落地钢构,有效的代替由于功能不同而理应产生的墙体隔断,柔美的空间语言被“光”与“曲线”解放。

In this "butterfly", we used 44 steel pipe arch rings to curve a series of multiple arches in accordance with the original floor shape, and constructed the original vertical structure of the site -- the clock tower outward central array.
The membrane structure of curvature skeleton is our pictographic definition of the term "female". The sage Chuangzi is day-dreaming, bewitched by butterflies. In this context, butterflies are women. Membrane structure rendered by different color levels of lighting is just the "mystery" and "illusion" of “women".
In terms of function, the landing steel structure of curve effectively replaces the wall partition due to different functions, and the soft space language is liberated by "lighting" and “curves".

大悦城 · 长风 · 庄生晓梦迷蝴蝶第11张图片

▲ 会员展台细节_member exhibition detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第12张图片

▲ 休息区细节_resting detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第13张图片

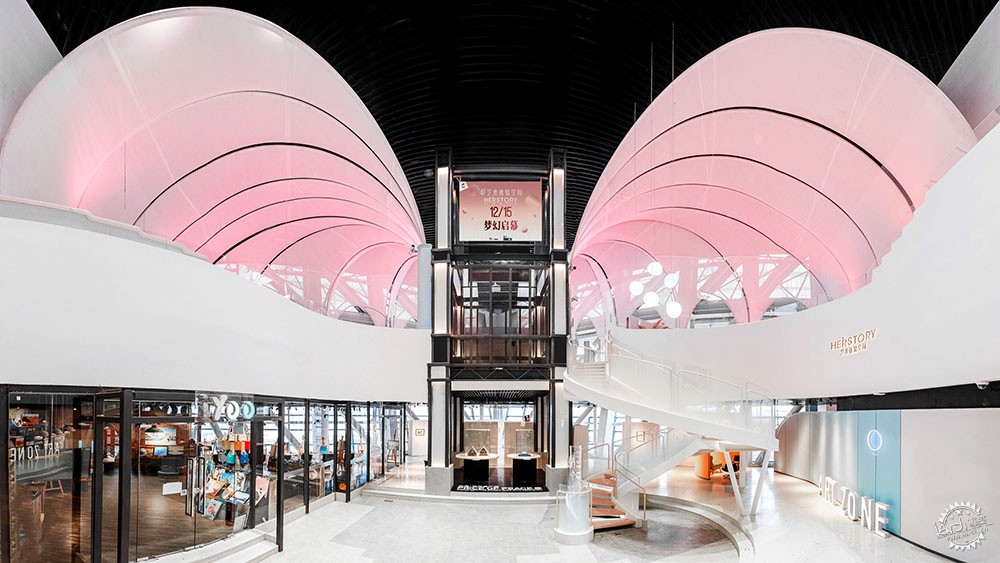

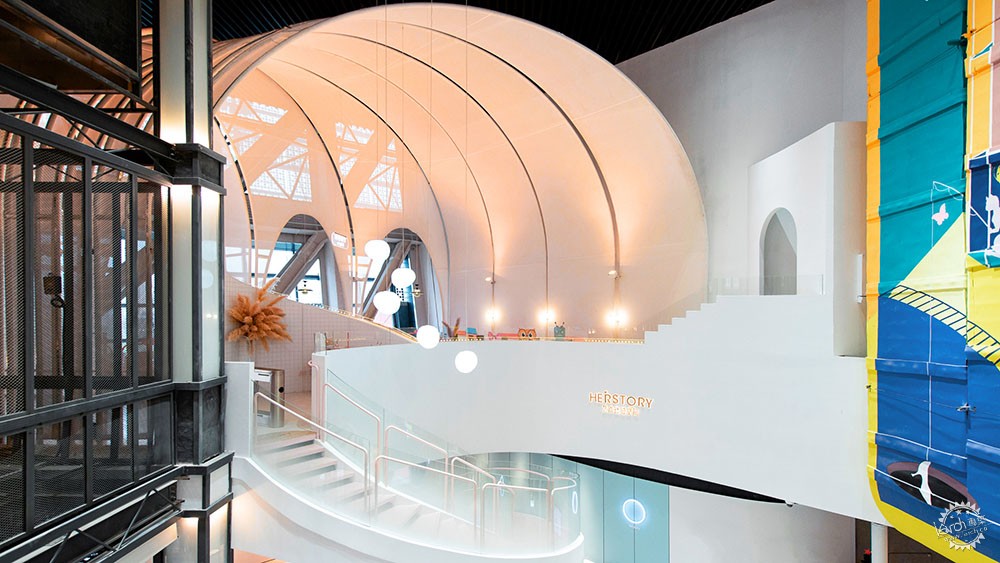

▲ 中庭立面_The atrium facade


室内微气候的调节者

“膜”有很好的阻热保温功能,是室内微气候的调节者。

我们花了半年时间,来尝试和研究将“膜”结构置入室内空间所必要的,施工,建造顺序,节点连接,灯光配合,结构荷载等。  结果令我们兴奋的是,“膜”材料所,衍生出的柔软的“ 肌肤感 ”,形成一种特殊的媒介载体。这与我们想表达“女性”的“蝴蝶魅”相得益彰。

空气,复杂的光环境穿越过“膜”, 以漫反射的形式呈现,在静定的空间里随时随地带来情境内容的变化,跳跃以及臆想。自由是光,一定的透光量在膜的遮蔽下,人与光,人与人,人与影,在探索中穿梭,或者猫在角落,不同的体态组合,丰富不同的行为形式。

如果说裸筑以往的项目都是以小见大,用一个“设计点”来隐射出场域精神,那么这次我们尝试将场域转化为场所,以独立和优雅的姿态 营造出一个个小的漫步空间,更注重的是人的临场感受,在场所中体验的过程。

The Regulator of Indoor Microclimate
"Membrane" functions as a good thermal insulation and it is the regulator of indoor microclimate.
We spent half a year trying to study the necessity of putting the membrane structure into the indoor space, construction, building order, joint connection, lighting coordination, structural load, etc. As a result, we are excited to see that the soft "skin feeling" derived from "membrane" materials forms a special media carrier. This is complemented by our desire to express the "charm of butterflies" of “women”.
Some fresh air,  and the complex light environment, pass through the "Membrane" and present themselves in the form of diffuse reflection. In a quiet space, the content of the situation changes, jumps and assumptions are brought along at any time and anywhere. Freedom is light. While A certain amount of light transmittance is shielded by the membrane, people and light, people and people, people and the shadows, shuttling in the exploration, or hiding in the corners,  form different body combinations and different behaviors.
If previous projects of Roarc Renewprojects used to present big things through small details, to reveal the filed spirit from one "design point”. This time we try to transform the field into a space, with an independent and elegant attitude to create a small walking space, paying more attention to the human experience and the process of experiencing the space.

大悦城 · 长风 · 庄生晓梦迷蝴蝶第14张图片

▲ 4F 展览区_4F exhibition area

大悦城 · 长风 · 庄生晓梦迷蝴蝶第15张图片

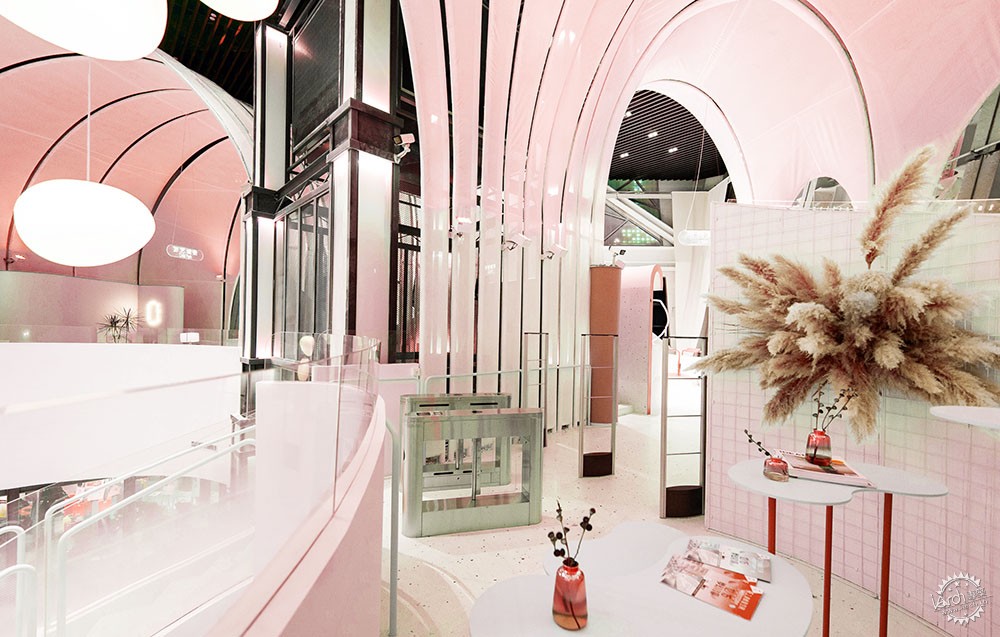

▲ 5F 会员展台_5F member exhibition

大悦城 · 长风 · 庄生晓梦迷蝴蝶第16张图片

▲ 5F 路演小剧场_5F The roadshow theater

大悦城 · 长风 · 庄生晓梦迷蝴蝶第17张图片

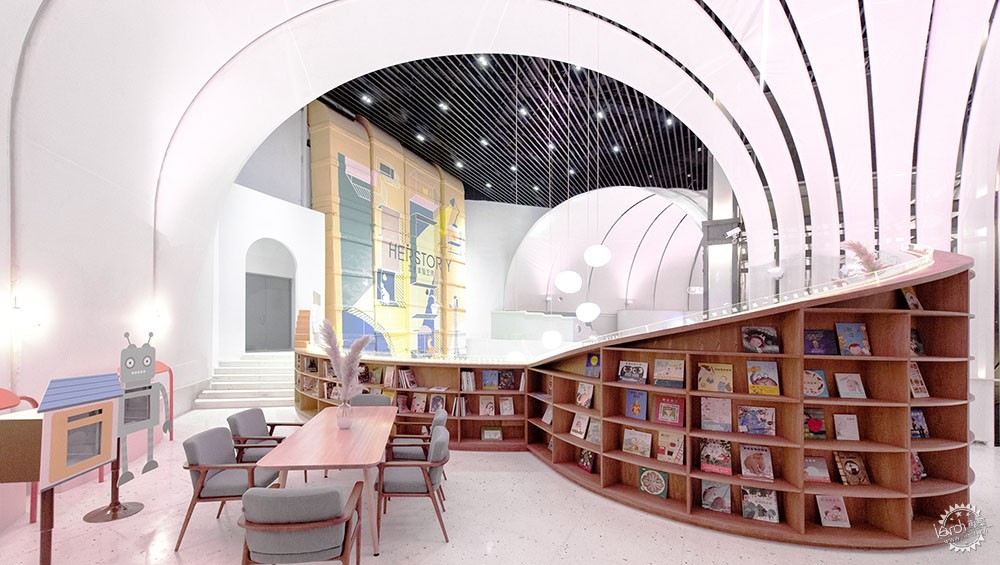

▲ 5F 阅读区_5F reading area

大悦城 · 长风 · 庄生晓梦迷蝴蝶第18张图片

▲ 儿童城堡细节_children castle detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第19张图片

▲ 楼梯入口细节_stair ertrance detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第20张图片

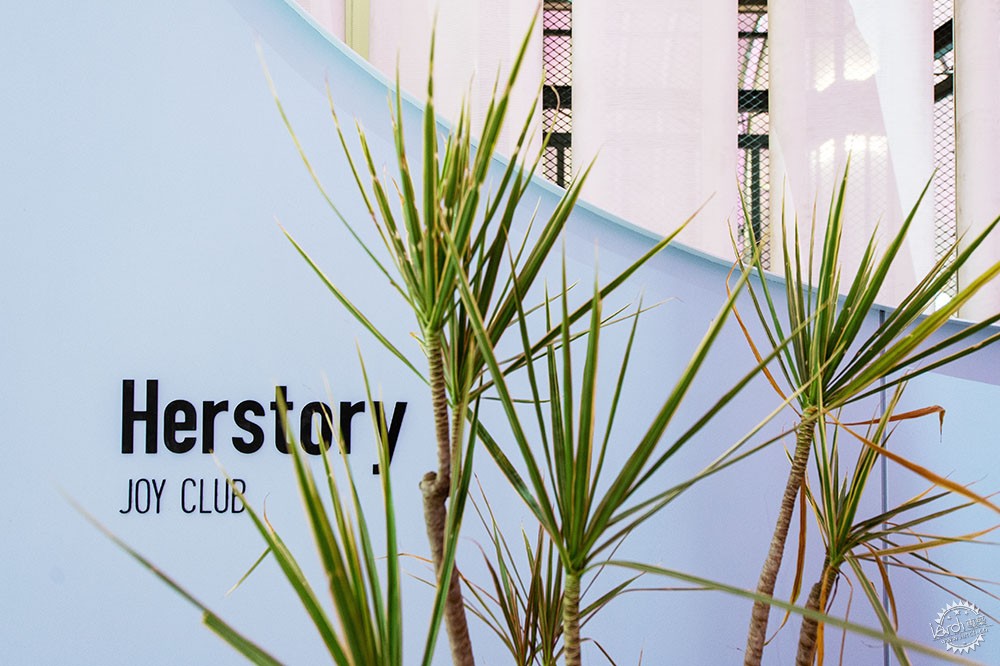

▲ 墙面细节_wall detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第21张图片

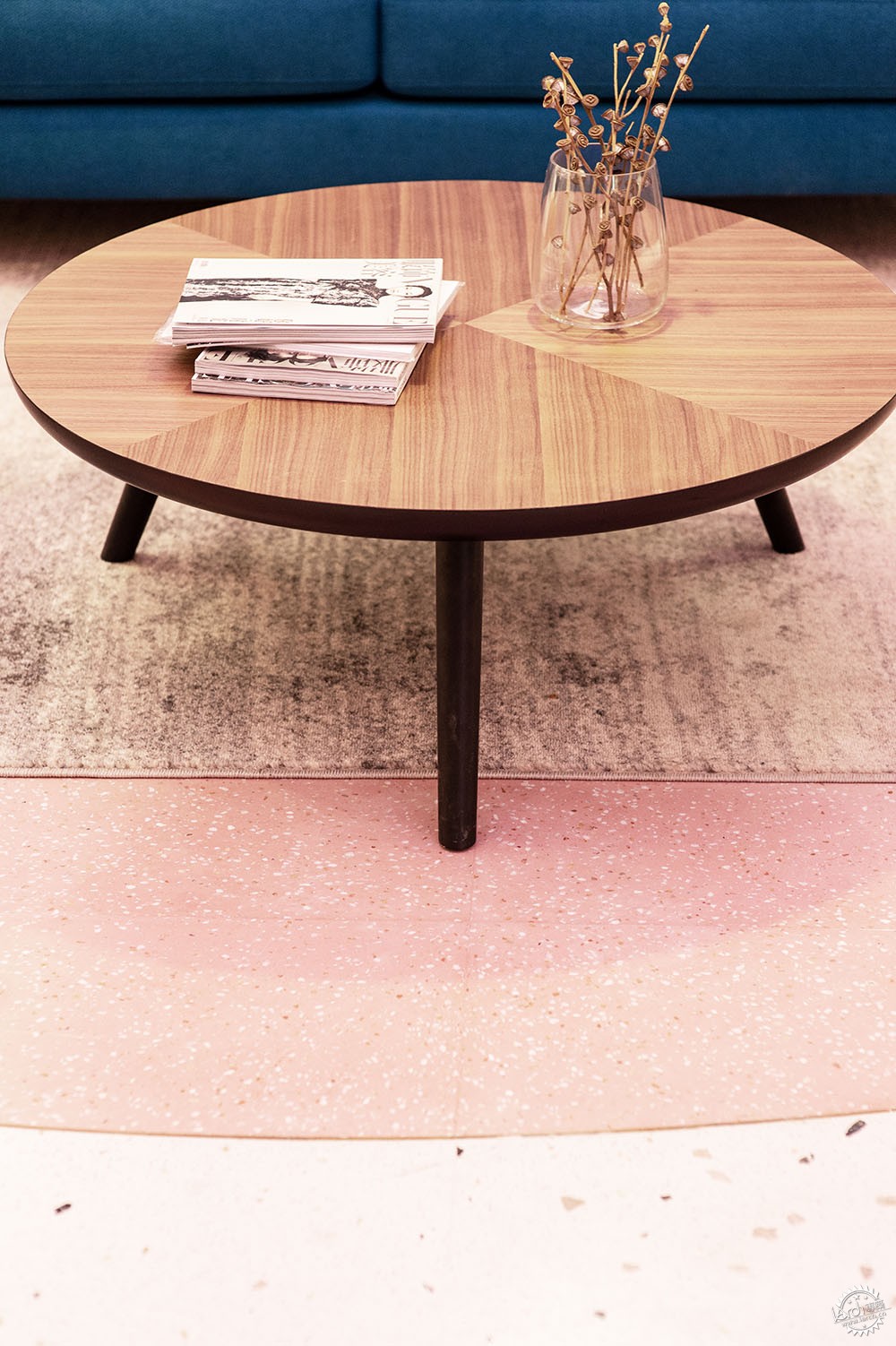

▲ 软装细节_decoration detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第22张图片

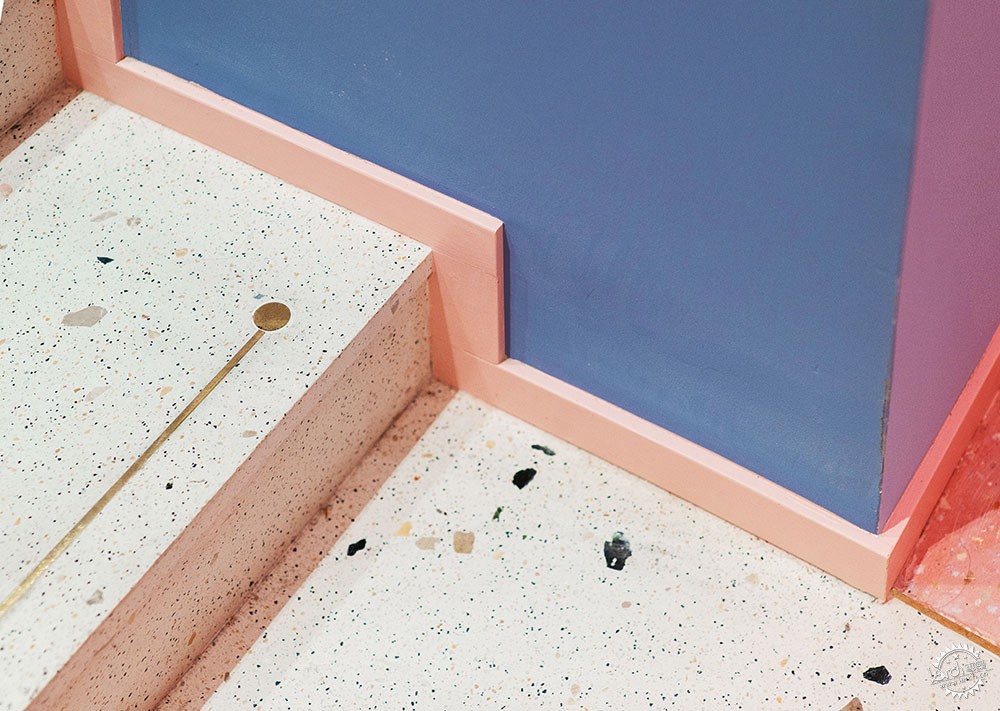

▲ 台阶细节_step detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第23张图片

▲ 小剧场细节_theater detail

大悦城 · 长风 · 庄生晓梦迷蝴蝶第24张图片

▲ 小剧场细节2_theater detail2

大悦城 · 长风 · 庄生晓梦迷蝴蝶第25张图片

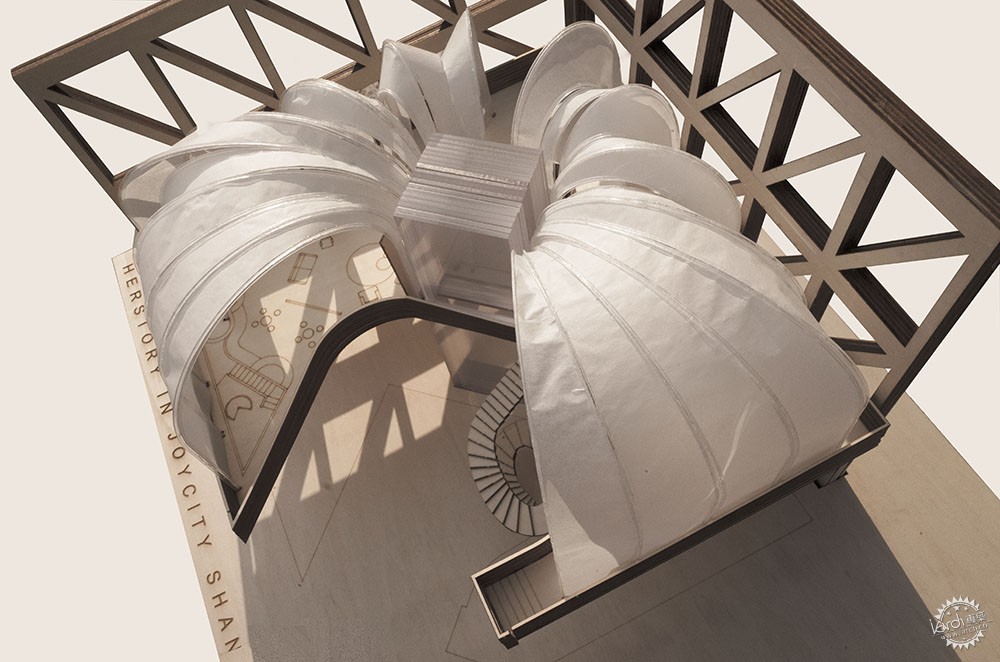

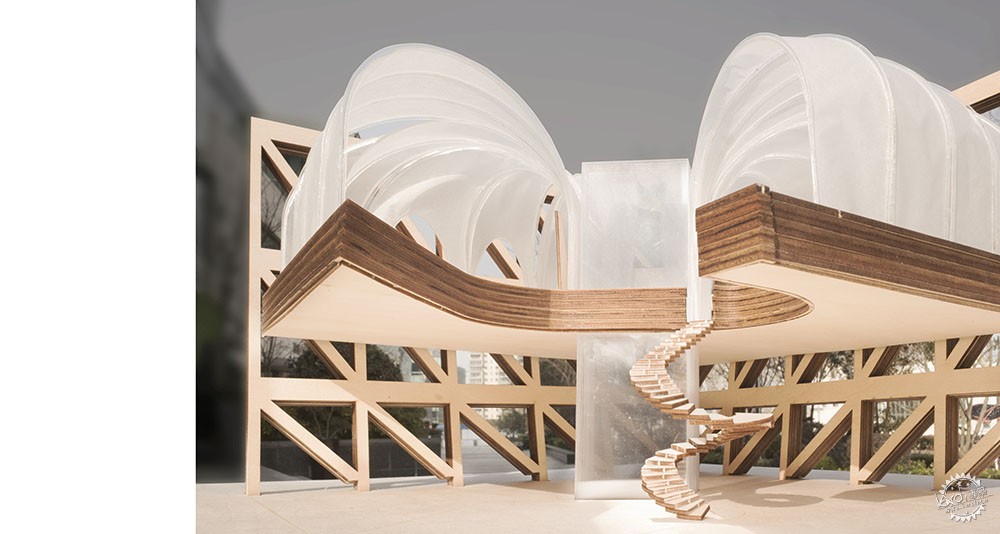

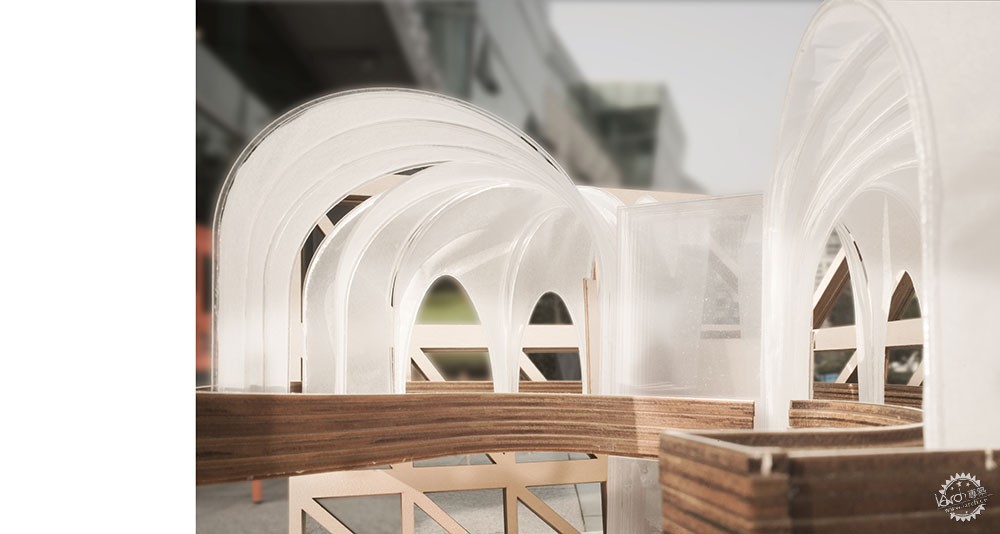

▲ 模型

大悦城 · 长风 · 庄生晓梦迷蝴蝶第26张图片

▲ 模型

大悦城 · 长风 · 庄生晓梦迷蝴蝶第27张图片

▲ 模型

大悦城 · 长风 · 庄生晓梦迷蝴蝶第28张图片

▲ 模型

大悦城 · 长风 · 庄生晓梦迷蝴蝶第29张图片

▲ 模型

大悦城 · 长风 · 庄生晓梦迷蝴蝶第30张图片

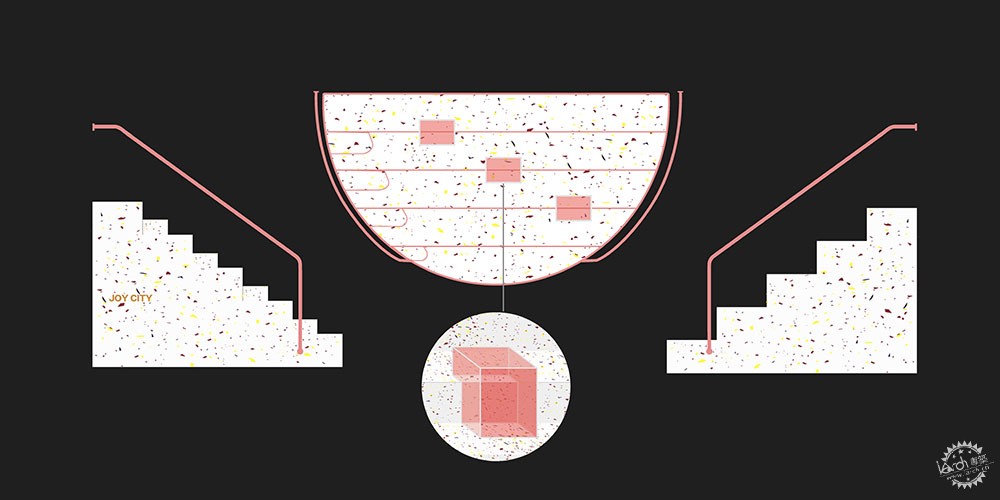

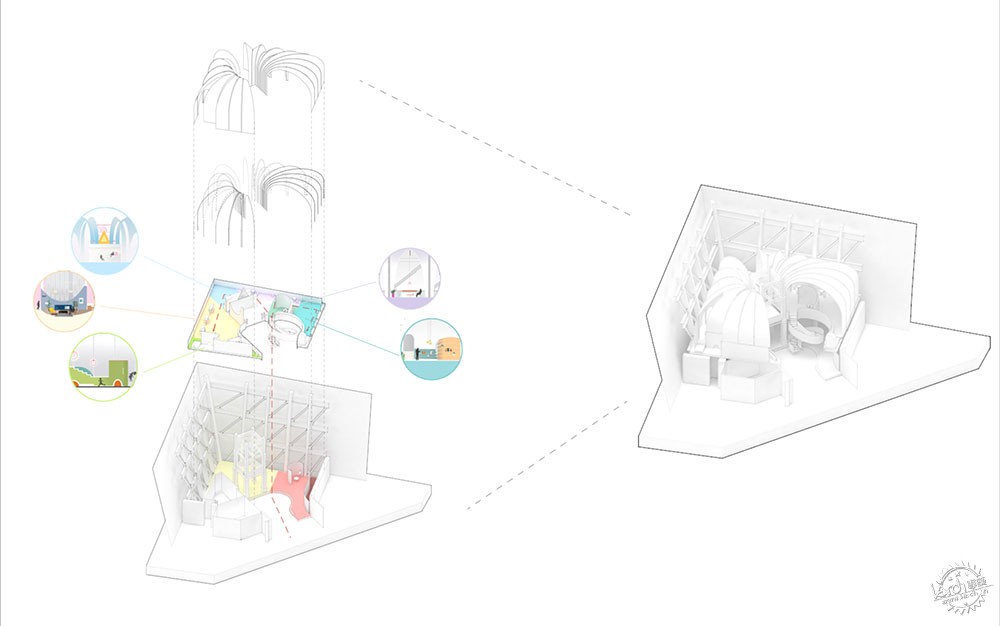

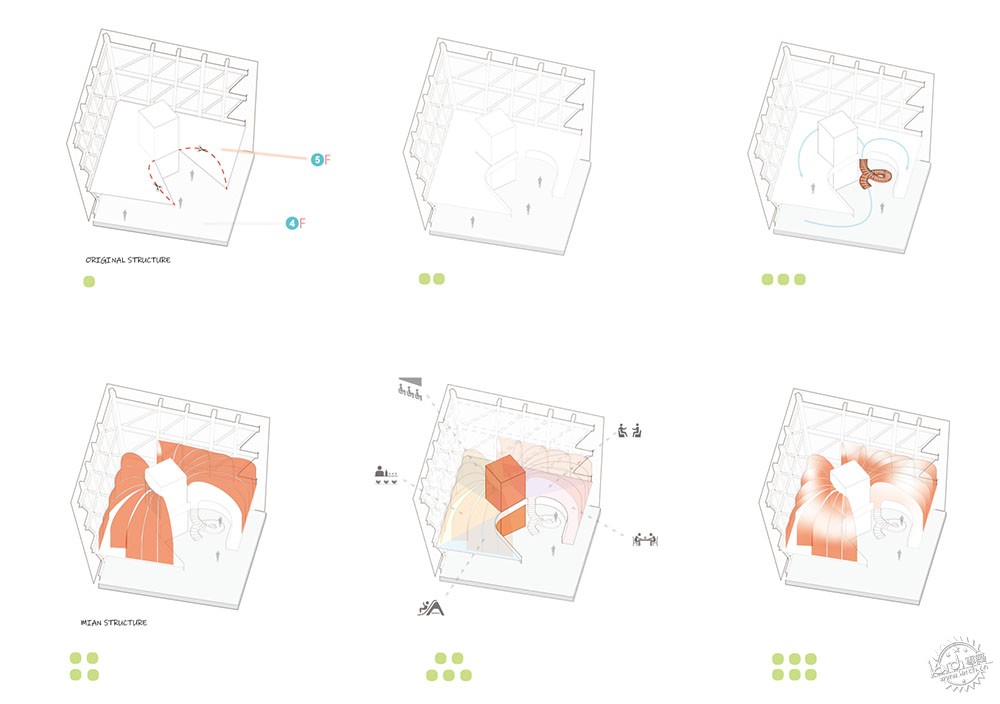

▲ 示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第31张图片

▲ 示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第32张图片

▲ 示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第33张图片

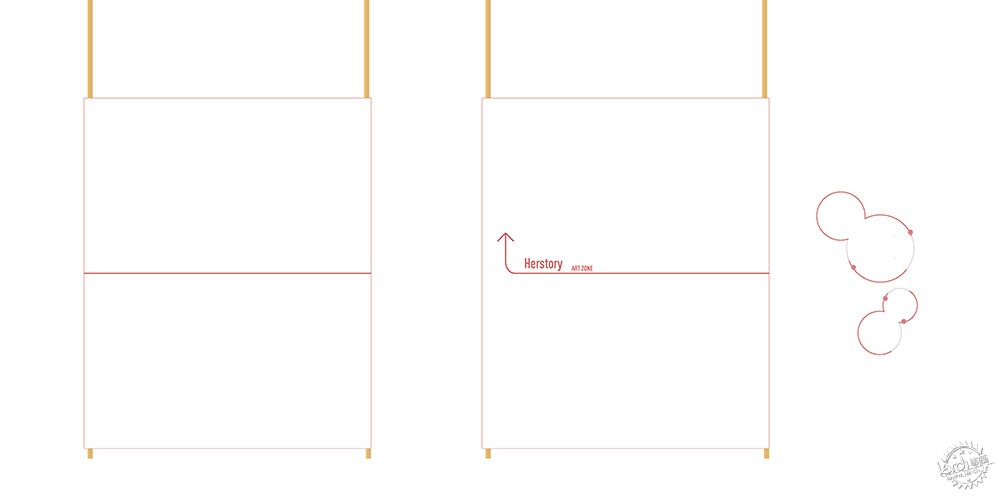

▲ 薄膜示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第34张图片

▲ 薄膜示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第35张图片

▲ 薄膜示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第36张图片

▲ 楼梯示意图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第37张图片

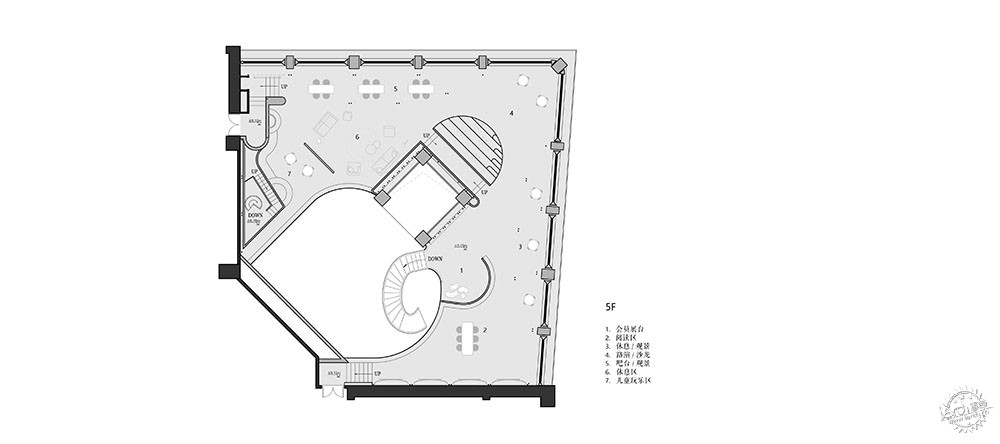

▲ 平面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第38张图片

▲ 平面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第39张图片

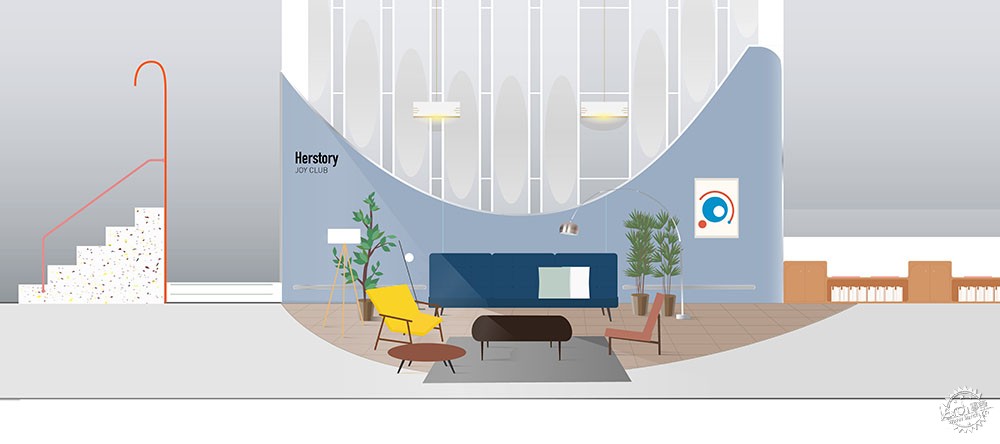

▲ 立面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第40张图片

▲ 立面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第41张图片

▲ 立面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第42张图片

▲ 立面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第43张图片

▲ 立面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第44张图片

▲ 立面图

大悦城 · 长风 · 庄生晓梦迷蝴蝶第45张图片

▲ 立面图


项目地址:中国上海
基地面积:500平方米
建筑面积:500平方米
建筑及室内设计:裸筑更新建筑设计事务所 roarc.cn
主持建筑师:柏振琦
项目建筑师:盛朦萱
设计团队:薛锦华,吴叶静,陈子酉,诸辰辰
结构工程师:吴传义
灯光设计:降昭龙 (迈骏国际)
施工单位:张成华 结庐装饰
业主:中粮大悦城
设计起讫:2018/02 – 2018/05
施工起讫:2018/06 – 2018/12

Location: Shanghai, China
Site Area: 500 square meters
Built-up Area:500 square meters
Architecture and Interior Design: RoarcRenew
www. roarc.cn
Leading Architect:Robben Bai
Project Architect:Mengxuan Sheng
Design Team:Jinhua Xue, Yejing Wu, Ziyou Chen, Chenchen Zhu
Construction Engineer: Chuanyi Wu
Lighting Design:Zhaolong Jiang(ECO Face Consultant)
Construction Company:Chenghua Zhang (EMCC)
Client:Joy City Group
Design Period:Feb. 2018 - May. 2018
Construction Period:Jun. 2018 - Dec. 2018
