面朝大海,自给自足丨匈牙利国家公营商港调度中心第1张图片

Győr-Gönyű National Public Port Control Building / sporaarchitects

由专筑网李韧,韩平编译

来自建筑事务所的描述:这座国家公营商港调度中心位于通向黑海的道路上,毗邻多瑙河流域1794公里的标志处,整个港口沿着1号公路的多瑙河河口区分布 ,也是一个货运物流中心。

From the architect. In the middle of the path where the North and the Black Sea meet, at the 1,794 km mark of the Danube River and the Mosoni-Danube Estuary between Győr and Gönyű, along highway 1, the Győr-Gönyű National Public Port was constructed, serving as a freight logistics centre.

面朝大海,自给自足丨匈牙利国家公营商港调度中心第2张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第3张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第4张图片

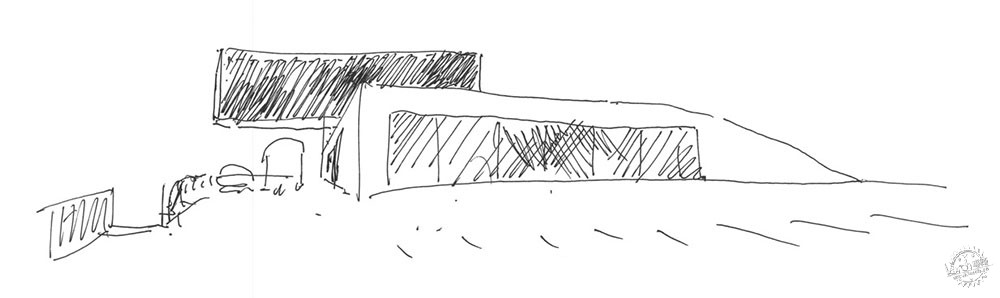

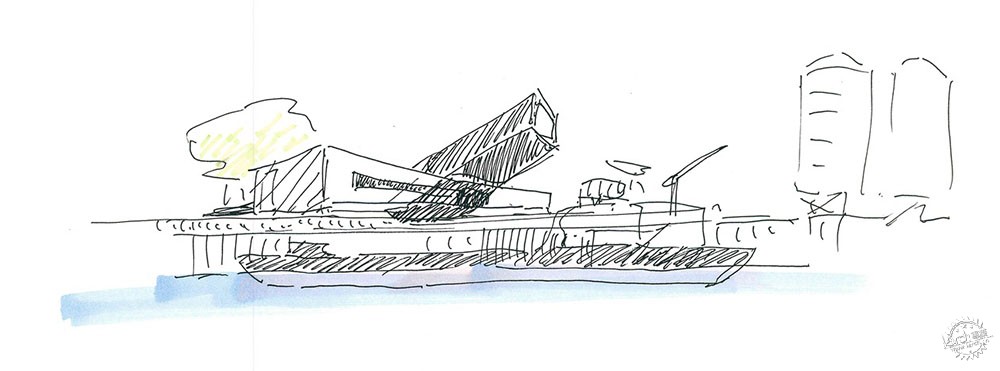

草图/Sketch

这座调度中心建筑的设计灵感来自于港口基础设施系统、俯瞰整个海港的河岸地区以及河水的奔腾流动感。服务大楼是一个多功能港口检查单位,这里有与驳船相联系的通讯系统、处理和储存废物和危险材料的船只、汽车存放处、办公空间、水质测试实验室、会议室和客房。

The design of the port control building was inspired by the strict system of port infrastructure and the riverbank overlooking the harbour as well as the vigorous movement of the water on the other side of the river. The service building acts as a multifunctional port inspection unit, including a communication system with the barges in the river, boats for disposing and storing waste and hazardous materials, car storage, offices, water quality test labs, meeting rooms and guest rooms.

面朝大海,自给自足丨匈牙利国家公营商港调度中心第5张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第6张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第7张图片
© Danyi Balázs

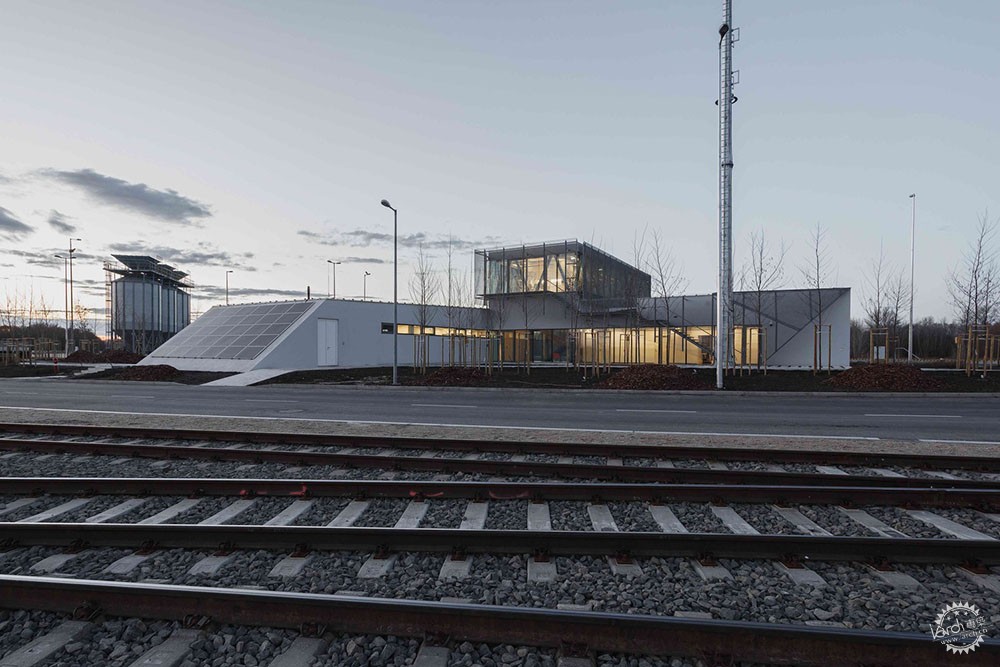

该调度中心还作为水路、公路和铁路运输的枢纽。建筑的一层沿铁路运输系统的东西方向。建筑体量整体上以垂直穿插为主,底层用混凝土框架加固,上部用悬臂梁钢楼梯的加固构件固定。一个玻璃体量延伸至河边,让员工能够在这里监督港口的作业,并为人们提供自然景观。地面部分主要以办公为主,建筑师在室外为员工们提供了开阔的花园露台。

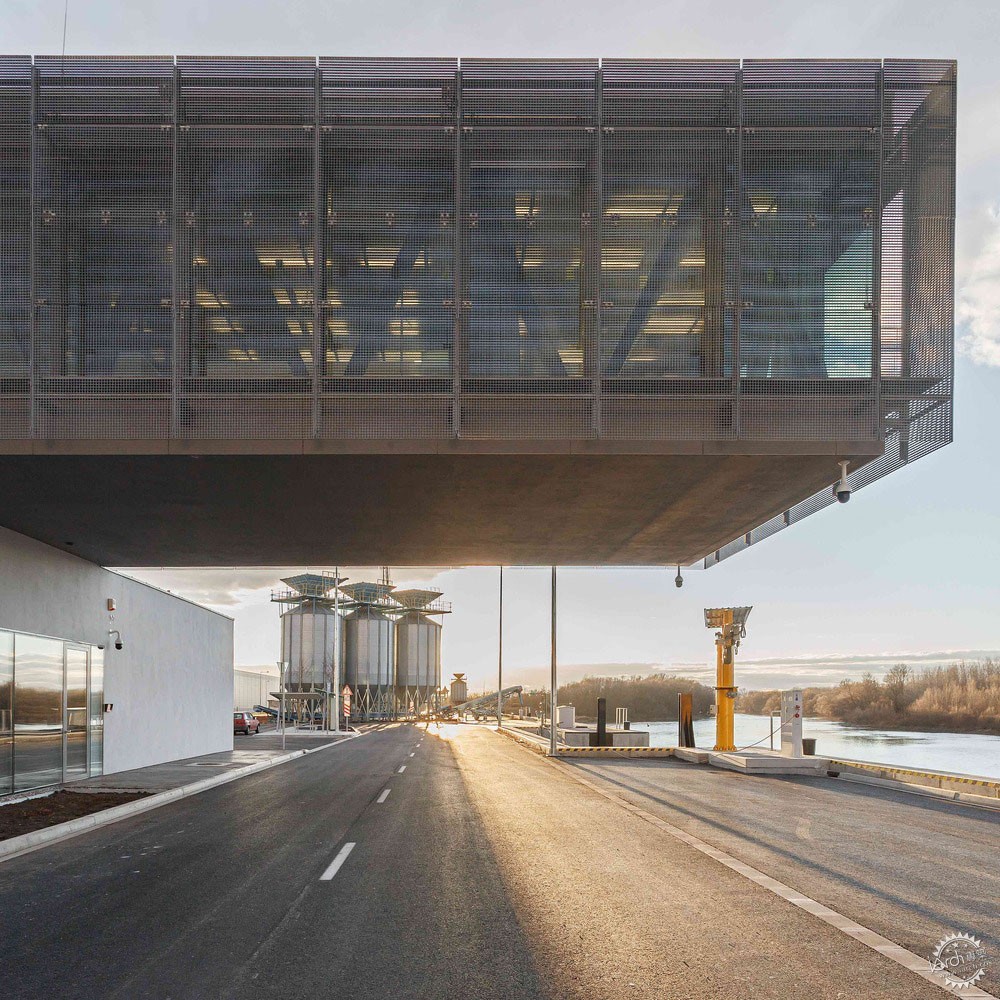

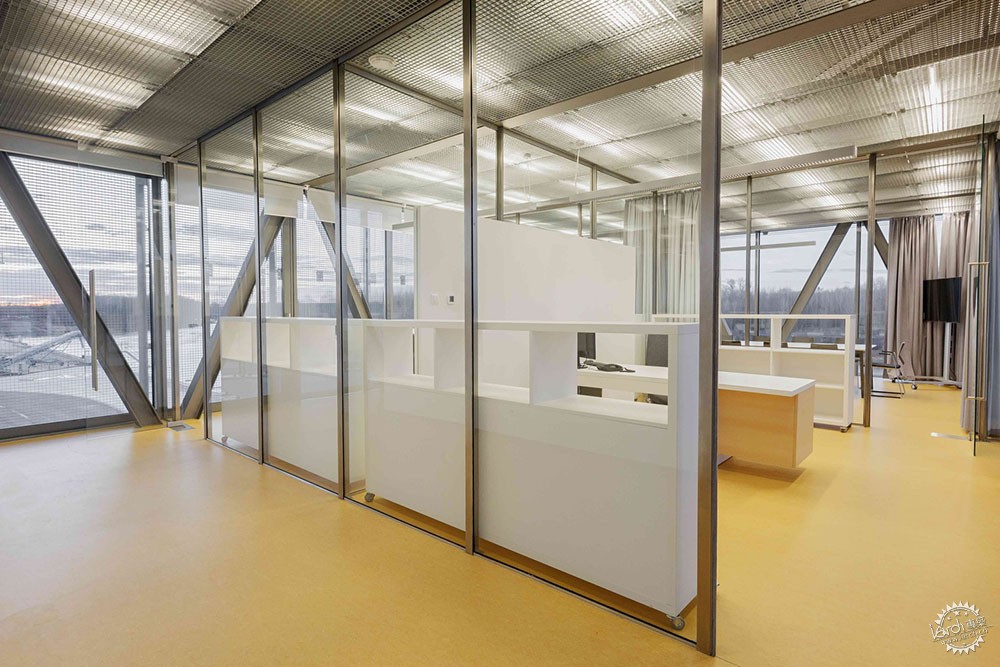

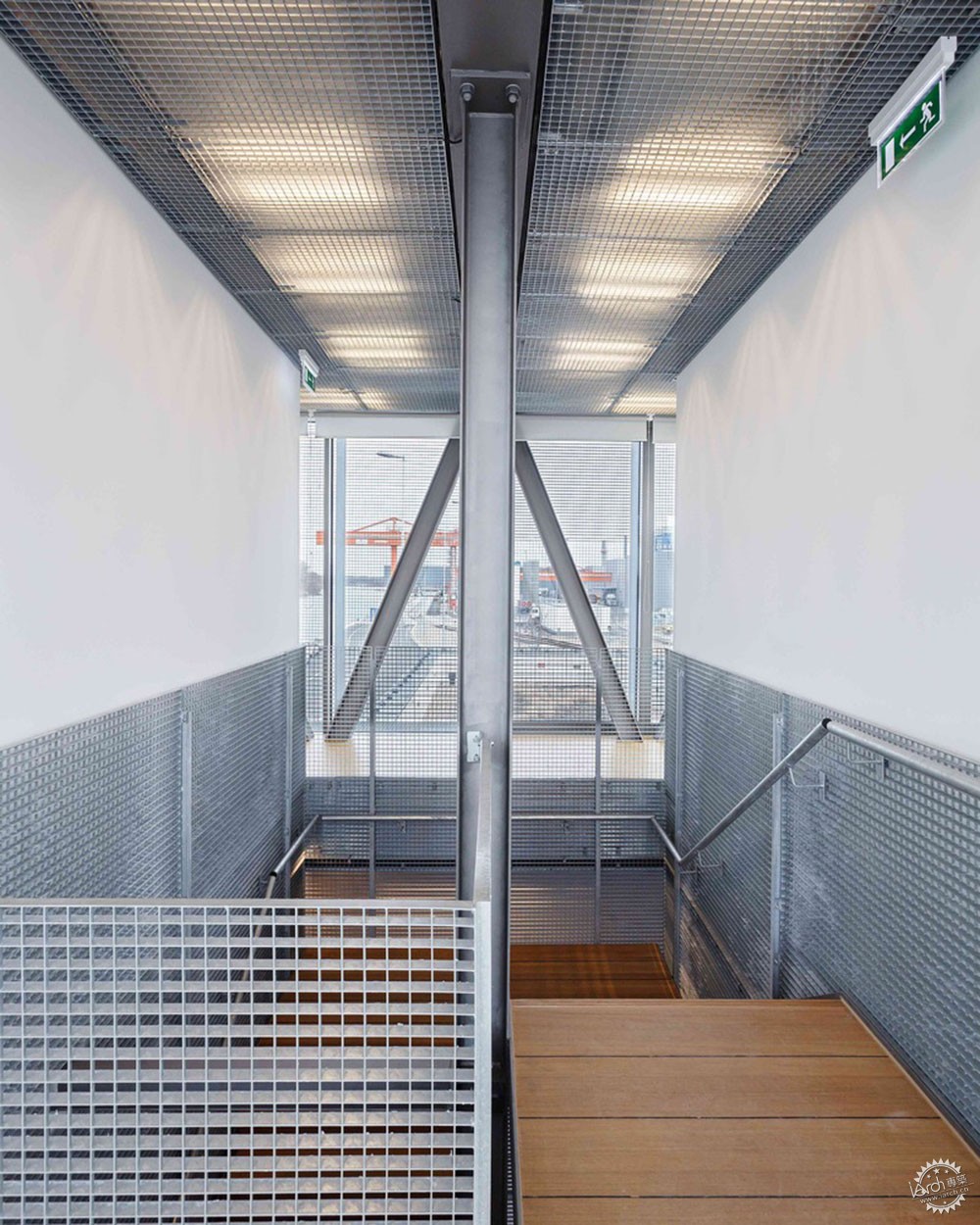

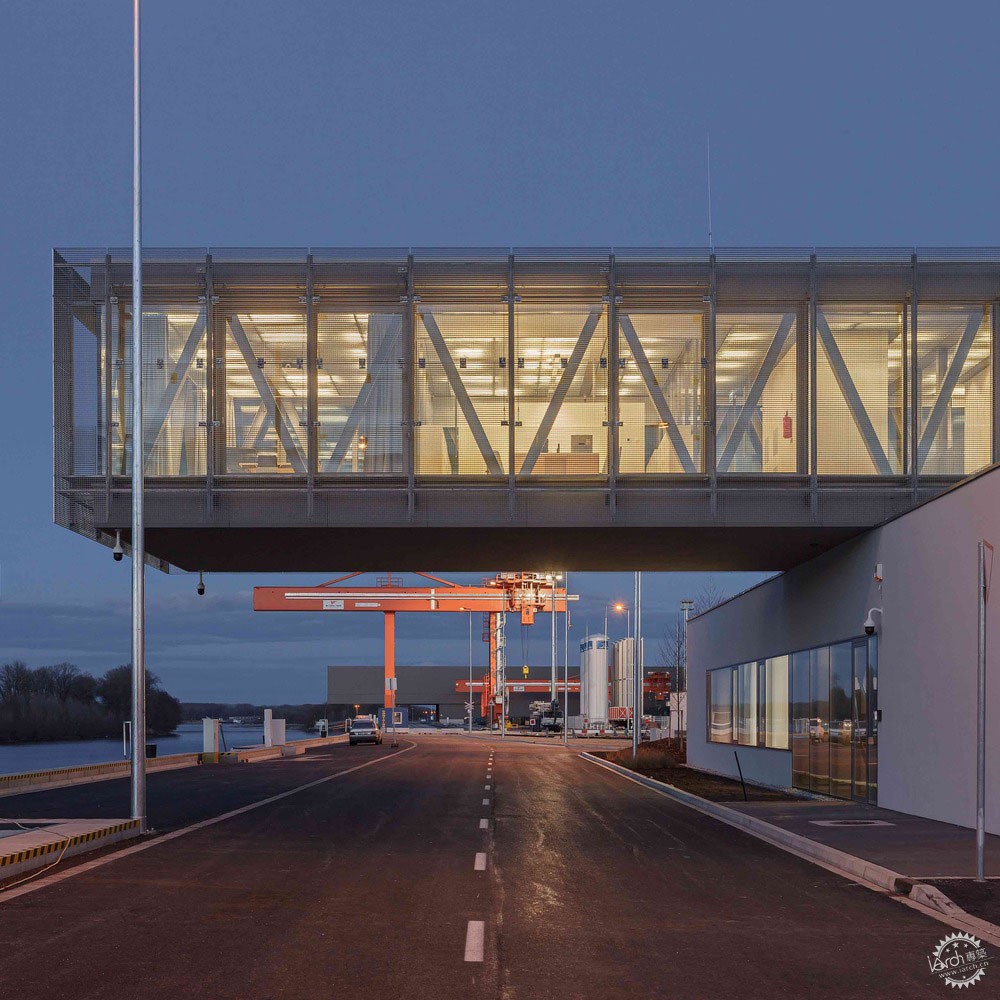

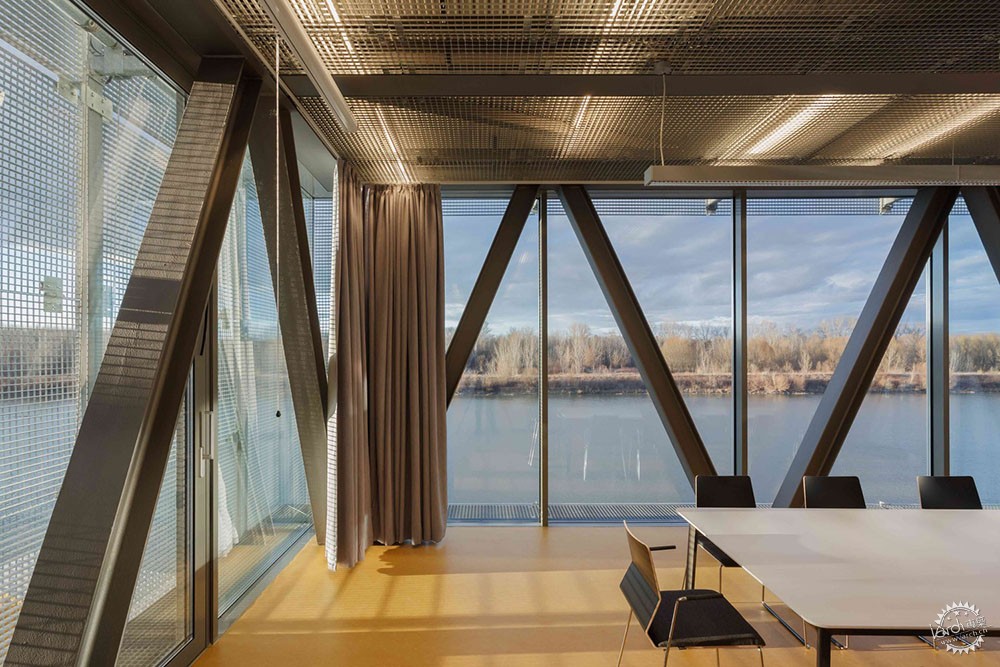

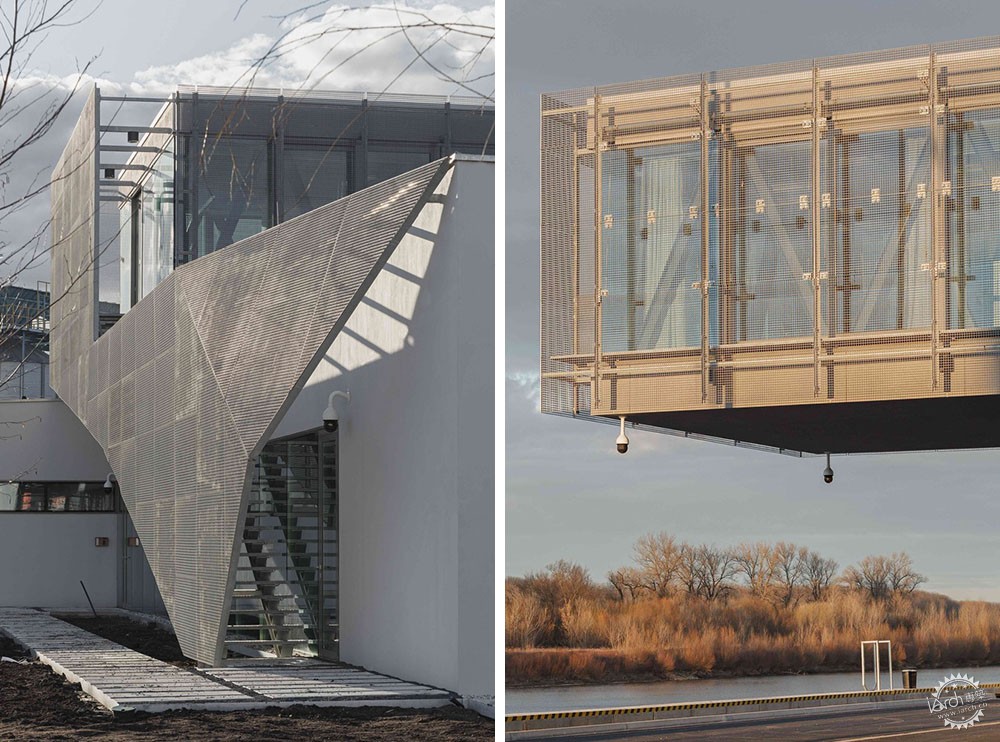

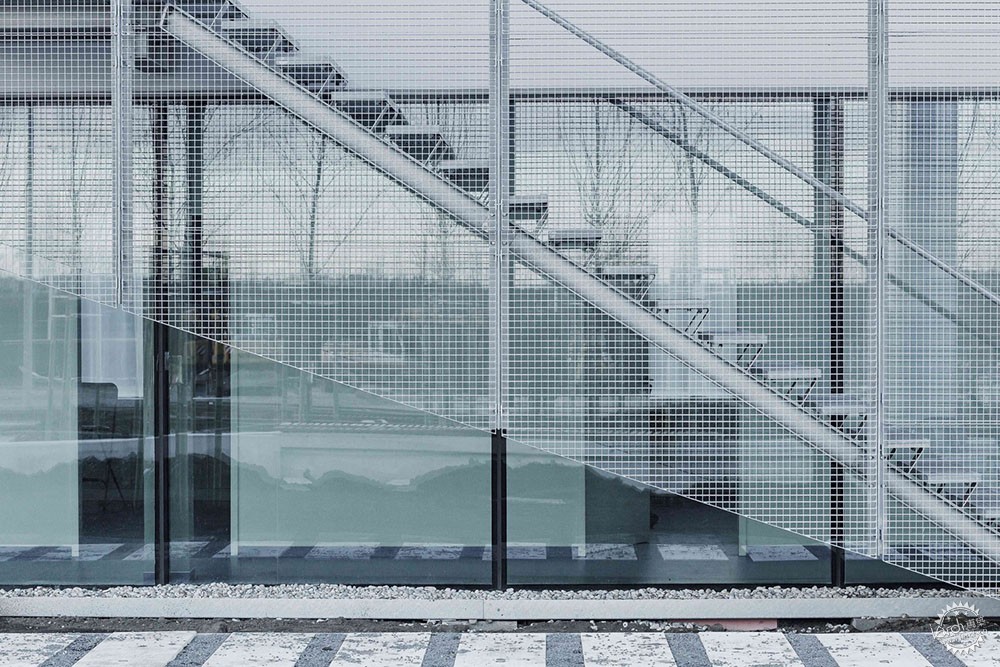

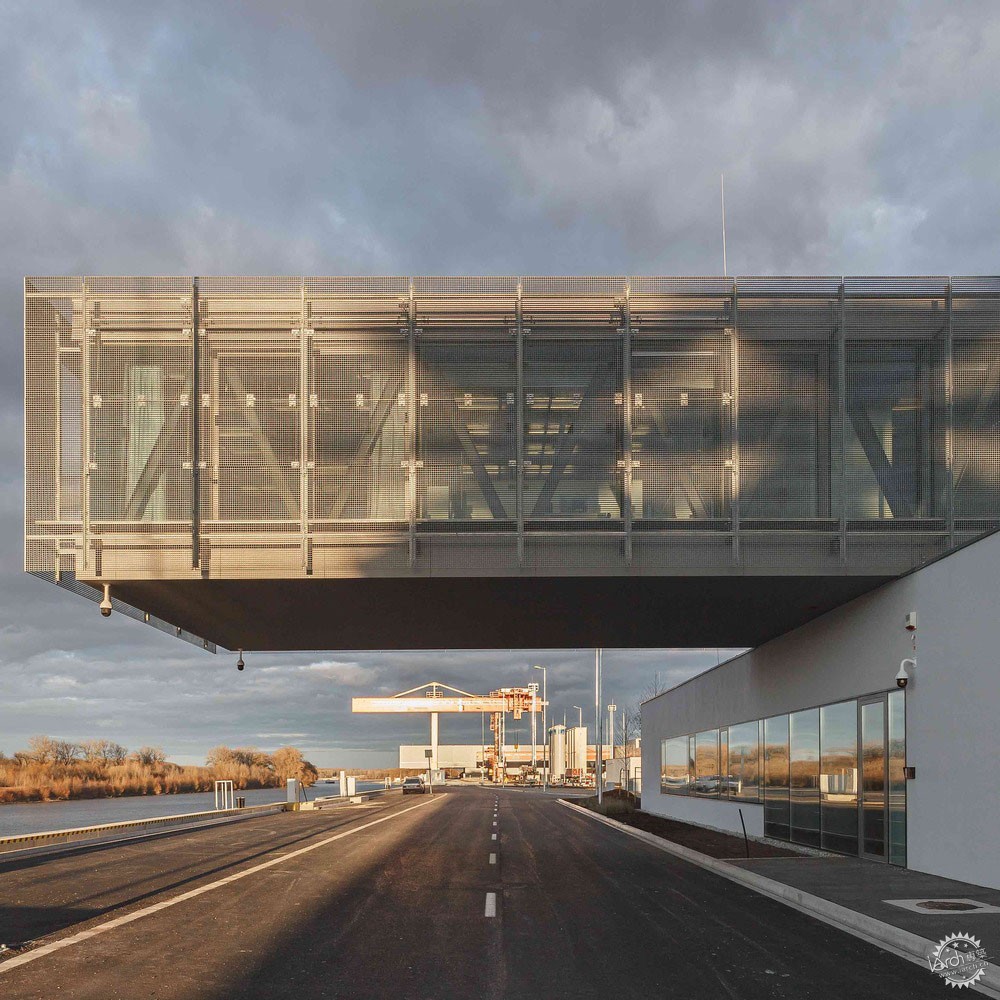

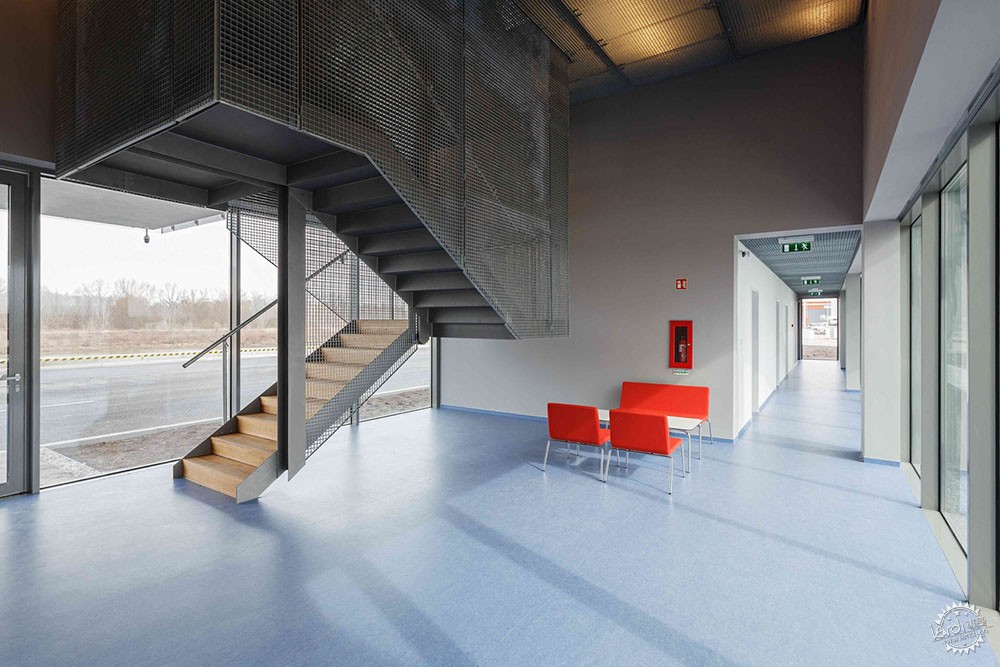

The port also serves as a junction of water, road and rail road transport. The ground floor of the building precisely follows the east-west direction of the railway transport system. The components of the building consistently fits a vertical segmentation. The ground floor is reinforced with a concrete frame, through which the anchoring elements of the cantilever steel staircase can be crossed. There is a glass structure extending over the road to the river side, allowing the user to supervise the work in the harbour, as well as providing a panoramic view of the natural scenery provided by the surrounding area. The ground level office section is where the workers are located, but additional roof top gardens and terraces are provided on the exterior.

面朝大海,自给自足丨匈牙利国家公营商港调度中心第8张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第9张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第10张图片

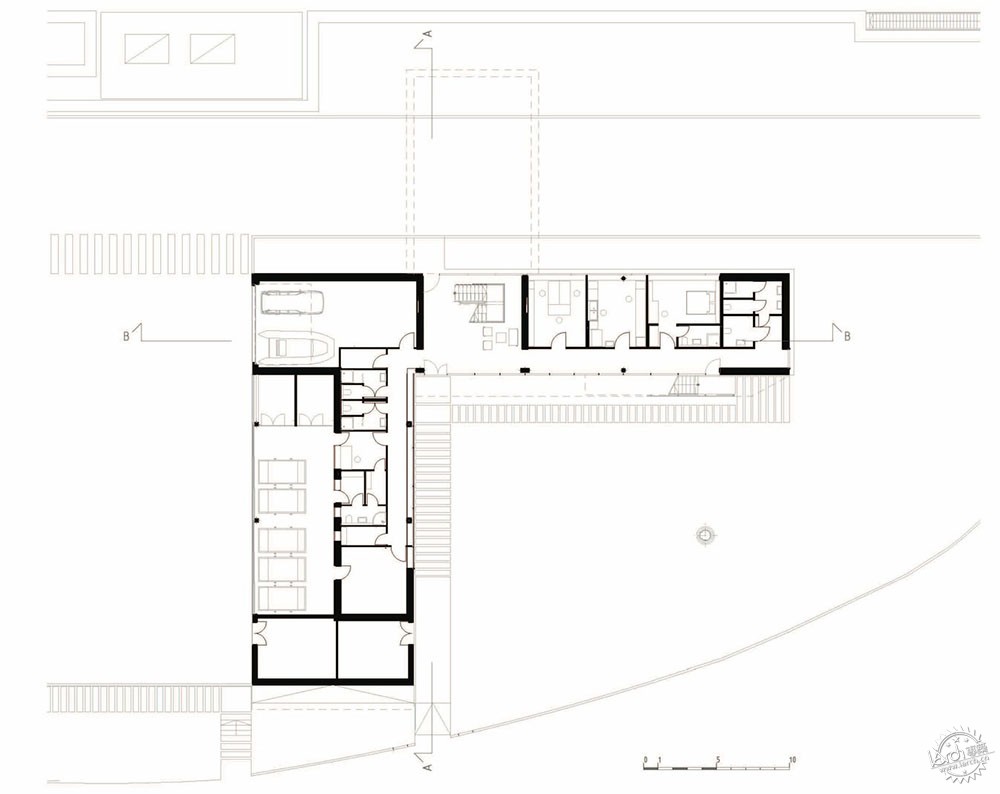

平面图/Floor Plan

面朝大海,自给自足丨匈牙利国家公营商港调度中心第11张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第12张图片

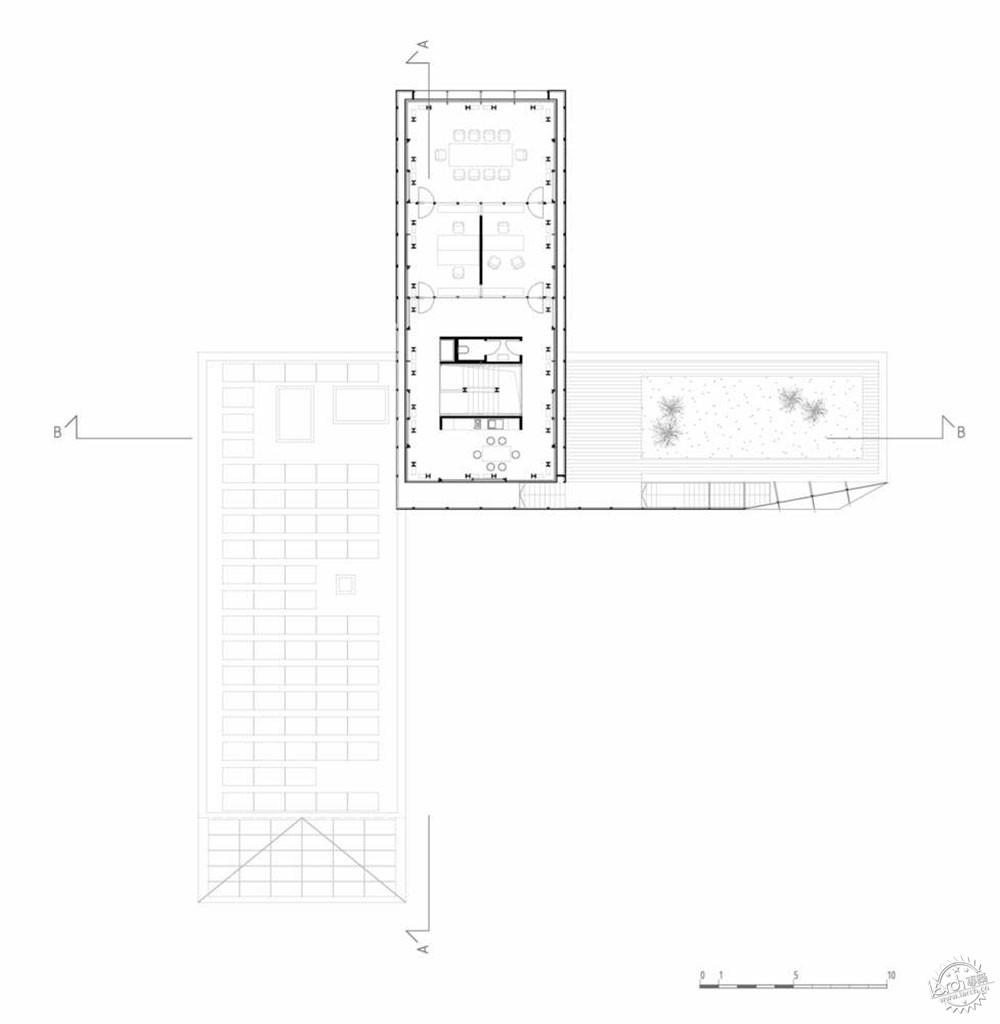

平面图/Floor Plan

建筑按功能划分。与海岸垂直的建筑体量,沿着河流的一侧排布有办公室、客房、行政办公室和一个会议室。所有功能空间可从大堂直接进入。架空空间被一个遮阳设备所包围,这是一个南向的遮阳系统,可以在会议室的两侧打开,可活动的镀锌表面在阳光下为建筑提供了不同的视觉观感。

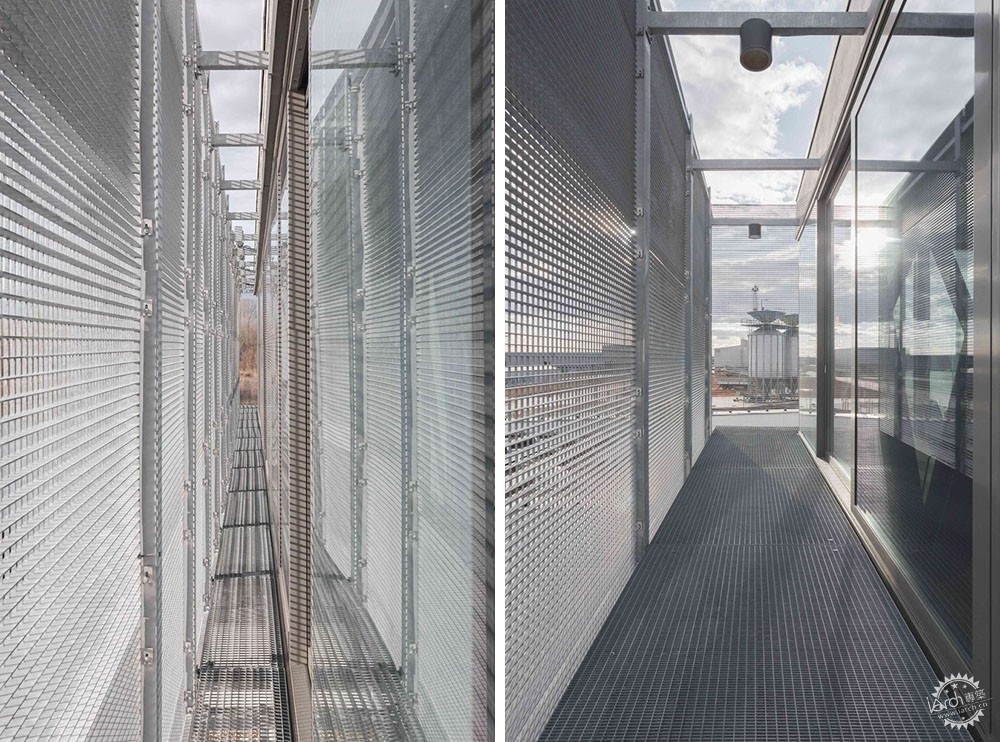

The building is divided according to the function. On the ground floor, in a wedge perpendicular to the shore, there are offices, guest rooms, executive offices and a meeting room, parallel to the river. All functions are directly accessible from the lobby. The elevated floor is surrounded by a sun-shaded side of the building as well as a south-facing shading system that can be opened on both sides of the meeting room. The shaded galvanised surface of the shade under the changing light conditions puts the building in a different garment.

面朝大海,自给自足丨匈牙利国家公营商港调度中心第13张图片
© Danyi Balázs

现代技术在建筑中得到充分应用,让建筑具有高效的节能效果。建筑的热量和电力由环保技术控制。土壤和光伏系统让建筑能够维持自身的耗能,储存的雨水用来保持屋顶花园的水循环系统。大楼南面有一座通讯天线塔,让员工们能够更好地合作,更进一步说,该设施让大楼与海港之间的沟通更加便利。

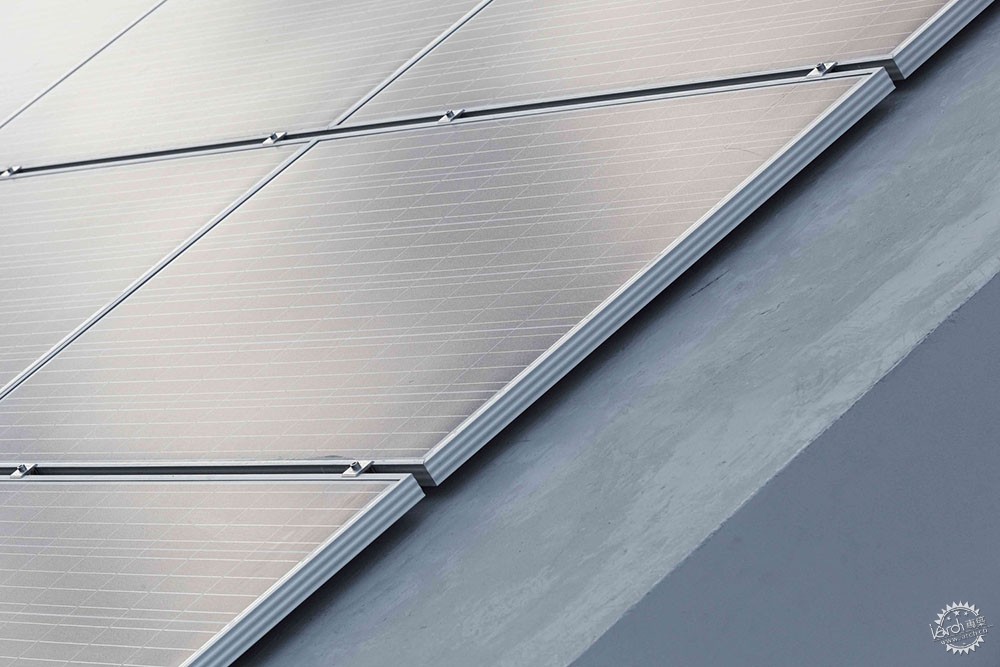

Implementation of modern technology in the design makes the building highly efficient in both energy and labour. The heat and electricity of the building is controlled by environment-aware technologies. When filling the partition, the soil was placed and the photovoltaic system makes the building self-maintained as stored rainwater is used to keep the roof garden alive. A communication antenna tower was implemented on the south side of the building, allowing for workers to better cooperate with each other but more specifically making communication between the building and the harbour easier.

面朝大海,自给自足丨匈牙利国家公营商港调度中心第14张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第15张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第16张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第17张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第18张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第19张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第20张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第21张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第22张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第23张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第24张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第25张图片
© Danyi Balázs

面朝大海,自给自足丨匈牙利国家公营商港调度中心第26张图片

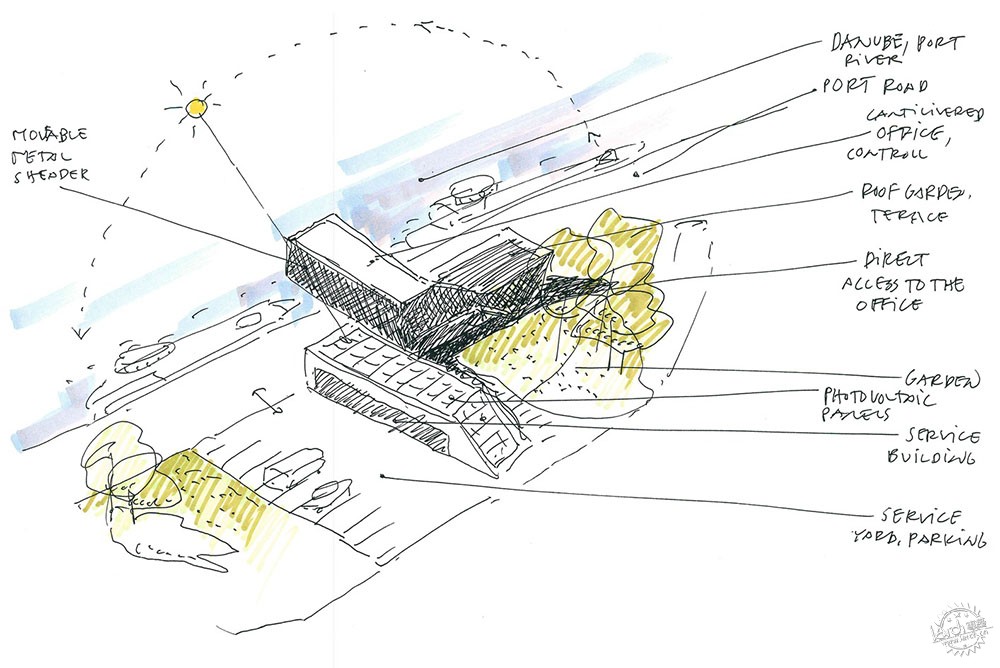

草图/Sketch

面朝大海,自给自足丨匈牙利国家公营商港调度中心第27张图片
草图/Sketch

面朝大海,自给自足丨匈牙利国家公营商港调度中心第28张图片

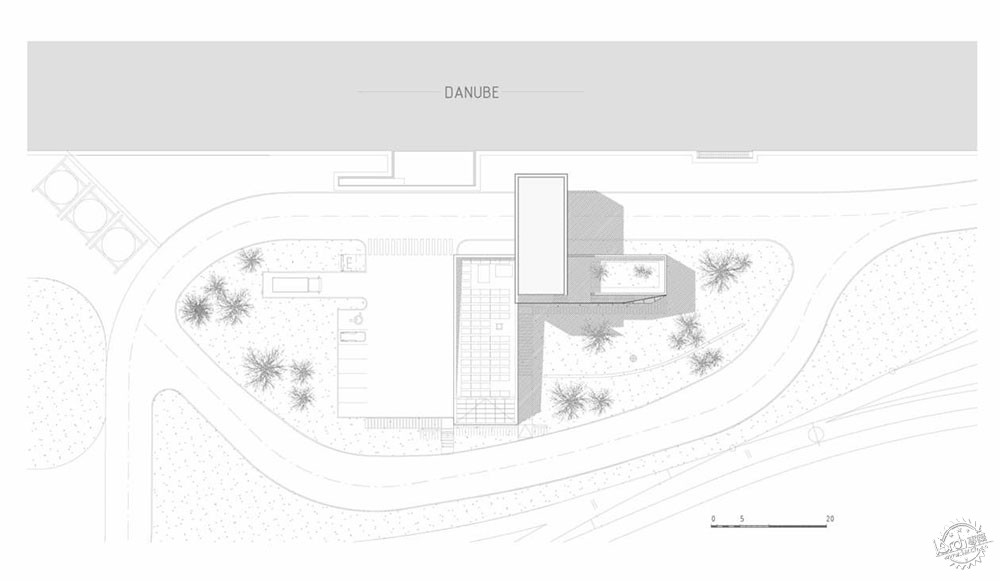

场地平面图/Site Plan

面朝大海,自给自足丨匈牙利国家公营商港调度中心第29张图片

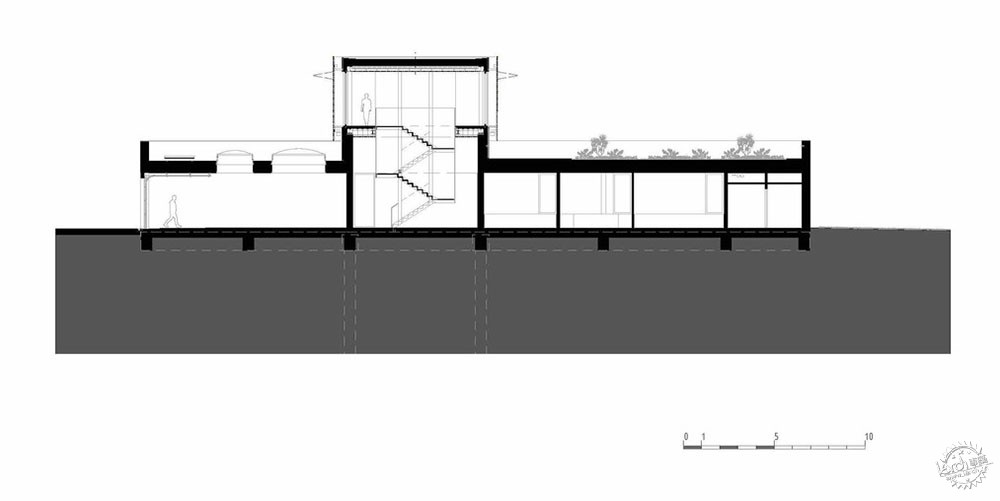

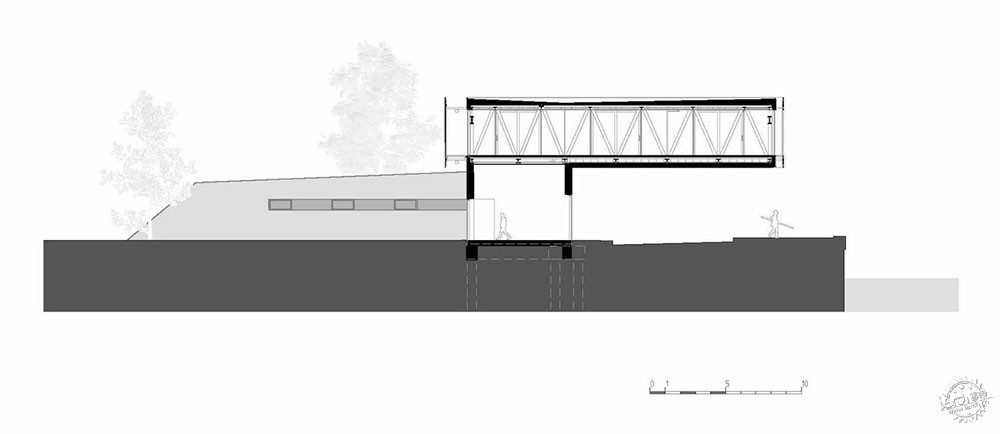

剖面图/Section

面朝大海,自给自足丨匈牙利国家公营商港调度中心第30张图片
剖面图/Section

面朝大海,自给自足丨匈牙利国家公营商港调度中心第31张图片

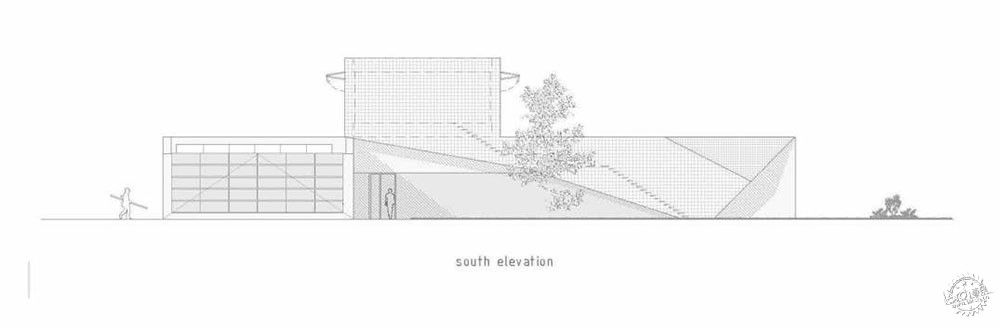

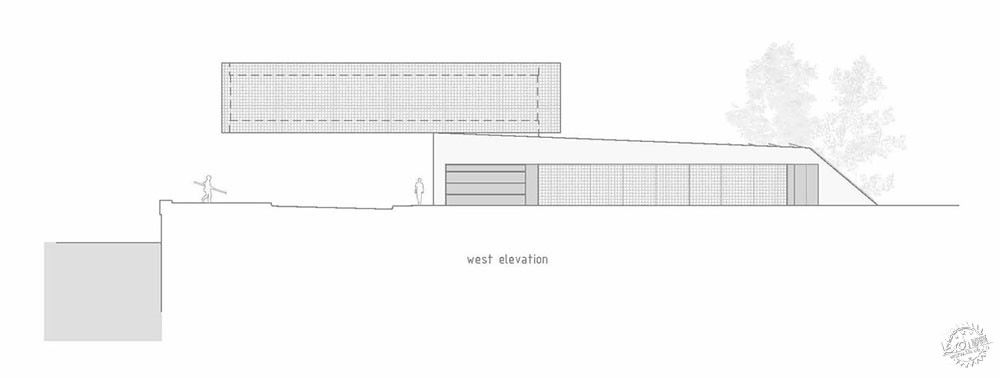

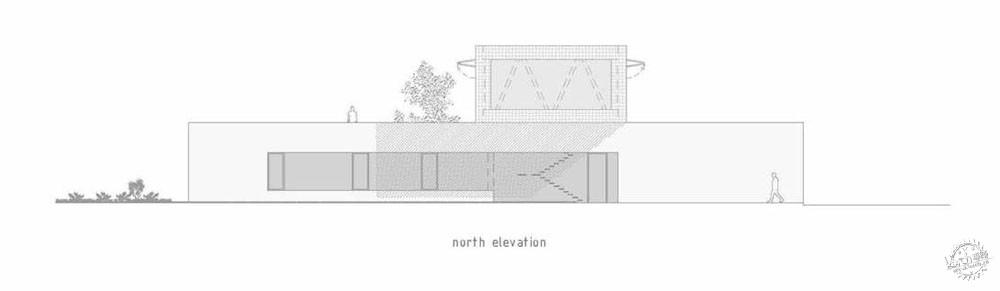

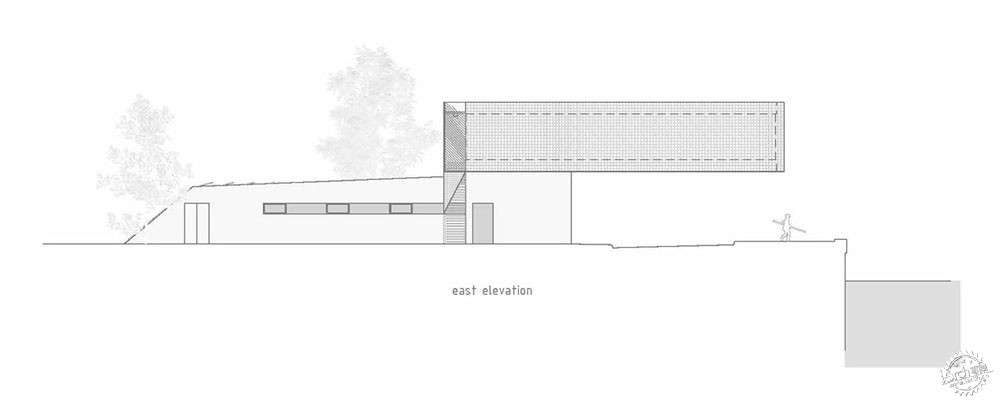

立面图/Elevation

面朝大海,自给自足丨匈牙利国家公营商港调度中心第32张图片
立面图/Elevation

面朝大海,自给自足丨匈牙利国家公营商港调度中心第33张图片
立面图/Elevation

面朝大海,自给自足丨匈牙利国家公营商港调度中心第34张图片
立面图/Elevation

面朝大海,自给自足丨匈牙利国家公营商港调度中心第35张图片

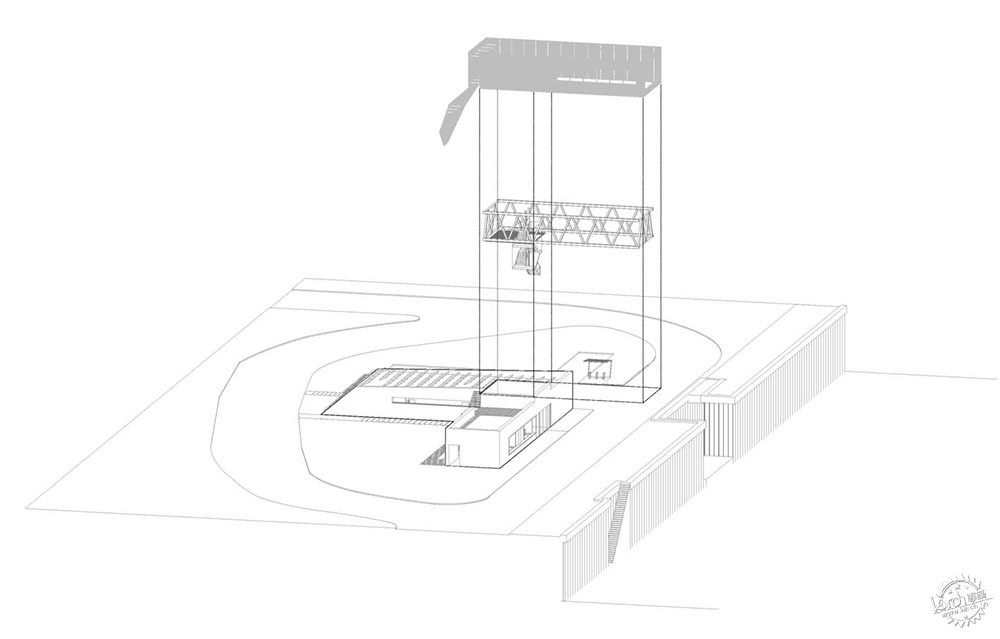

轴测图/Axonometric

建筑设计:sporaarchitects
地点:匈牙利国家公营商港调度中心
主创建筑师:ádám Hatvani, Attila Korompay, Tibor Dékány
面积:708平方米
项目时间:2016年
照片:Balázs Dany
总体设计:SBS-KOMIR Kft; András Benedek
设想:Bence Várhídi
结构设计:CEOS Kft
环保部:Kristályklíma Plusz Kft
电气设计:HAP Kft; WTF Kft
景观设计:VK Studio Kft
能源消耗:66,5 kWh/m2a

Architects:sporaarchitects
Location:National Public Port Győr-Károlyháza, Kikötő l. 0691/4 hrsz., l 0691/4 hrsz., 9011 Hungary
Architects in Charge:ádám Hatvani, Attila Korompay, Tibor Dékány
Area:708.0 m2
Project Year:2016
Photographs:Balázs Dany
General Design:SBS-KOMIR Kft; András Benedek
Visualisation:Bence Várhídi
Structural Design:CEOS Kft.
MEP:Kristályklíma Plusz Kft.
Electrical Design:HAP Kft; WTF Kft
Landscape Design:VK Studio Kft.
Energy Consumption:66,5 kWh/m2a
