哈扎尔住宅楼/S-A-L设计工作室第1张图片

Khazar Residential Building

由专筑网谢剑辉,刘庆新编译

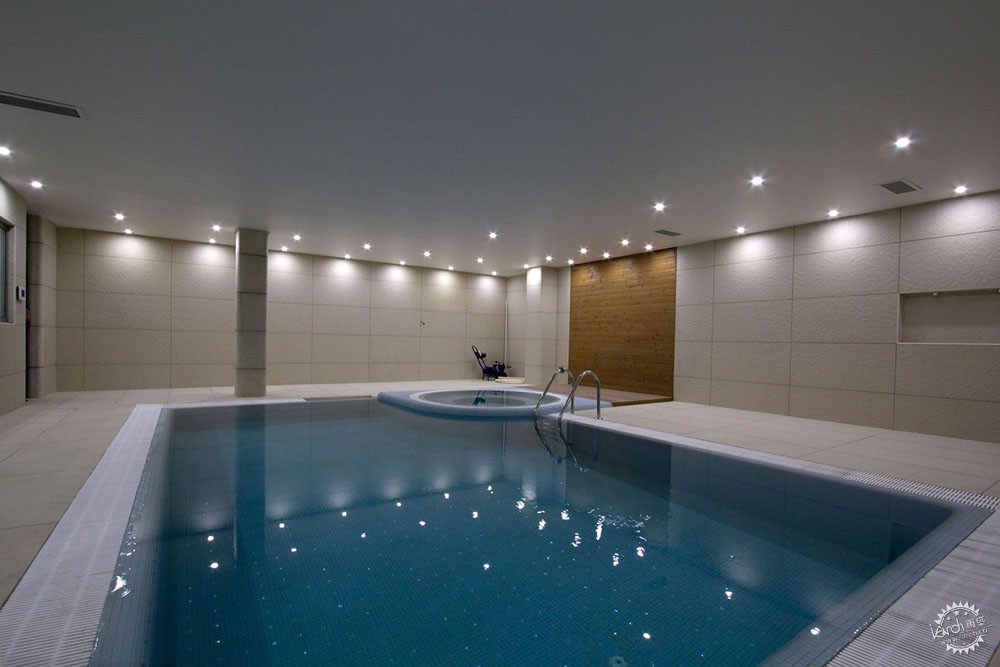

来自建筑事务所的描述。项目场地位于德黑兰北部附近,这个地方有着密集的建筑群和狭窄的小巷。因此,项目总用地面积为350平方米,可是按照市政府为了拓宽街巷的规范,其中约有48平方米被浪费了。此外业主要求设置体育运动场所,这会使得建筑非常局促,而且停车场也难以设计,建筑体量也会在造型上受到限制。

From the architect. Project’s site is located in one of North Tehran vicinities which comprises of condensed cluster buildings and narrow alleys. Therefore, approximately an amount of 48 sq. m. of the total land area of 350 sq. m. was neglected by the municipality code in order to widen the alley. In addition to the client’s required physical program, this issue led the building to be extremely compressed, as well as parking lots to be hard to design and the mass of building to be solid for shaping.

哈扎尔住宅楼/S-A-L设计工作室第2张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第3张图片
Diagram/图解

而最后的设计结果是,这个建筑外形与众不同,相比于普通的公寓,它有各种样式不一的阳台和变化的天际线,以及对主立面起着决定性作用的新颖的几何样式。该样式提供了最开阔的视野,也让自然光得以进入到内部空间,而这个样式给人难以捉摸的错觉,让观者看不透楼层布局和内部结构,同时,它通过重新编排了楼层的横向线条、竖向线条和天际线,产生了创新的景观布局,而这也使得建筑成为一个单元,整体挑战着观者的感知。

Consequently, Building’s outstanding features has been restricted to variety of terraces, altered skyline in comparison with regular flats and a new geometrical patterns which dominate the main facade. The said pattern provides maximum view and natural light into interior spaces, while illusively does not let observer recognize story arrangements and inner structures; in the meanwhile, it makes new and different view layout, by rearranging the floor story levels, horizontal lines and skyline; and this may lead the building to be realized as a unity so long as challenging the observers’ perception.

哈扎尔住宅楼/S-A-L设计工作室第4张图片
© Saeed Pirasteh

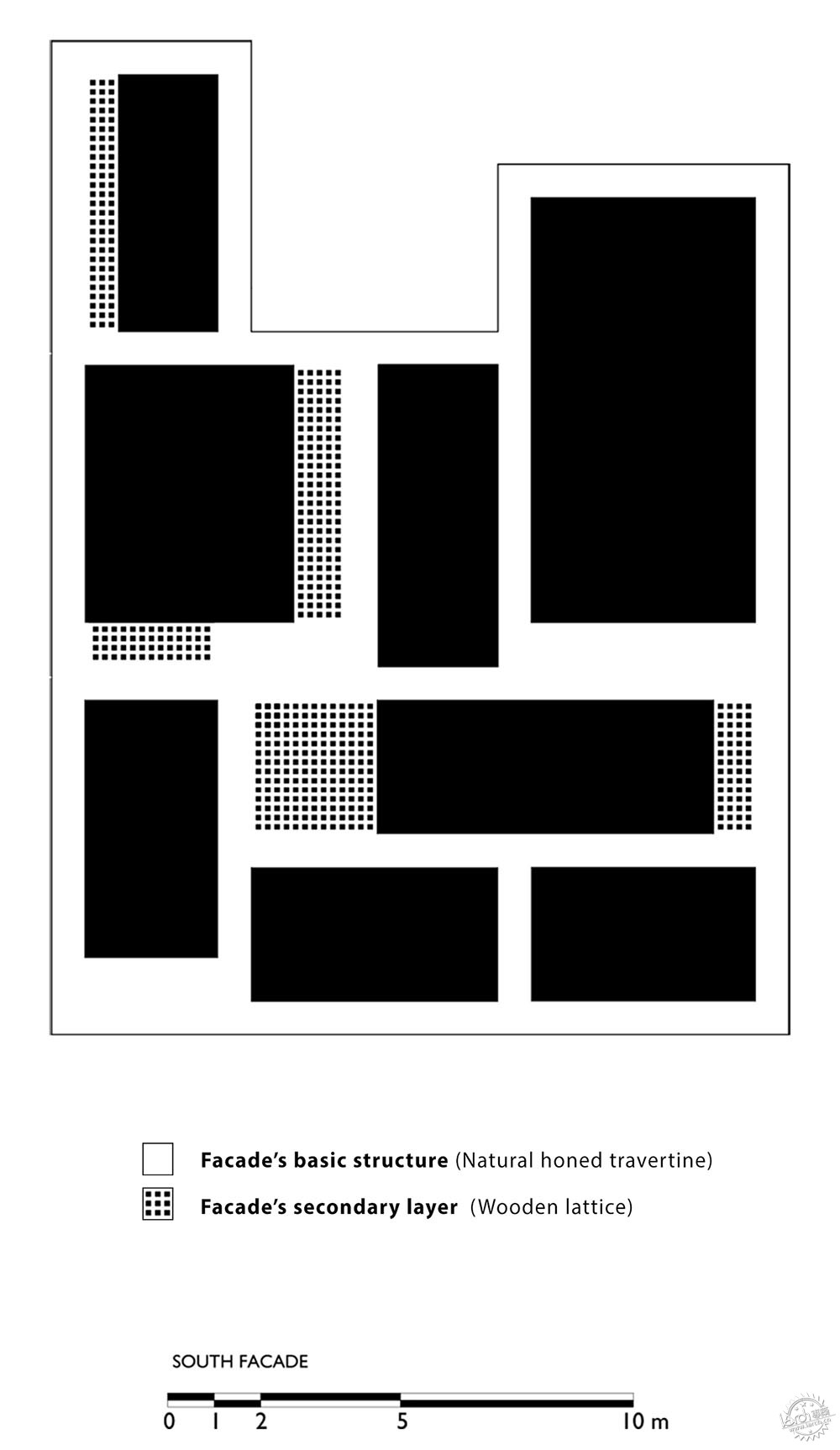

建筑立面的基本结构由大型的矩形框架构成,框架上覆以天然钙华石。而二级框架用了与主材料近似样式和颜色的木质多孔板。图案上,方形小孔的格栅让人联想到极具人文价值的古典波斯建筑。

Facade’s basic structure consisted of large-scale rectangular frames covered by natural honed travertine. The secondary effective layer outlines wooden cribriform panels used in similar pattern and color with the main material. Geometrically, the lattice has square holes in small-scale which inspires ancient Persian architecture with its famous humanized values.

哈扎尔住宅楼/S-A-L设计工作室第5张图片
Ground Floor Plan/底层平面图

哈扎尔住宅楼/S-A-L设计工作室第6张图片
1st / 2nd / 5th Floor Plan/一、二、五层平面图

哈扎尔住宅楼/S-A-L设计工作室第7张图片

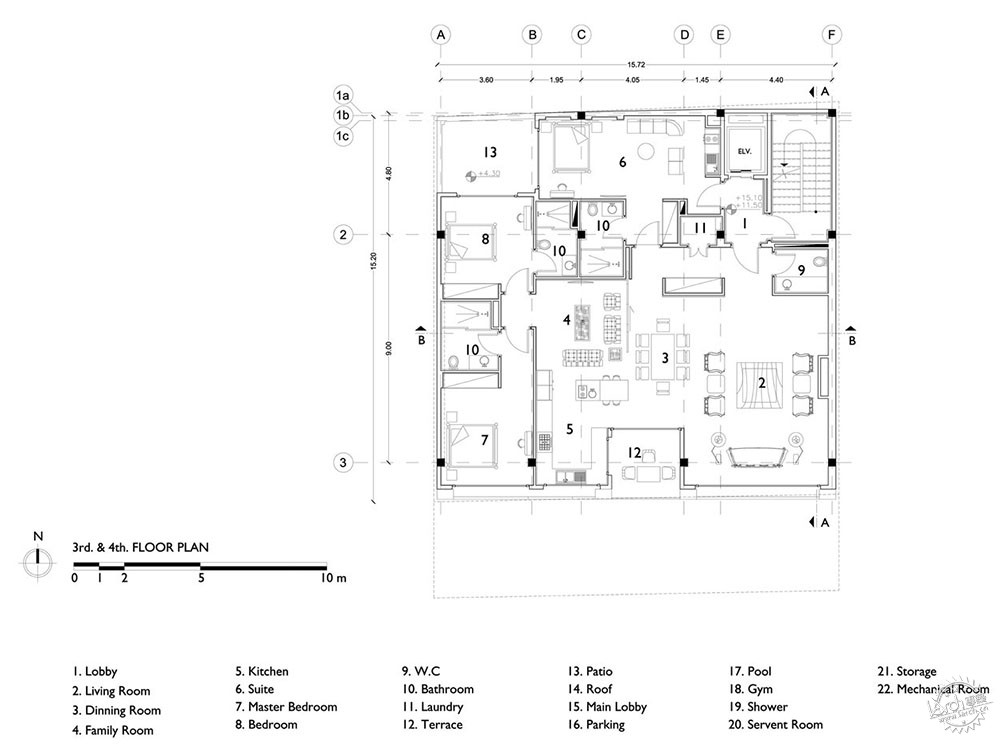

3rd / 4th Floor Plan/三四层平面图

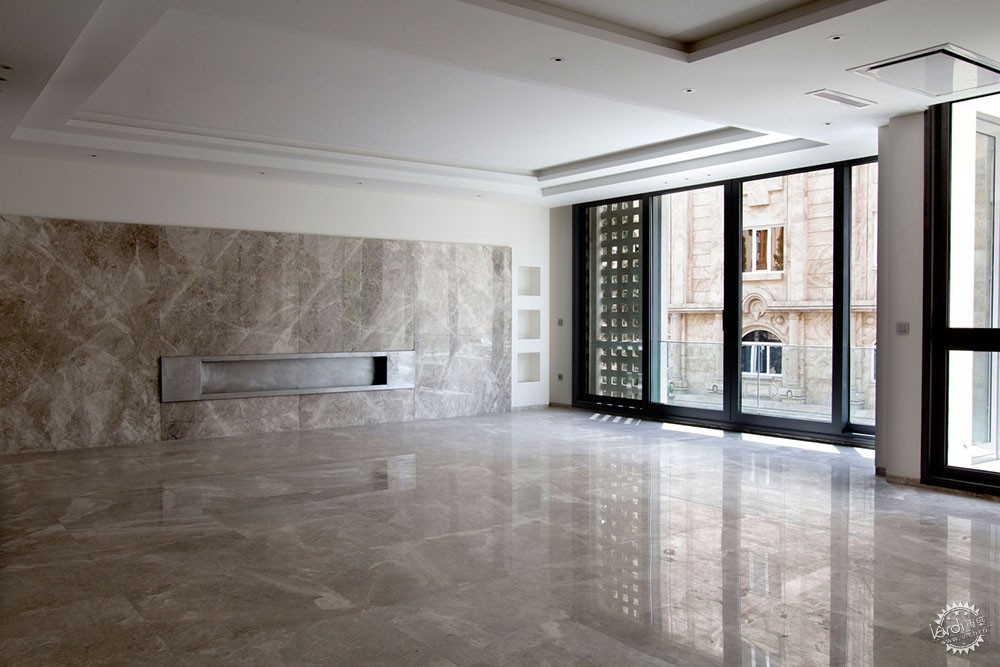

另一方面,室外环境的光线通过格栅不断传播进室内空间,而房子内的光亮由光影产生的高次谐波效应调节着。立面的木格栅主体以及大面积的天然石材,给室内效果营造了一个安宁祥和的居住环境。

On the other hand, conducting light through the lattice imparts the outer sense continuously into interior space, whereas lights inside the house would be adjusted due to the harmonic moves by casting shadows and lights. Inside the house has been influenced by façade’s theme using wood and natural stone in large tiles and vast areas, which promotes a calm and peaceful place to live .

哈扎尔住宅楼/S-A-L设计工作室第8张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第9张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第10张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第11张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第12张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第13张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第14张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第15张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第16张图片
© Saeed Pirasteh

哈扎尔住宅楼/S-A-L设计工作室第17张图片
1st Floor plan/一层平面图

哈扎尔住宅楼/S-A-L设计工作室第18张图片
2nd Floor Plan/二层平面图

哈扎尔住宅楼/S-A-L设计工作室第19张图片
Roof Plan/楼顶平面图

哈扎尔住宅楼/S-A-L设计工作室第20张图片

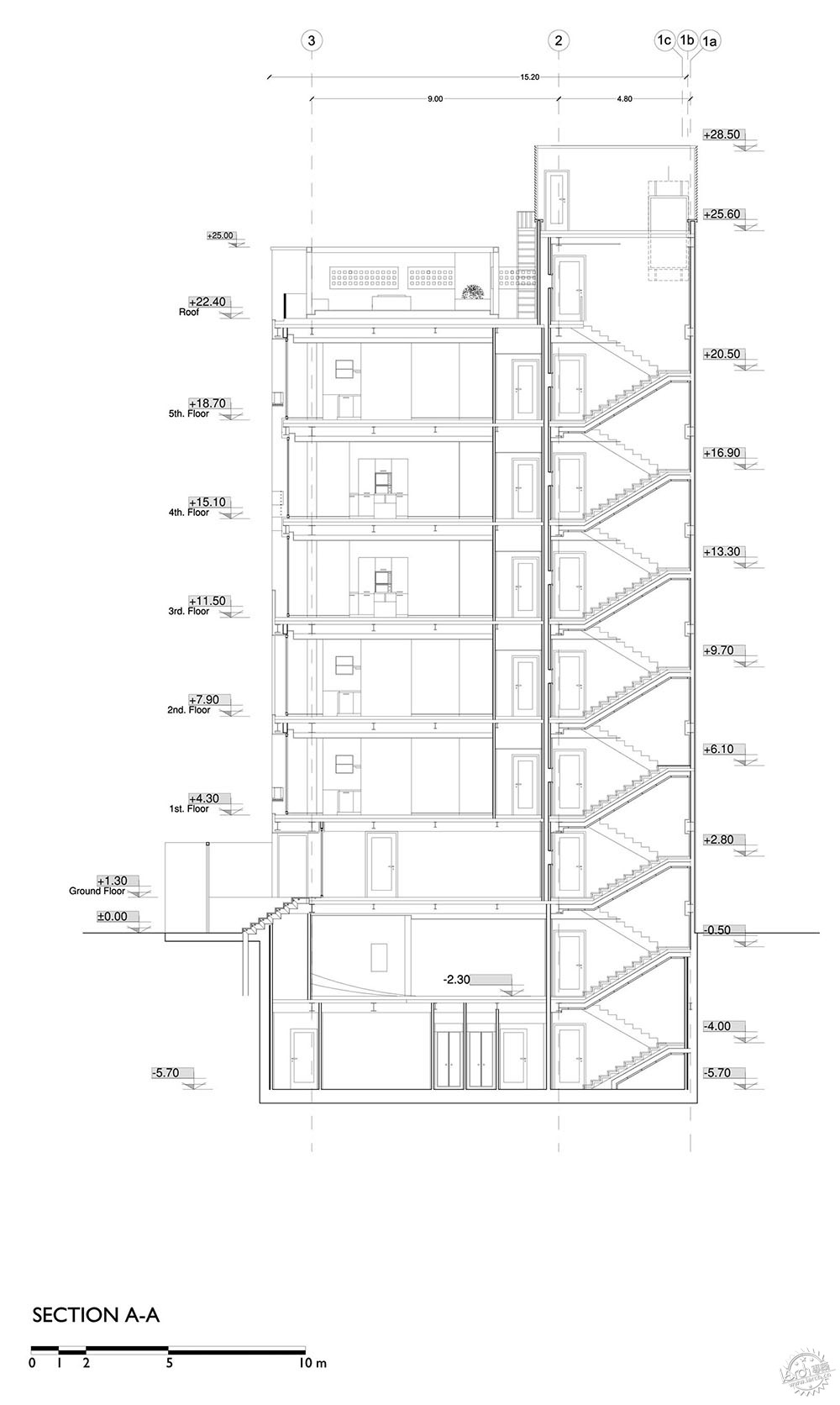

Section/剖面图

哈扎尔住宅楼/S-A-L设计工作室第21张图片
Section/剖面图

哈扎尔住宅楼/S-A-L设计工作室第22张图片
Elevation/立面图

哈扎尔住宅楼/S-A-L设计工作室第23张图片
Structure/结构

哈扎尔住宅楼/S-A-L设计工作室第24张图片
Diagram/图解

哈扎尔住宅楼/S-A-L设计工作室第25张图片
© Saeed Pirasteh

建筑设计:S-A-L设计工作室
项目位置:伊朗,德黑兰
项目负责人:Behrad Tondravi
项目面积:1900.0平方米
项目时间:2015年
摄影:Saeed Pirasteh

Architects: S-A-L Design Studio
Location: Tehran, Iran
Architect in Charge: Behrad Tondravi
Area: 1900.0 sqm
Project Year: 2015
Photographs: Saeed Pirasteh
