多布林幼儿园/ ATELIER 8000第1张图片


Kindergarten in Dobrin

由专筑网Brick,Vigo编译

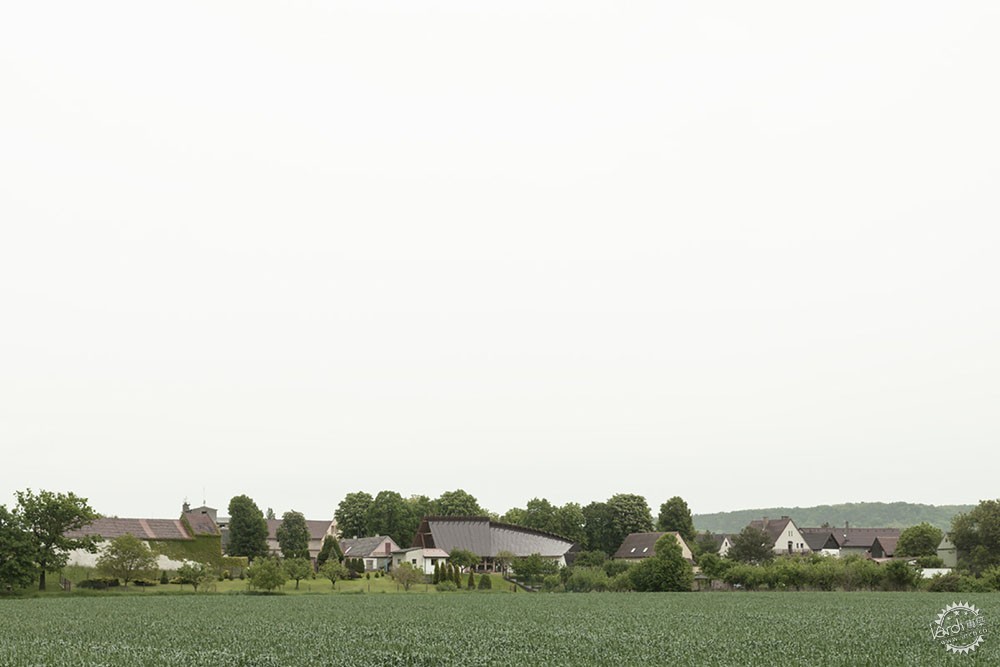

来自事务所的描述。社区决定将场地开发成为容纳30名儿童的幼儿园,是村里最好的一所幼儿园。它是古老村庄里的一块空地,能够看到河流和相应的花园。

From the architect. The site the community decided to develop for a kindergarten for 30 children is one of the nicest in the village. It is a vacant lot at the historical village green with a view to the river and a corresponding area for a garden.

多布林幼儿园/ ATELIER 8000第2张图片
© Ondřej Bouška

多布林幼儿园/ ATELIER 8000第3张图片
© Ondřej Bouška

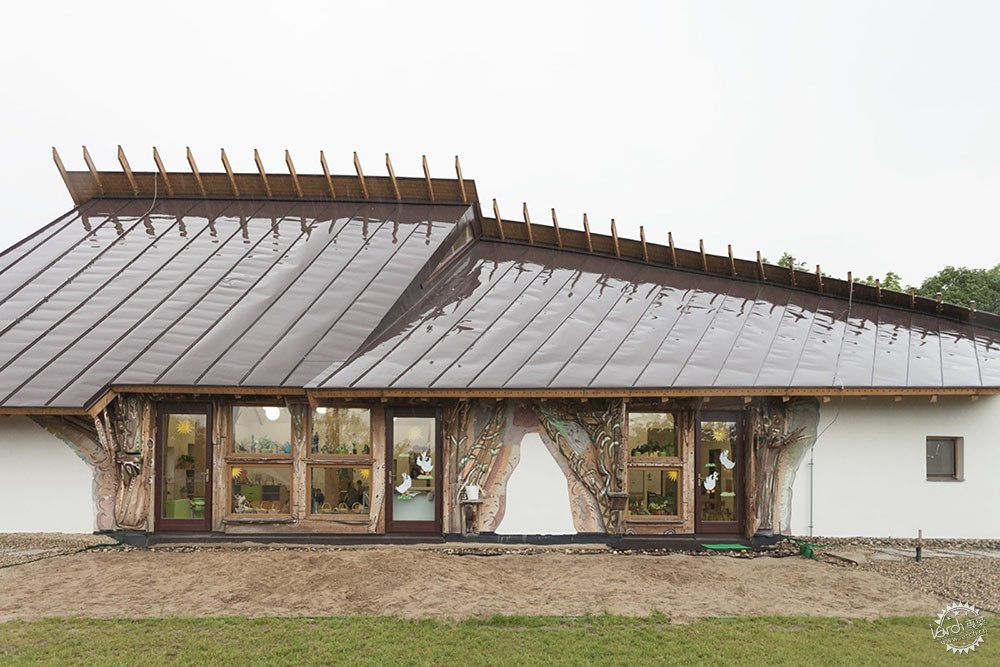

基本的愿景是让幼儿园与乡村共存。外形理念的开发遵守乡土建筑的历史观念。颜色和材料设计建立在本地守护神的基础上,反映在建筑的朴实特点中。

The basic vision was to situate the kindergarten in the vicinity, in symbiosis with the country and village. The formal concept was developed complying with the historical concept of vernacular architecture. Colour and material design builds on the local genius loci reflected in the ′earthy′ character of the building.

多布林幼儿园/ ATELIER 8000第4张图片
© Ondřej Bouška

从抽象的方面来说,该建筑基于带有坡顶的经典乡村住宅的设计理念。乡土元素也用于富含雕塑的立面上,参考了当地传统建筑的装饰。雕塑师Jiri Vorel和对这个地点有个人情感。

In terms of abstraction, the building is based on the concept of a classic country house with a hip roof. Vernacular elements are also used on the façade that is rich with statuary referring to decorativeness of traditional architecture in the area. The sculptor is Jiri Vorel who has personal bond to this location.

多布林幼儿园/ ATELIER 8000第5张图片
© Ondřej Bouška

多布林幼儿园/ ATELIER 8000第6张图片

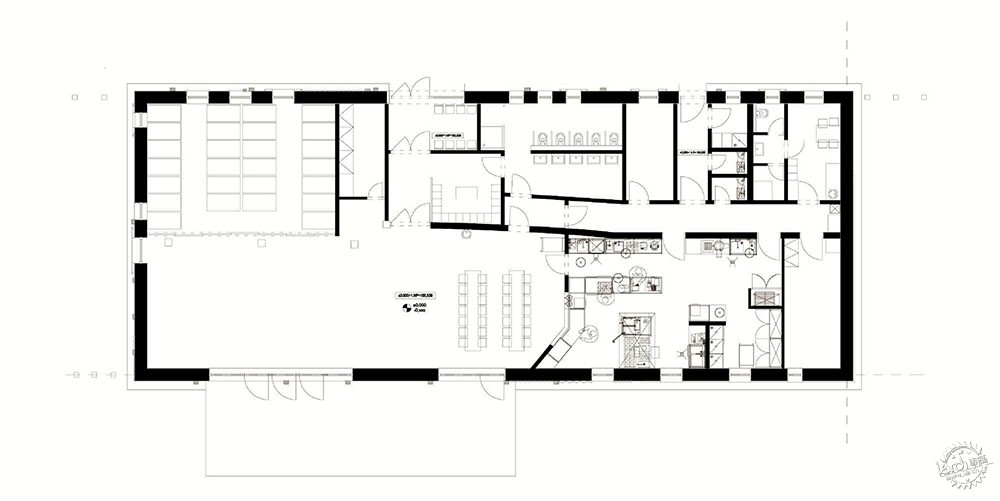

Floor Plan/楼层平面图

多布林幼儿园回归童话世界,回归儿童世界。它关心儿童的愿景和愿望。它应该类似小“屋”,提供和睦和温暖的感觉,能够很好嬉戏。室内布置的空间概念尽可能开放,将自身确定为不同于通常枯燥的捷克幼儿园。

The kindergarten in Dobrin is a return to the world of fairy-tales, to the world of children. It respects their visions and wishes; it should resemble a small ′cottage′ that provides a harmony, warmth, and possibility to have a good romp. The spatial concept of the interior layout works with openness as much as possible and identifies itself as different compared with usually sterile Czech kindergartens.

多布林幼儿园/ ATELIER 8000第7张图片
© Ondřej Bouška

儿童能在整面墙上涂写而不受责罚。儿童成为空间的主人,可以自由转变。没有规定空间应该如何对待,只有一个框架,使用者为自己确立它的氛围。幼儿园将遵循理解的观念继续发展和转变。

A child can scrawl over a wall and not suffer for doing so. A child becomes the master of the space it may freely transform. No rules exist ordering how the space should be treated, just a framework whose atmosphere the users establish for themselves. The kindergarten will keep on developing and transforming following this concept of understanding.

多布林幼儿园/ ATELIER 8000第8张图片
© Ondřej Bouška

多布林幼儿园/ ATELIER 8000第9张图片
© Ondřej Bouška

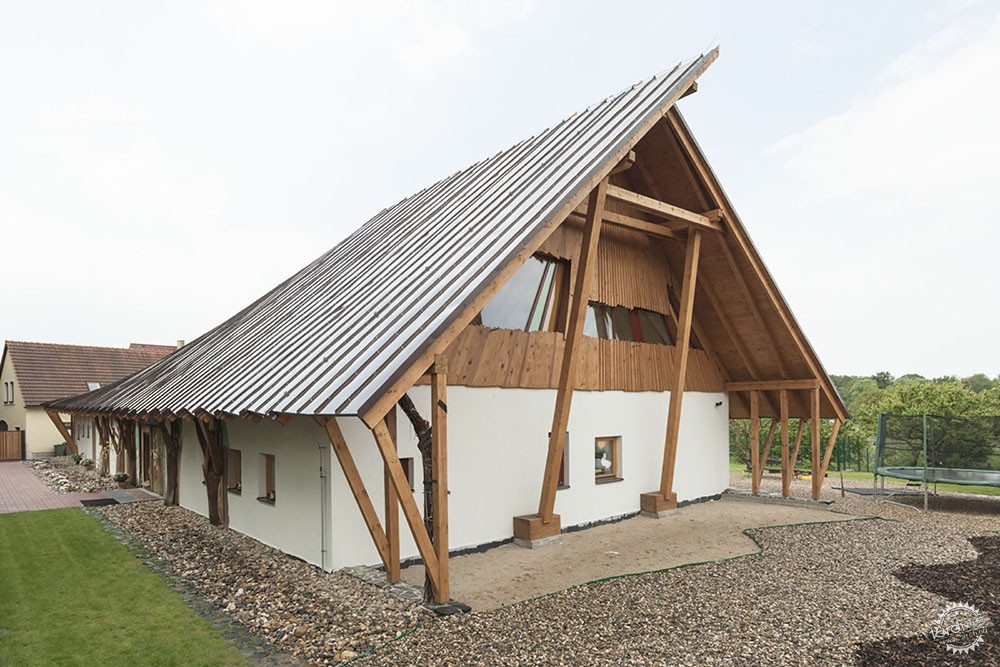

幼儿园被花园包围,花园的果树和场地东边平行。它是一层的方形建筑,屋顶是与众不同的建筑和识别元素。北侧有古典的坡顶,倾斜35度;南侧缓慢朝一面墙下斜。

The kindergarten is surrounded by a garden with fruit trees positioned parallel with the east border of the lot. It is a one-story building of a rectangular footprint. The roof is a distinguished architectural and identifying element. At the north side, it is a classical hip roof with a pitch 35°; towards the south, it slowly pitches down towards one wall.

多布林幼儿园/ ATELIER 8000第10张图片
© Ondřej Bouška

多布林幼儿园/ ATELIER 8000第11张图片

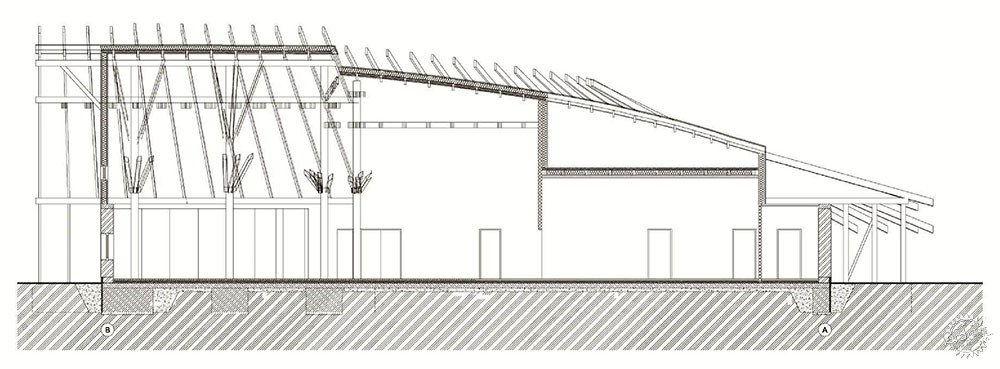

Section 1/剖面图1

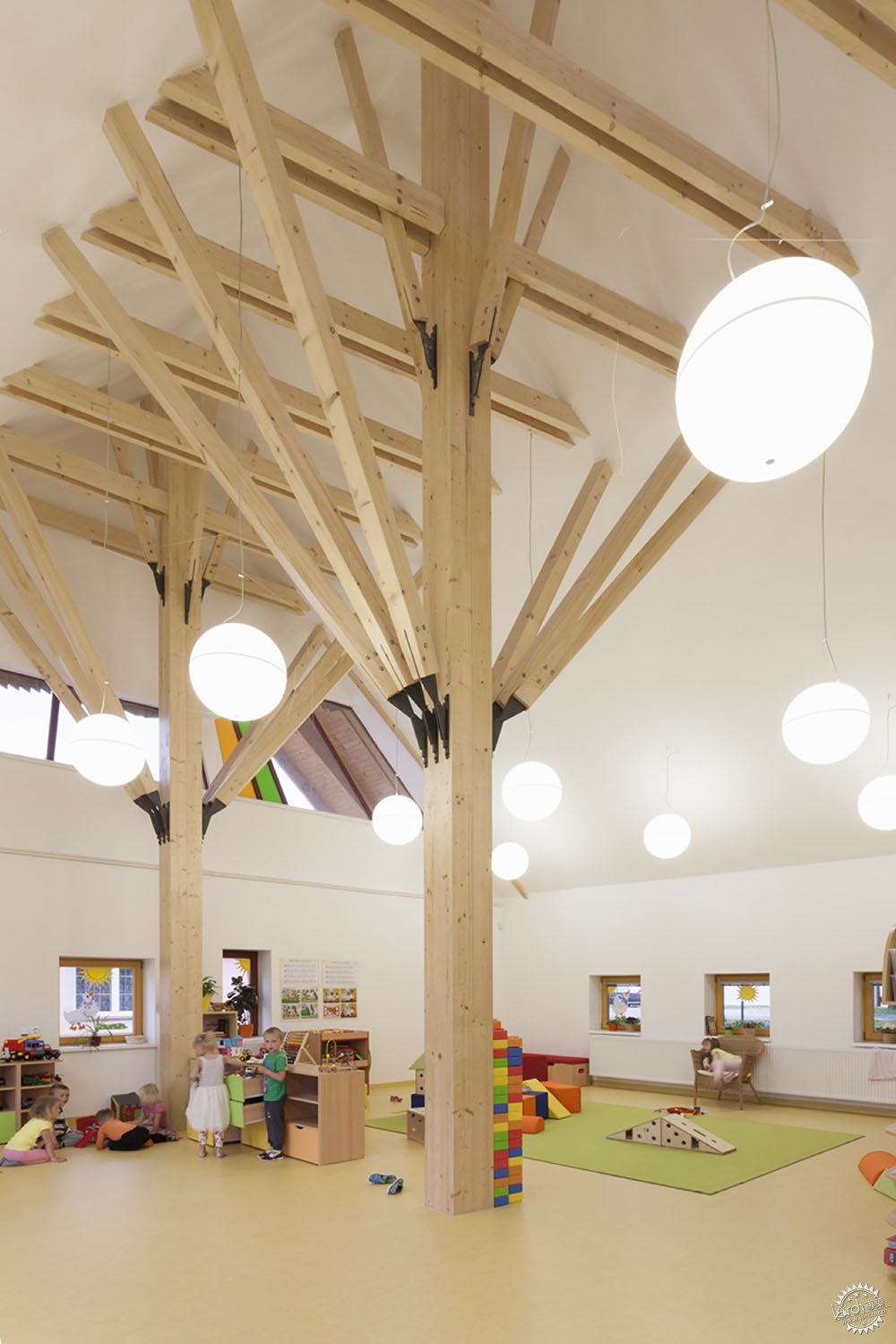

橼是木制的,结构反映了跨度。从北山墙将近8米,倾斜突然改变,这样建立了天窗,让南向日光照入儿童游戏室。在可能的情况下,室内敞向橼下的阁楼。其它阁楼的屋顶经过装饰。

Rafters are timber; the structure reflects the span. Approximately 8 m from the north gable the pitch abruptly changes establishing a clerestory window letting southern daylight in the children’s playroom. Where possible, the interior opens up to the attic below the rafters.  The roof is decked elsewhere in the attic.

多布林幼儿园/ ATELIER 8000第12张图片
© Ondřej Bouška

该建筑满足洪泛区的建造条件。理念表现在技术设计、选材和室内设计上。建筑建立在大体积混凝土连续条和独立基脚上。室内外垂直承重墙是陶瓷砌块的,抵御可能的洪水。室内非承重墙是瓷砖做的。

The building meets conditions for a construction in an inundation area. This concept projects in the technical design and selected materials as well as the interior concept. The building is founded on mass-concrete continuous strips and isolated footings. Vertical outer and internal loadbearing walls are ceramic block to resist potential flooding. Interior non-bearing walls are ceramic brick.

多布林幼儿园/ ATELIER 8000第13张图片
© Ondřej Bouška

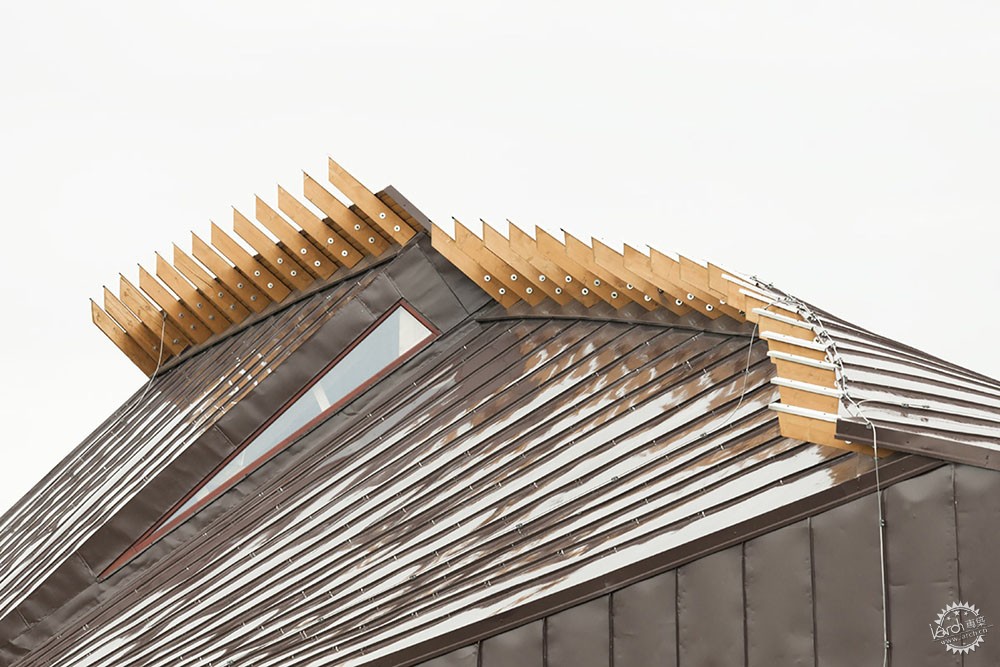

垂直墙壁上开有窗和门,设计来抵御洪水,易于用新的替换。屋顶是铜色铝板。

Window and door openings in vertical walls are designed to resist flooding or allowing for easy replacement for new ones. Roofing is copper colour aluminium sheet.

多布林幼儿园/ ATELIER 8000第14张图片
Drawing 2/绘图2

多布林幼儿园/ ATELIER 8000第15张图片
© Ondřej Bouška

多布林幼儿园/ ATELIER 8000第16张图片
Site Plan/总平面图

多布林幼儿园/ ATELIER 8000第17张图片
Drawing 1/绘图1

多布林幼儿园/ ATELIER 8000第18张图片
Drawing 3/绘图3

多布林幼儿园/ ATELIER 8000第19张图片
Drawing 4/绘图4

多布林幼儿园/ ATELIER 8000第20张图片
Model 1/模型1

多布林幼儿园/ ATELIER 8000第21张图片
Model 2/模型2

多布林幼儿园/ ATELIER 8000第22张图片
Detail Ceiling/天花板图解

多布林幼儿园/ ATELIER 8000第23张图片
Model 3/模型3

多布林幼儿园/ ATELIER 8000第24张图片
Section 2/剖面图2

多布林幼儿园/ ATELIER 8000第25张图片
Section 3/剖面图3

建筑设计: ATELIER 8000
项目位置: 捷克,多布林
总建筑师: Martin Krupauer, Jiří Střítecky
项目时间: 2014年
摄影: Ondřej Bouška
共同设计: Pavel Kvintus
合作: Jiri Vorel (sculptures)
素描、草图、模型: ATELIER 8000

Architects: ATELIER 8000
Location: Dobříň, Czech Republic
Architects in Charge: Martin Krupauer, Jiří Střítecky
Project Year: 2014
Photographs: Ondřej Bouška
Co-author: Pavel Kvintus
Co-operation: Jiri Vorel (sculptures)
Drawings, sketch, model: ATELIER 8000
