查看相册 View Gallery
别墅旁边的这座玻璃亭子才是“画龙点睛”第1张图片


用玻璃和石头装饰的爱丁堡别墅
Archer + Braun adds glass and stone extension to grand Edinburgh villa

由专筑网王帅,小R编译

Archer + Braun建筑事务所在爱丁堡翻修了一栋维多利亚风格的别墅,建筑师在建筑上增加了红色砂岩包层的釉面扩建部分。

扩建的部分被命名为爱丁堡亭,它与原有的B级建筑形成强烈的对比。

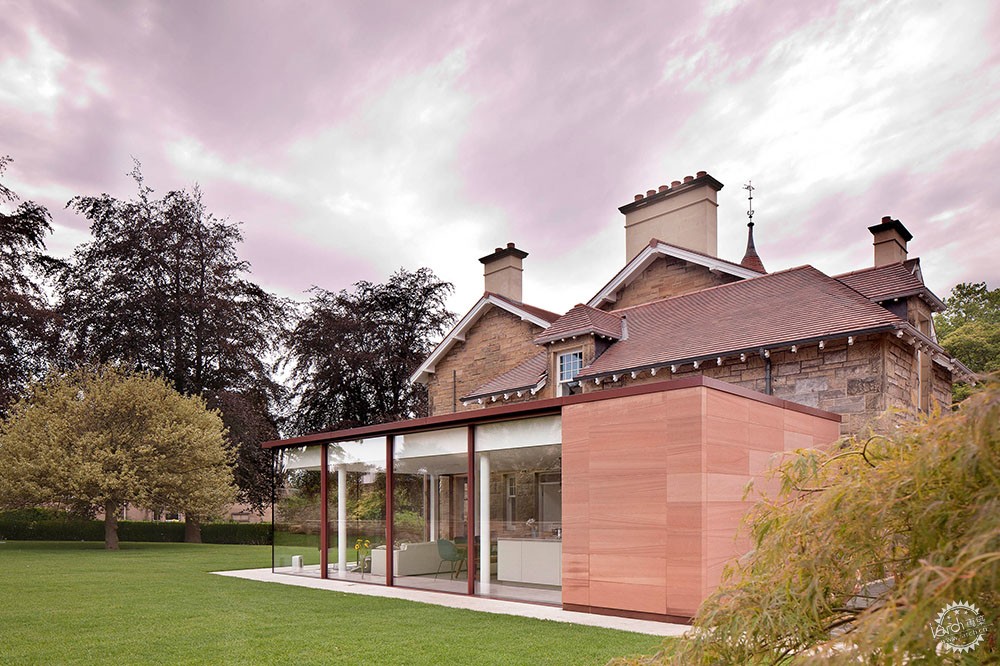

Architecture studio Archer + Braun has renovated a Victorian villa in Edinburgh, adding a glazed extension with red sandstone cladding.
Called Edinburgh Pavilion, the minimal extension was designed as a deliberate contrast to the existing Grade B-listed structure.

别墅旁边的这座玻璃亭子才是“画龙点睛”第2张图片


主建筑内部为一系列正式的房间,这些房间装修得很好。

Archer + Braun事务所设计的部分是一座通体空间,没有隔墙。

The main house is laid out as a series of formal, large and well-decorated rooms.
Archer + Braun's volume is a glazed rectangular volume with no dividing walls.

别墅旁边的这座玻璃亭子才是“画龙点睛”第3张图片


延伸部分的北侧外面覆盖着坚硬的科斯山丘石,这是一种红色的砂岩,在苏格兰的许多建筑之中都有应用。

这种砂岩在原有建筑的石瓦和屋顶瓦上都能找到。

At its northern end, the extension has been clad with solid Corsehill, a red sandstone used in many buildings in Scotland.
The material picks up on the colours of both the stonework and roof tiles of the existing home.

别墅旁边的这座玻璃亭子才是“画龙点睛”第4张图片


建筑师说:“当代的石雕作品重新诠释了传统的石匠技术在现有建筑上的应用。”

“扩建亭子的一个立面被打磨过,而亭子的侧面和后面是原砂砾的感觉。”

"The contemporary stonework reinterprets the array of traditional stonemason techniques used on the existing property," said the practice.
"The primary garden elevation has a facade that is 'rubbed', a technique that results in a smooth finish, where as the secondary elevations to the side and rear of the pavilion are grit blasted."

别墅旁边的这座玻璃亭子才是“画龙点睛”第5张图片


精致的红色金属元素构成了扩建部分的釉墙框架。

扩建部分的结构被钢柱包围,这样可以保持空间中心的开放。

Delicate red metal elements frame the new extension's glazed walls.
A structure of steel columns around its edges to keep the centre of the space open.

别墅旁边的这座玻璃亭子才是“画龙点睛”第6张图片


由玻璃和金属制成的侧面连接到现有住宅的东立面。

新的扩建体量限定了原来的石墙和门。

Sides made from glass and metal connect to the eastern facade of the existing home.
Original stone walls and doors have been left untouched and are framed by the new extension.

别墅旁边的这座玻璃亭子才是“画龙点睛”第7张图片


在扩建部分的南面是中央走廊,它是进入新生活区的通道,是这座富丽堂皇的主建筑的中心轴。

建筑师使用了现代轻型配件,还有一个海湾型窗口座位区。

At its southern edge, an entry into the new living area is on-axis with the home's grand, central corridor.
Modern light fittings have been added, along with a bay window seating area.

别墅旁边的这座玻璃亭子才是“画龙点睛”第8张图片


简单的白色天花板强调了现有的石墙和新金属结构之间的对比。

对于现有住宅内部的调整有助于合理化其布局和改善房间之间的连接。

A simple white ceiling emphasises the contrast between the existing stone wall and the new metal structure.
Small adjustments to the interior of the existing home have helped to rationalise its layout and improve connections between rooms.

别墅旁边的这座玻璃亭子才是“画龙点睛”第9张图片


扩建部分的内部布置着简单的餐岛、餐桌和沙发。

玻璃墙上的推拉门让扩建部分与周围的花园畅通无阻。

The extension's interior is arranged around a simple kitchen island, dining table and sofa.
Sliding doors in the glass walls allowing this room be opened up to the surrounding garden.

别墅旁边的这座玻璃亭子才是“画龙点睛”第10张图片


建筑外铺着石头地板,既形成了露台,又可以作为道路,道路延伸向树篱遮蔽的花园区域。

Archer + Braun事务所由Stuart Archer和Sarah Braun创立,该事务所在伦敦和爱丁堡设有工作室。

Tasmanian事务所Bence Mulcahy最近在斯图亚特山的一座历史别墅上添加了一座钢结构玻璃屋子,手法极其相似。

摄影:David Barbour.

A paved stone floor continues from the extension as a patio and a pathway alongside the extension leading towards to a more formal seated garden area sheltered by hedgerows.
Archer + Braun was founded by Stuart Archer and Sarah Braun and has offices in London and Edinburgh.
Tasmanian practice Bence Mulcahy recently used a similar response in its extensions to a historic villa in Mount Stuart, adding steel-framed glass box.
Photo is by David Barbour.

别墅旁边的这座玻璃亭子才是“画龙点睛”第11张图片


别墅旁边的这座玻璃亭子才是“画龙点睛”第12张图片


项目信息:
建筑设计:Stuart Archer 和 Sarah Braun
执行建筑师:16X
承包商:Elite Property Solutions
工程设计:SDC
景观设计:The Landscape Lady
室内设计:Hen and Crask
录像:James Morrow

Project credits:
Design architects: Stuart Archer and Sarah Braun
Executive architect: 16X
Contractor: Elite Property Solutions
Engineers: SDC
Landscape architect: The Landscape Lady
Interior design: Hen and Crask
AV: James Morrow
