Applecross住宅/ iredale pedersen hook architects
Applecross Residence

由专筑网圈圈,Vigo编译

我们的期望所建造的房子能够长期使用,唤起一种持久感和长时间的存在感。作为古老建筑物的起源,砖是满足需求的选择。

Our clients desired a building that would endure time, evoke a sense of permanence and a sense of already existing on the site. Brick was the natural choice that immediately met this requirement.

你说面朝大海,春暖花开。那就靠近这里,再近点......第2张图片

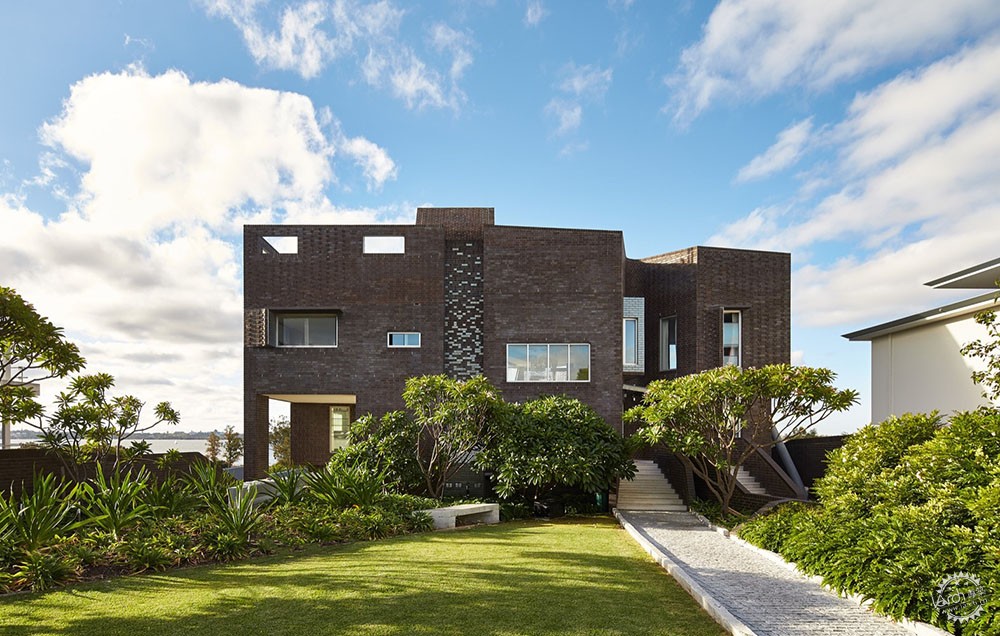

© Peter Bennetts

建筑位于天鹅湖边,能够俯瞰Perth城。站在窗边,呼吸一下这新鲜的空气,阳光照射进来,别提有多惬意。设计创造了一种动态流动的连接,流动的形体已经开创了巨大的形体,形成了与居住者直接的联系,让人身心放松。

The site sits on the edge of the Swan River with views to the city of Perth. The design creates an experiential connection to the meandering river, a fluid and dynamic body of water that has carved out mass forming a direct engagement with the occupant.

你说面朝大海,春暖花开。那就靠近这里,再近点......第3张图片

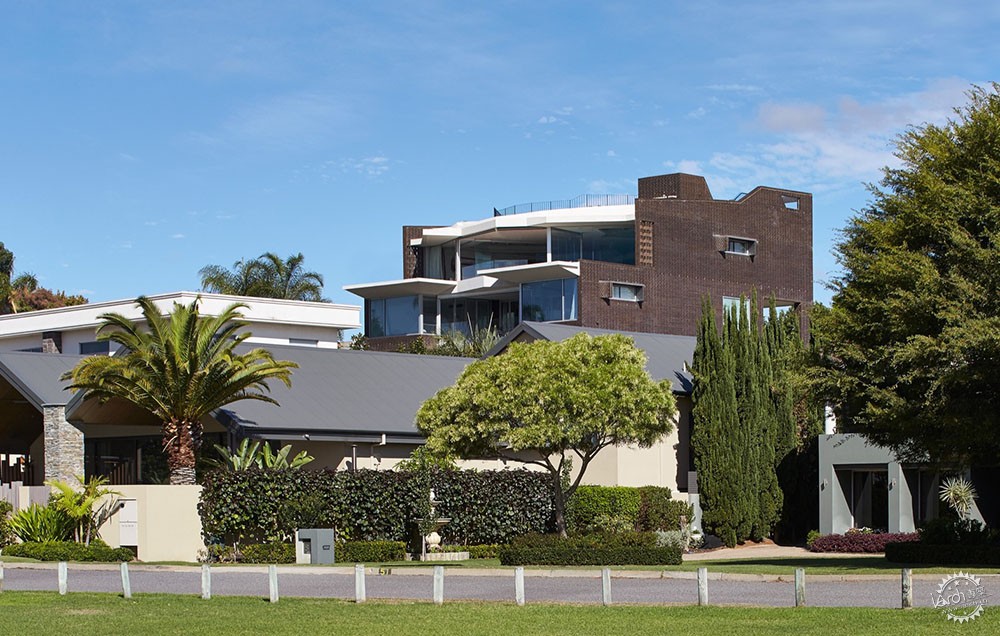

© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第4张图片
草图/Sketch

街道通过具有保护性的砖墙的推拉显露出来,开向河流的方向。墙体围绕着东西边缘,过滤了Perth 城市的强烈的灯光,视线穿过砖幕墙,强烈的光线通过砖反射到更深处,日暮黄昏,仿佛置身于人间仙境。

The street is revealed through the pushing and pulling of the protective brick walls while opening on to the river view. The walls wrap around the east and west side boundaries filtering the intense Perth light and views through brick screens and bouncing light from reflective brick on deep reveals.

你说面朝大海,春暖花开。那就靠近这里,再近点......第5张图片

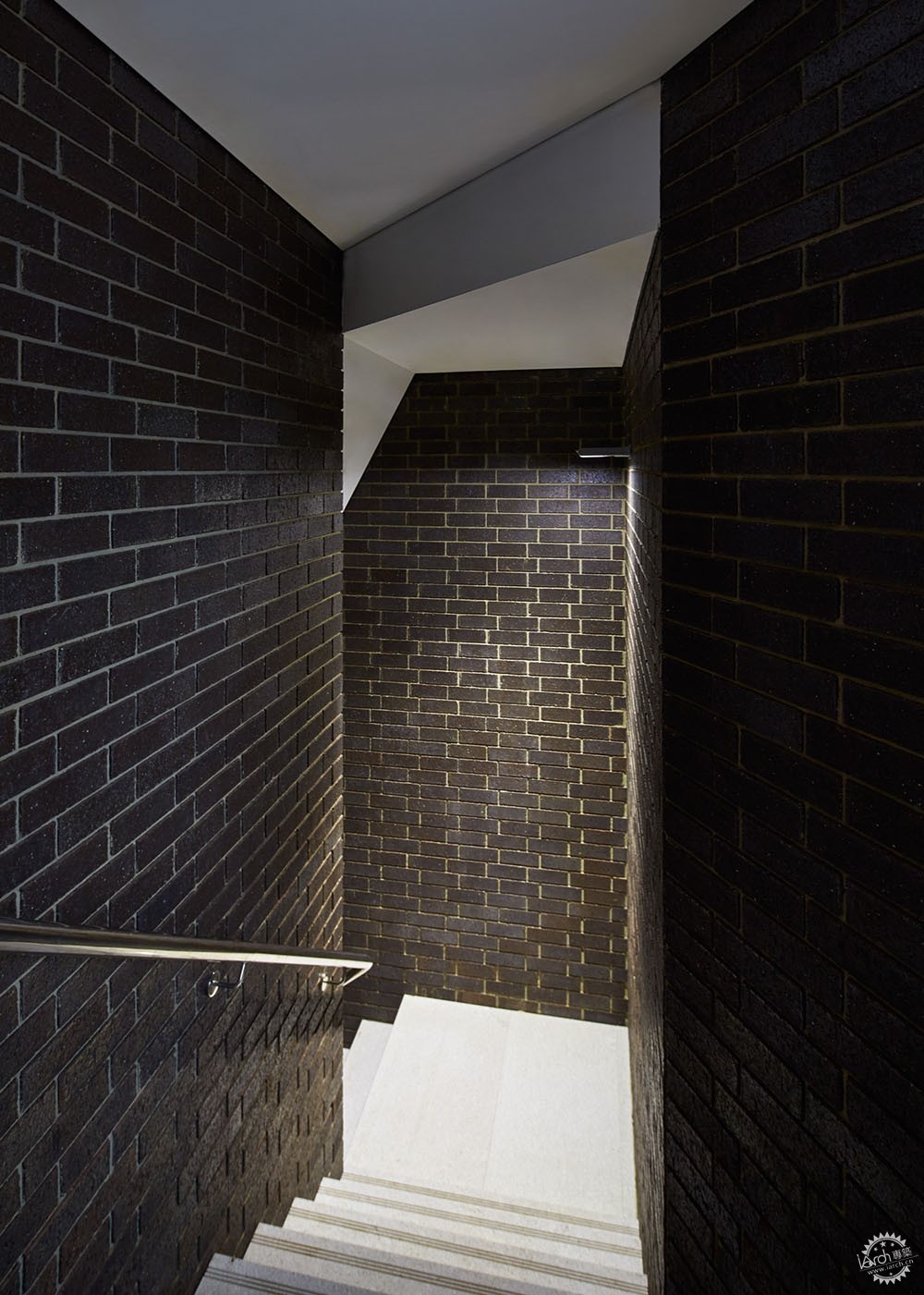

© Peter Bennetts

砖块有重有轻,从上面一层悬挂下来,弯曲的一列在东部边缘。精细的砖砌形成连续的动感,远观,像是一幅动态的画蔓延开来。

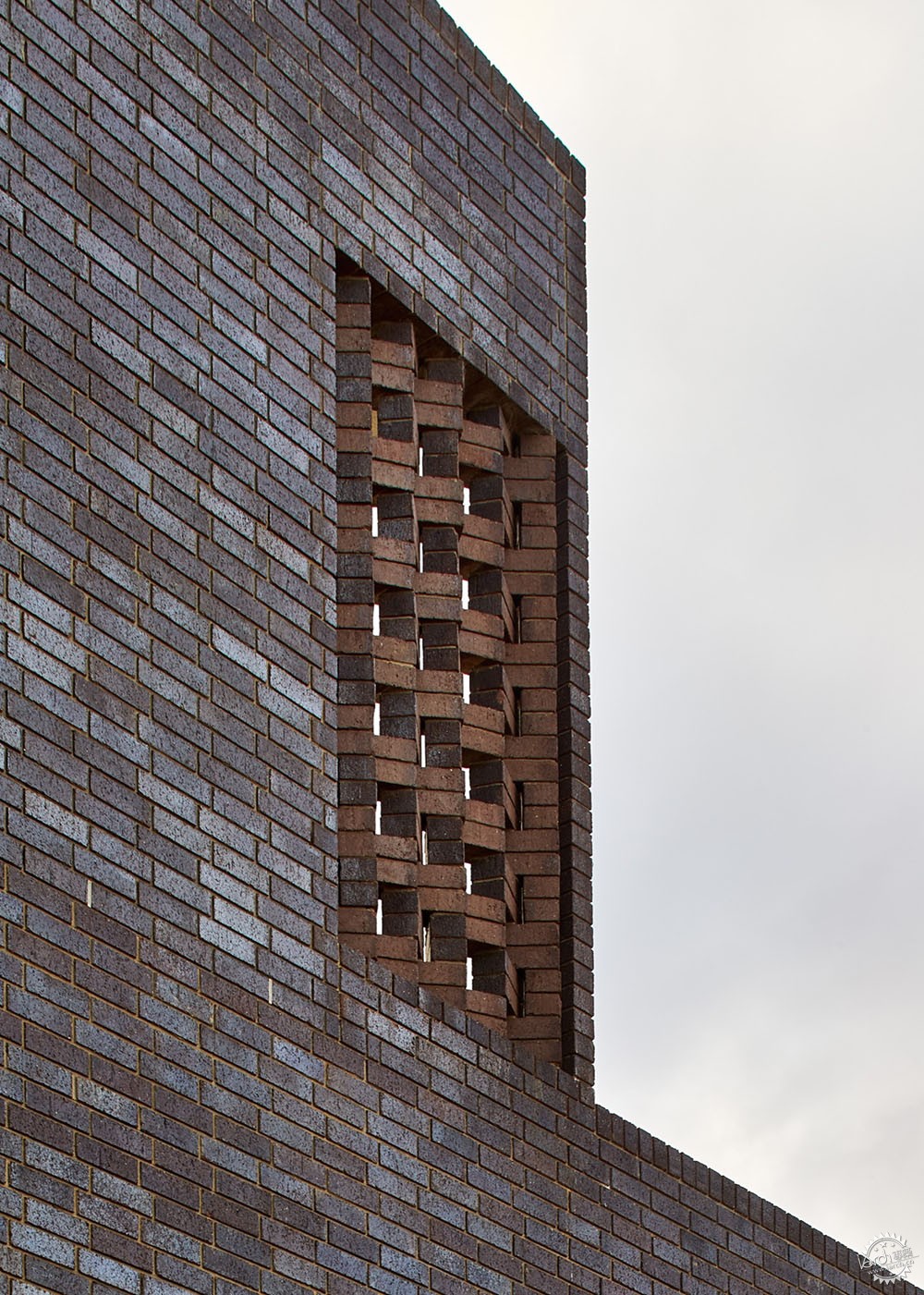

The bricks mass is simultaneously heavy and light; one storey is hung from the upper level and the cranked columns on the east boundary. At a finer level brick patterning slips and slides continuing the sense of movement.

你说面朝大海,春暖花开。那就靠近这里,再近点......第6张图片

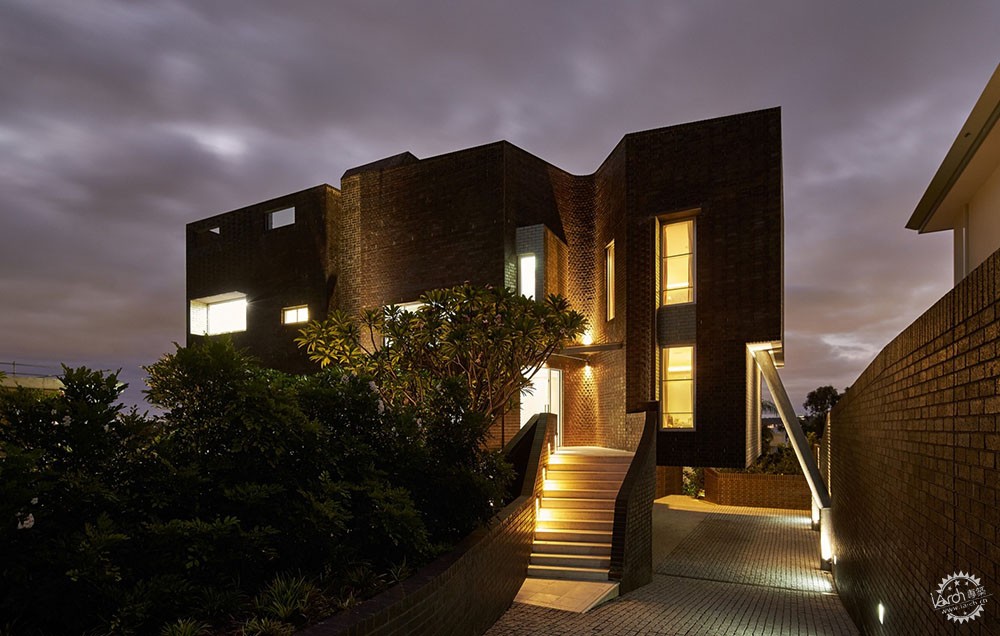

© Peter Bennetts

房子共五层,地面半挂式住宅嵌入地球中。这是一个探索体验重力改变的机会,让房子看起来拥有高科技,房子可以离开地面。

The house extends over five levels with the ground semi embedded in to the earth. This is used as an opportunity to explore a change in experiential weight and movement as the house frees itself from the ground. Each level becomes lighter and more fluid finishing with the upper level roof terrace that opens and welcomes the meandering Swan River.

你说面朝大海,春暖花开。那就靠近这里,再近点......第7张图片
© Peter Bennetts

故意将其放在地块的北面,允许未来细分,包括作为郊区致密化项目的附加住处。房子的一层设计为自给自足部分,作为分开的住所使得朋友、亲戚或其他人可以居住在此。

It is purposely placed to the north of the site and allows for future sub-division to include an additional dwelling as part of a suburban densification program. One level of the house is designed to be self-sufficient and act as a separate apartment dwelling allowing friends, relatives or other people to occupy the site.

你说面朝大海,春暖花开。那就靠近这里,再近点......第8张图片
图解/Diagram

空调系统维持恒定的温度。房子的热质量使得至今在冬天没有利用额外的热量。热量烟囱经过入口空间直达三层,在夏天利用低速风扇排出热量,达到了居住者舒适,冬暖夏凉。

Geo-thermal heating and cooling maintain constant temperatures. The thermal mass of the house has enabled no additional heating in winter to date. A thermal chimney over the entry space extends for three levels, extracting hot air in summer using a low velocity fan.

你说面朝大海,春暖花开。那就靠近这里,再近点......第9张图片
© Peter Bennetts

当然,没有欣赏的美景怎么能行呢。我们给房子创造了一个长的延伸的入口花园,包括通往森林的漫步小路。树木在一定程度上从街道上遮盖了房子,逐渐地显露房子,并引导拜访者通过花园进入房子。神秘感和惊喜感开始于房子的入口,结束于顶层的屋顶平台,从下至上的小路,漫步于林间的享受。

The house position creates a long and stretched entry garden that includes a meandering path through the evolving forest. The mature trees partly screen the house from the street and slowly reveal the house and entry to visitors as one walks through the garden. A sense of mystery and surprise begins with the entry to the house and finishes on the upper roof terrace level.

你说面朝大海,春暖花开。那就靠近这里,再近点......第10张图片
© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第11张图片
位置图/Site Drawing

项目描述
当然,我们还用了一种特殊的材料。这种材料运用于房子和边界墙体,即Austral Elements Platinum and Zinc. 两种砖的轻微倾斜显示了神秘的深度和时间的流逝。

Product Description. One material is used on the house and on the boundary walls, Austral Elements Platinum and Zinc. Slightly different in appearance both bricks reveal a mysterious depth and shimmer over the duration of a day.

你说面朝大海,春暖花开。那就靠近这里,再近点......第12张图片
© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第13张图片
© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第14张图片
© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第15张图片
© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第16张图片
© Peter Bennetts

你说面朝大海,春暖花开。那就靠近这里,再近点......第17张图片

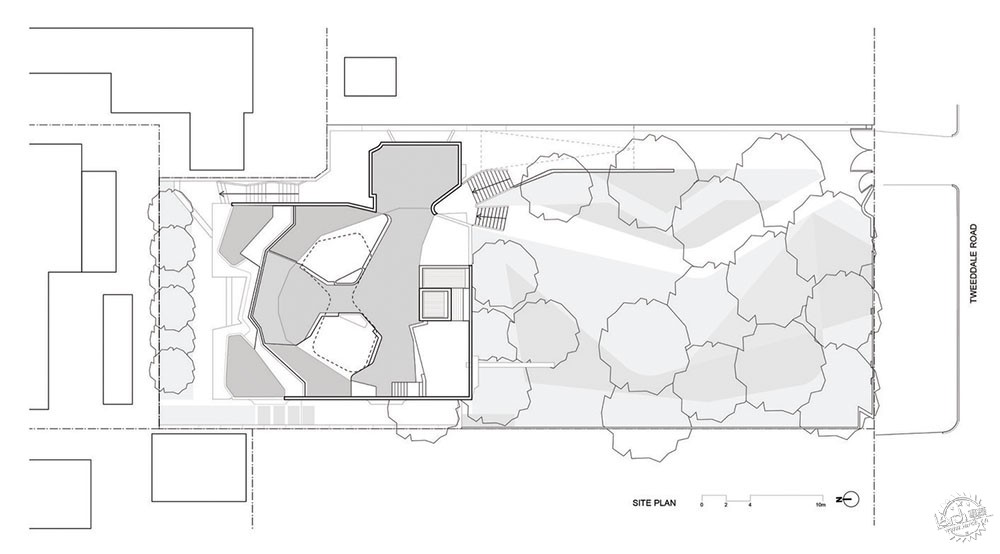

场地平面图/Site Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第18张图片
底层平面图/Ground Floor Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第19张图片
较低层平面图/Lower Floor Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第20张图片
较高层平面图/Upper Floor Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第21张图片
平面图/Floor Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第22张图片
屋顶阳台平面图/Roof Terrace Floor Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第23张图片
场地平面图/Site Plan

你说面朝大海,春暖花开。那就靠近这里,再近点......第24张图片

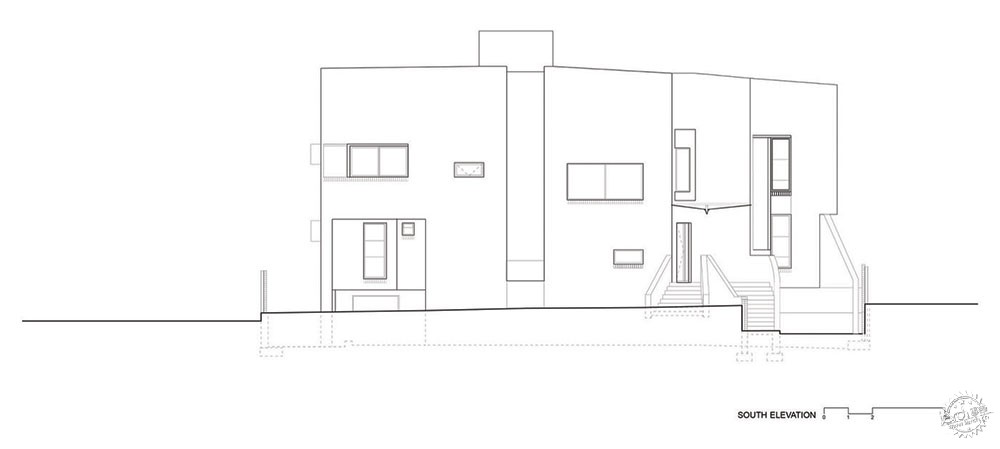

立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第25张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第26张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第27张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第28张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第29张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第30张图片
Courtesy of iredale pedersen hook architects

你说面朝大海,春暖花开。那就靠近这里,再近点......第31张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第32张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第33张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第34张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第35张图片
立面图/Elevation

你说面朝大海,春暖花开。那就靠近这里,再近点......第36张图片
剖面图/Section

你说面朝大海,春暖花开。那就靠近这里,再近点......第37张图片
剖面图/Section

你说面朝大海,春暖花开。那就靠近这里,再近点......第38张图片
剖面图/Section

你说面朝大海,春暖花开。那就靠近这里,再近点......第39张图片
细节/Detail

你说面朝大海,春暖花开。那就靠近这里,再近点......第40张图片
草图/Sketch

你说面朝大海,春暖花开。那就靠近这里,再近点......第41张图片
草图/Sketch

你说面朝大海,春暖花开。那就靠近这里,再近点......第42张图片
图解/Diagram

你说面朝大海,春暖花开。那就靠近这里,再近点......第43张图片
细节/Detail

你说面朝大海,春暖花开。那就靠近这里,再近点......第44张图片
图解/Diagram

你说面朝大海,春暖花开。那就靠近这里,再近点......第45张图片
图解/Diagram

你说面朝大海,春暖花开。那就靠近这里,再近点......第46张图片
© Peter Bennetts

建筑师:iredale pedersen hook architects
建筑位置:Applecross WA 6153, 澳大利亚
建筑负责人:Adrian Iredale, Finn Pedersen, Martyn Hook, Vincci Chow, Caroline di Costa, Tyrone Cobcroft, Giancarlo Belviso, Alex Willis
建筑面积:1600平方米
项目时间:2015年
摄影:Peter Bennetts
厂商:Austral Elements, Original Ceramics
结构师:Terpkos Engineering
风景园林师:Carrier Postmus
水利工程师:Peter Hodson LnC Hydraulic and Fire

•        Architects: iredale pedersen hook architects
•        Location: Applecross WA 6153, Australia
•        Architect in Charge: Adrian Iredale, Finn Pedersen, Martyn Hook, Vincci Chow, Caroline di Costa, Tyrone Cobcroft, Giancarlo Belviso, Alex Willis
•        Area: 1600.0 m2
•        Project Year: 2015
•        Photographs: Peter Bennetts
•        Manufacturers: Austral Elements, Original Ceramics
•        Structural: Terpkos Engineering
•        Landscape Architects: Carrier Postmus
•        Hydraulics Engineer: Peter Hodson LnC Hydraulic and Fire
