Alumni Center / TVA Architects

由专筑网王晓梦，杨帆编译

来自事务所的描述：为庆祝以往校友的光辉事迹，以及成为大学新气象的第一站，福特校友中心的设计通过连接一个互动体验馆和一座历史图书馆，展示了一个活力十足兼具前瞻性的环境氛围。这座60,000平方英尺的4层建筑，通过绿色建筑黄金认证的结构建造出一个宽敞的线性天光大厅和休息室、一些会议室及若干多功能集合空间，当然也有为大学基金会和其他工作人员准备的办公空间。

From the architect. Designed to celebrate the legacy of past alumni and be the first stop for new inquiries about the University, the Ford Alumni Center expresses a dynamic and forward looking environment while also allowing a link to the past through an interactive interpretive center and a history library. A four-story, 60,000-square-foot building, the LEED-Gold structure houses a large linear sky lit lobby and lounge, conference rooms and multi-purpose gathering spaces, as well as office space for the University Foundation and other staff.

© Laurence Anderson

© Laurence Anderson

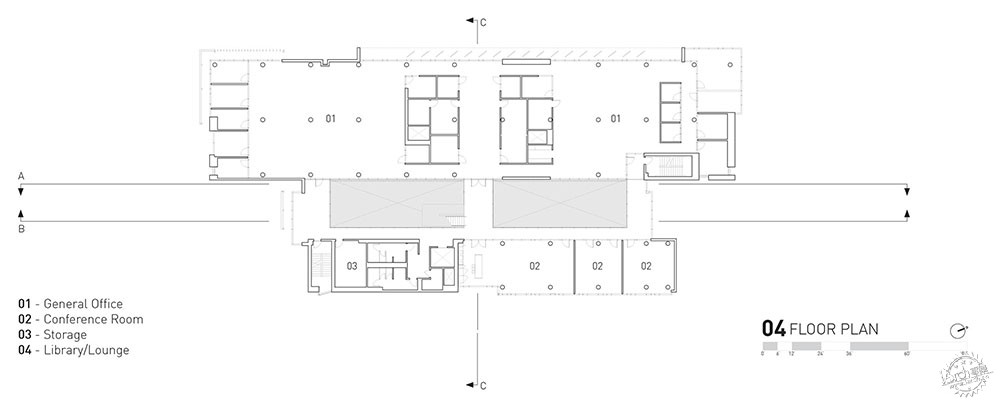

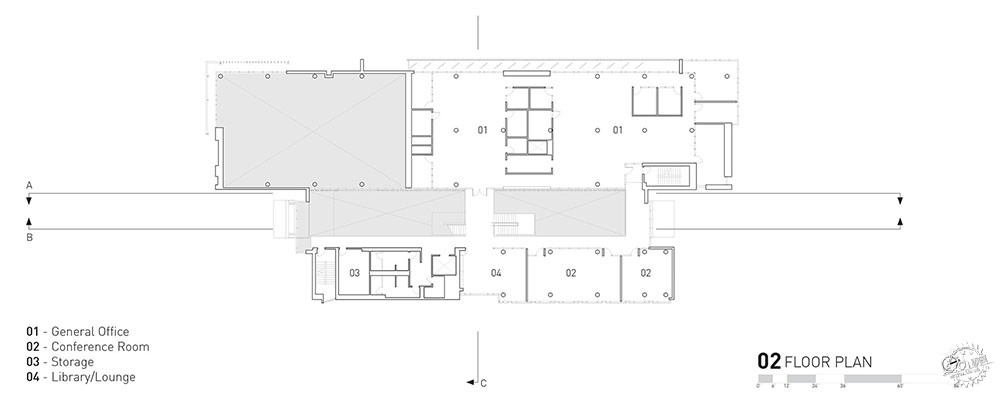

Floor Plan/楼层平面图

建筑场地已建造好地下首层停车结构，为在此结构系统上方继续建造地表工程，此项目还需要谨慎规划。地下停车结构使得围绕校友中心和体育场的表面区域能服务于集合人流和举办活动空间，而不仅仅是用于地表停车，这样就创造出一个有生气的灵活的活动场地。

Programmed after construction began on a sub-surface parking structure beneath the building site, the Project required carefully planning to be built atop that structural system. The below grade parking structure allowed surface area surrounding both the Alumni Center and Arena to be utilized as gathering and event spaces rather than for surface parking, creating a dynamic and flexible event site.

© Laurence Anderson

© Laurence Anderson

建筑从比邻的体育场汲取了许多美学元素，但并没有照搬复制。相反，它是在场地的体验性和气候性条件下，对这次任务设计的一个直接回应。建筑体量清晰地表达了公共空间、展廊和内部的办公功能。覆盖了复合金属面板和金属条纹壁板的立面也是对场地的采光条件作出的直接回应。直观的纵向和横向金属格栅、网格屏幕都有恰当的朝向，可以最大化控制大片玻璃幕墙的日光效果，而这些大片的玻璃幕墙也保证了室内外结构的清晰可见。建筑大厅和中庭上空透过的天光让室内全天都有柔和的自然光线，同时也作为一个清晰大胆的元素，来推动划分公众和较私密的常规空间。

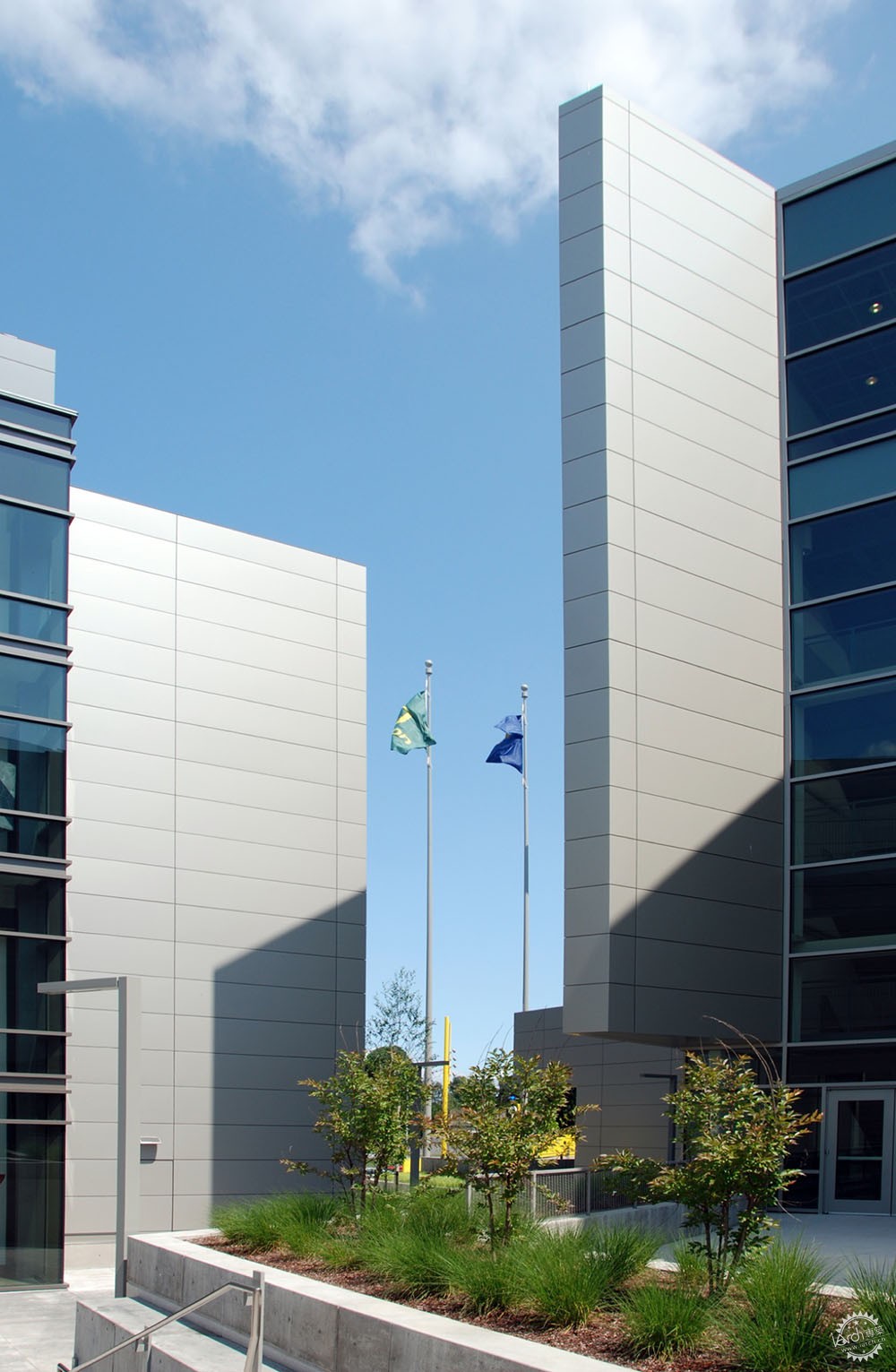

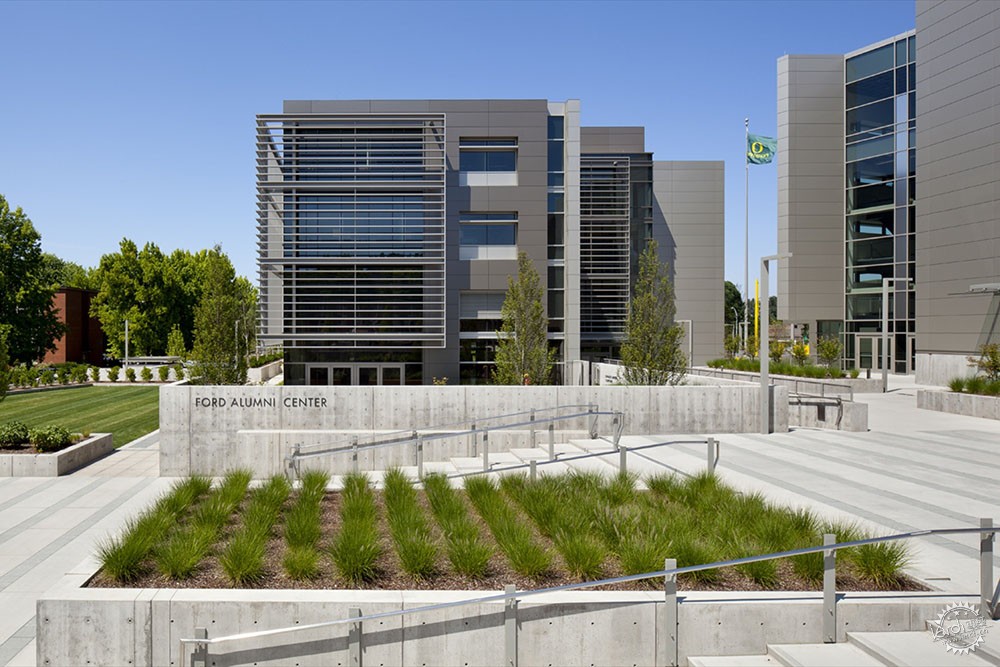

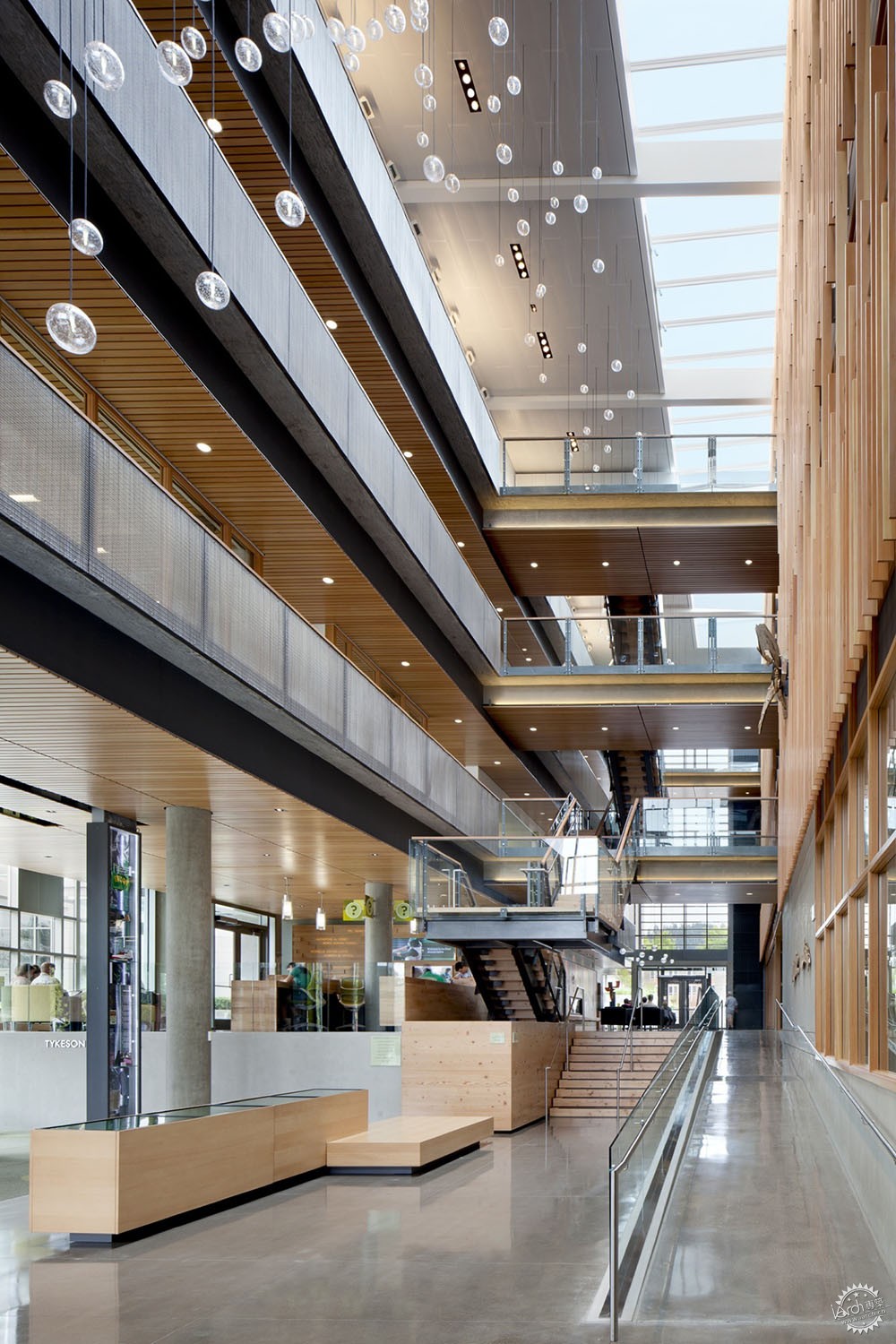

The building takes many aesthetic clues from the adjacent arena, but does not mimic it. Rather, it is a direct response to the program within and the experiential and climatic conditions of the site. The building volumes are a clear expression of the public, gallery, and office functions within. Clad in composite metal panels and metal ribbed siding, the facades also express the direct response to solar conditions of the site. Strong vertical and horizontal metal grilles and mesh screens are oriented appropriately for maximum sun control at the large expanses of glass which allow for the transparency into and out-of the structure.The skylight running through the building above the lobby and atrium allows soft interior natural light throughout the day and is a clear and bold element that helps to separate the public and more private programmatic spaces.

© Laurence Anderson

© Laurence Anderson

室内交通围绕中庭展开，楼梯间和梯间过渡空间能被轻松识别，同时为小型聚会提供场地。建筑结构同大学的中心公共绿化空间连成一体。可开启的窗户让使用者对他们的室内环境可进行直接操控。

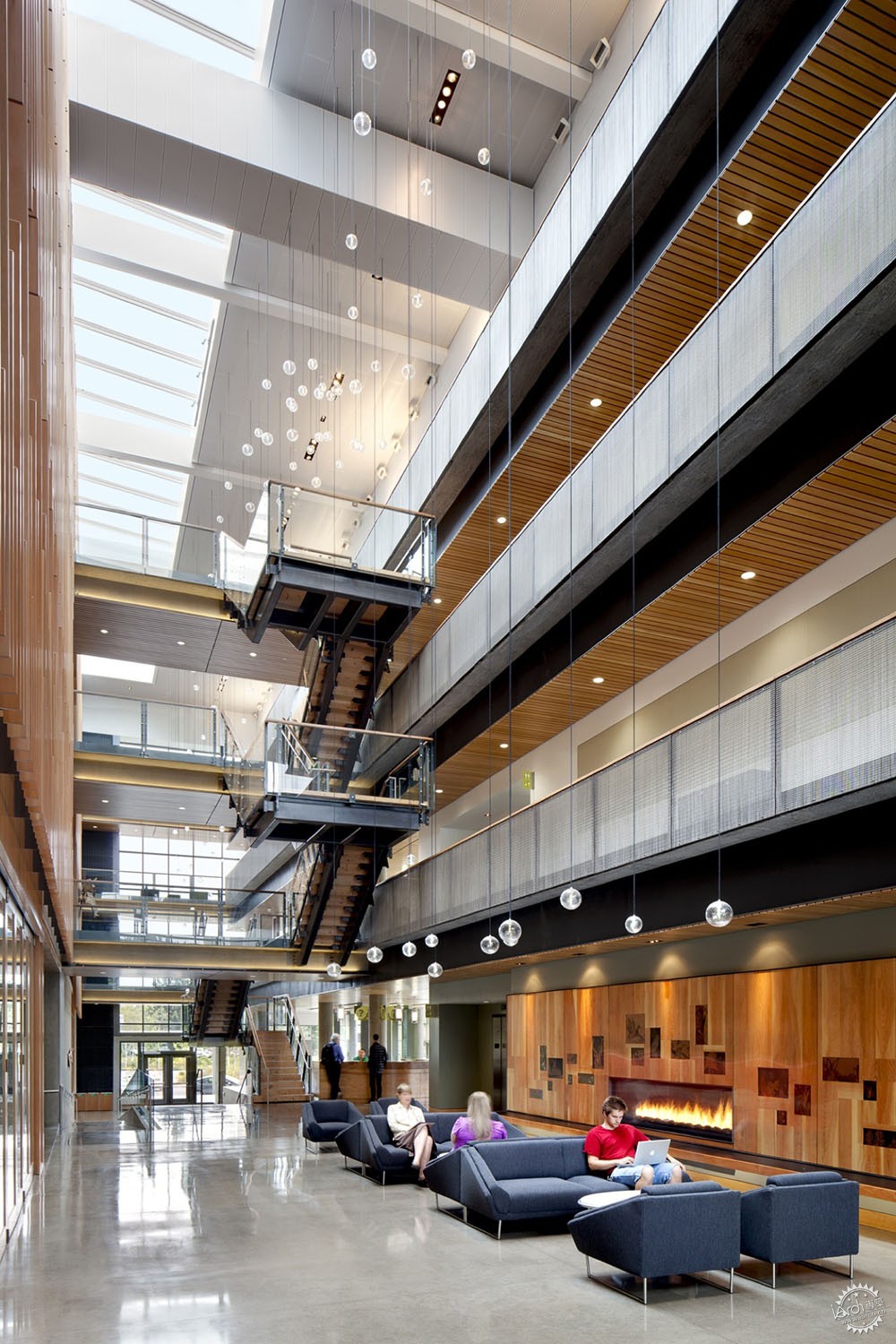

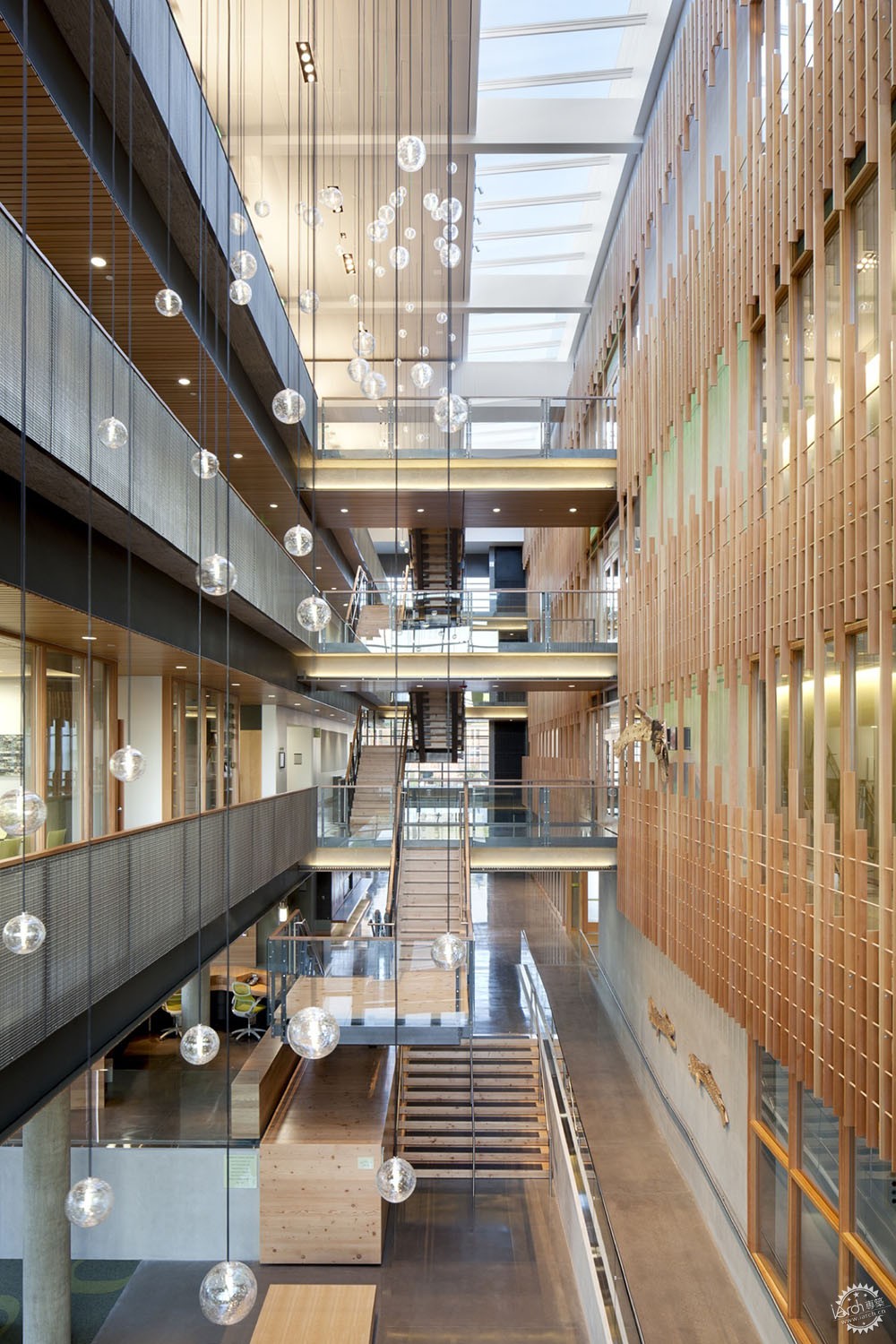

Interior circulation surrounds the atrium, and stairways and landings are easily identifiable and offer places for small gatherings.The structure is connected to the university's central utilities plant. Operable windows allow users to have direct control of their interior environment.

© Laurence Anderson

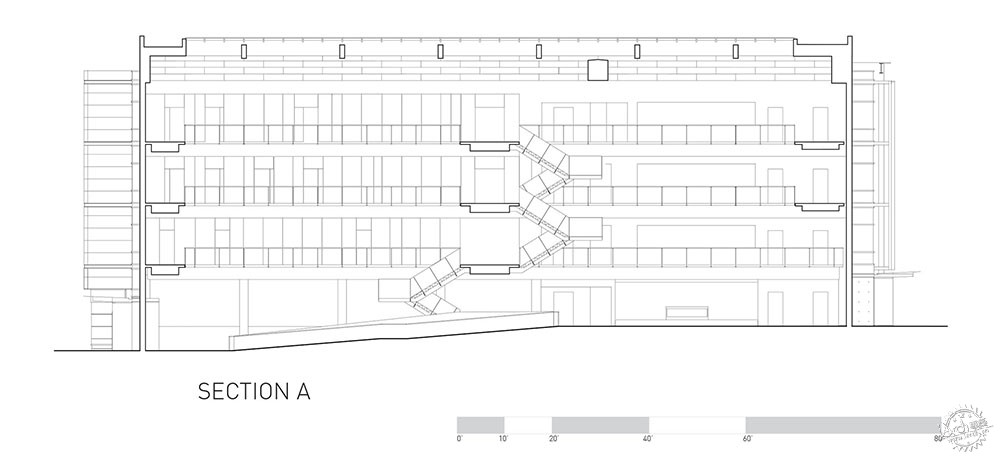

Section/剖面图

校友中心在临近Donald R. Barker景观庭院位置建造了一个巨大会所（校园第二个大面积建筑），这对整个大学举办正式或非正式活动都是十分便利的。花园临近建筑的地方设置了一些蓄水花架，让使用者参与其中，来认识雨水是如何被回收利用的。校友中心也被用于体育场活动的接待空间，在体育场举办活动期间，所有共享的室外广场空间都被激活得到使用。

The Alumni Center houses a great hall (the second largest on campus) adjacent to the Donald R. Barker landscaped courtyard which is suitable for formal and informal gatherings for the entire university. The gardens contain storm water planters constructed adjacent the building allowing users to participate in understanding how rainwater is treated. The Alumni Center is also used as a reception area for Arena activities and all of the shared outdoor plaza spaces are activated during Arena events.

© Laurence Anderson

Floor Plan/楼层平面图

Floor Plan/楼层平面图

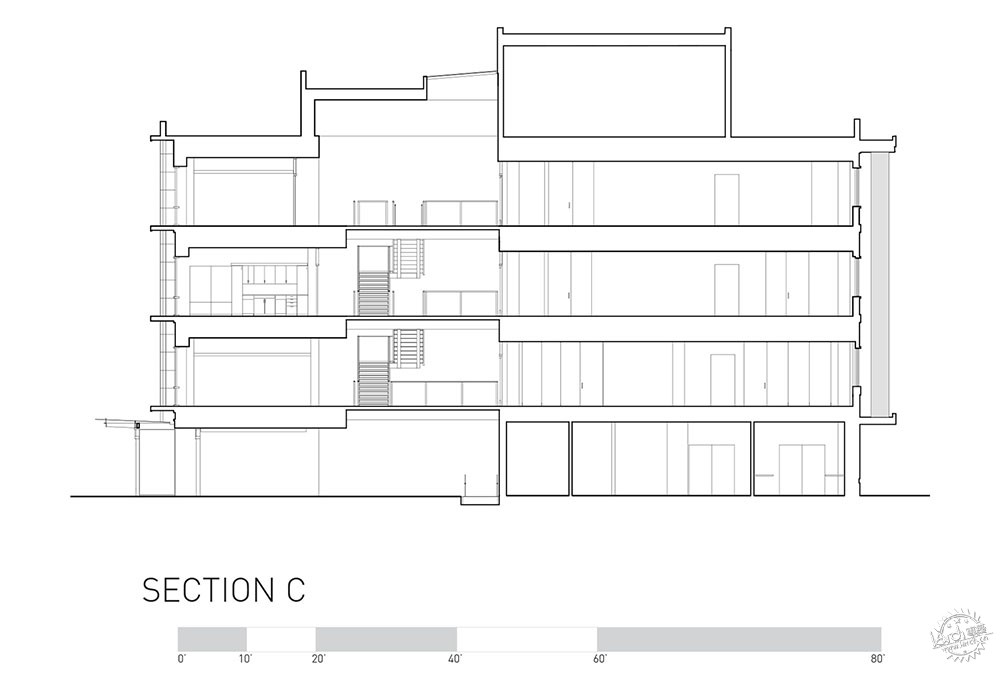

Section/剖面图

Section/剖面图

Site Plan/总平面图

建筑设计：TVA Architects
项目位置：美国，俄勒冈州，尤金
设计主管：Bob Thompson
设计团队：Eric Li, project manager, Caleb Mitchell, Susan Hargrave
面积：6000.0平方英尺
项目年份：2011
摄影：Laurence Anderson
室内设计：Opsis Architecture
管理工程计划：Interface Engineering
结构工程：Haris Engineering
景观设计：Walker Macy
土木工程：Balzhiser Hubbard
交互媒体：Second Story
总承包商：Fortis Construction

Architects: TVA Architects
Location: Eugene, OR, USA
Design Principal: Bob Thompson
Project Team: Eric Li, project manager, Caleb Mitchell, Susan Hargrave
Area: 6000.0 ft2
Project Year: 2011
Photographs: Laurence Anderson
Interior Architect: Opsis Architecture
MEP: Interface Engineering
Structural: Haris Engineering
Landscaping: Walker Macy
Civil: Balzhiser Hubbard
Interactive Media: Second Story
General Contractor: Fortis Construction
