原生态建筑办公室设计/ RAW architecture第1张图片


RAW Architecture's Office

由专筑网朱王倩,韩平编译

110平方米的原生态建筑办公室,坐落在印度尼西亚雅加达西部拥挤的住宅区里,基地总面积为375平方米,建筑占地面积为150平方米,建筑处在住宅的围墙和车库之间。从它的名字可以看出,原生态建筑办公室采用了未加工的天然材料。这样的方式不仅极其明智还非常有效,而且相对较小,其点缀的胶合板立面与裸露的混凝土相结合,黑色彩绘墙给它带来独特的外观,但从社区外看依旧隐密。

Situated in the increasingly crowded gated community at West Jakarta, Indonesia, the 110 sqm design architecture office “RAW architecture” occupies a 150 sqm in 375 sqm plot of land and built at the periphery and inside main house’s garage. Reflected by its name, RAW architecture office, the finishes is bare and using natural material. Size-wise it is extremely efficient, and relatively small, but its dotted exposed plywood facade combined with exposed concrete, black painted wall gives it a distinctive look yet privacy from outside the gated neighbourhood.

原生态建筑办公室设计/ RAW architecture第2张图片

© Mario Wibowo

原生态建筑办公室设计/ RAW architecture第3张图片

Detail/细节

原生态建筑办公室设计/ RAW architecture第4张图片

© Mario Wibowo

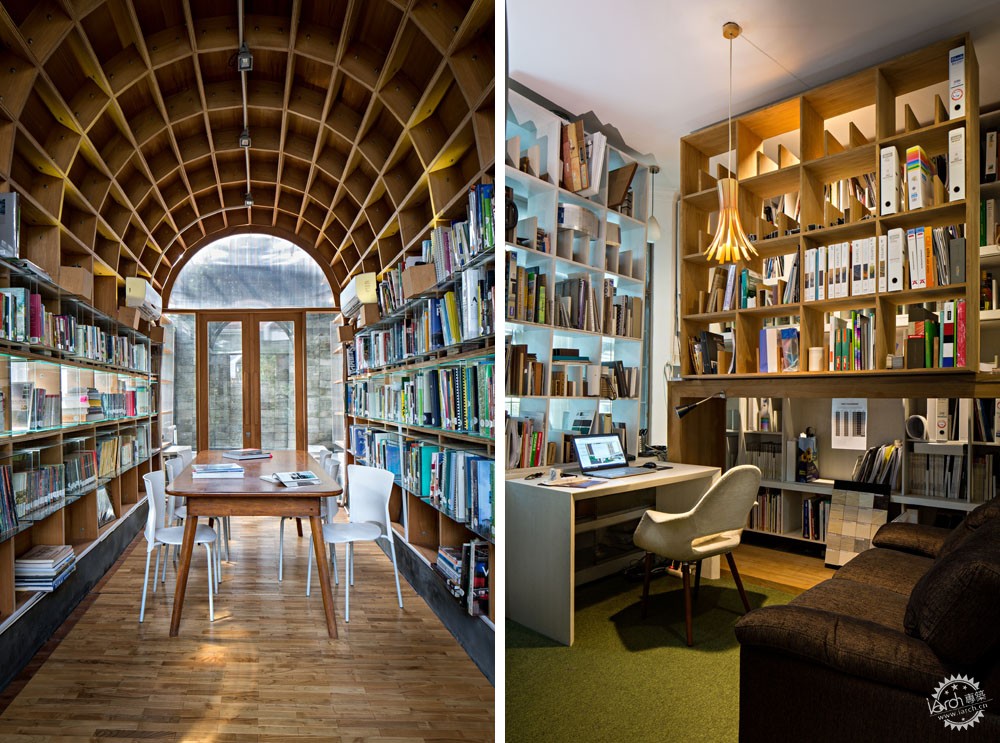

办公室分为两个主要结构部分,分别位于花园和现有房子的车库。第一种结构位于室外为满足空间采用胶合板结构。办公室有一间专用会议室用作OMAH图书馆,它由胶合板组成,收藏着所有的建筑书籍。OMAH是社区图书馆,有时用于举办建筑沙龙和讨论。OMAH 采用由胶合板形成的几何拱结构,2.4米大跨度的拱廊完全由预制胶合板组成。这样的建造形式预计两周就能完工,它能很好地适应临时建筑的效率、负担能力及流动性。

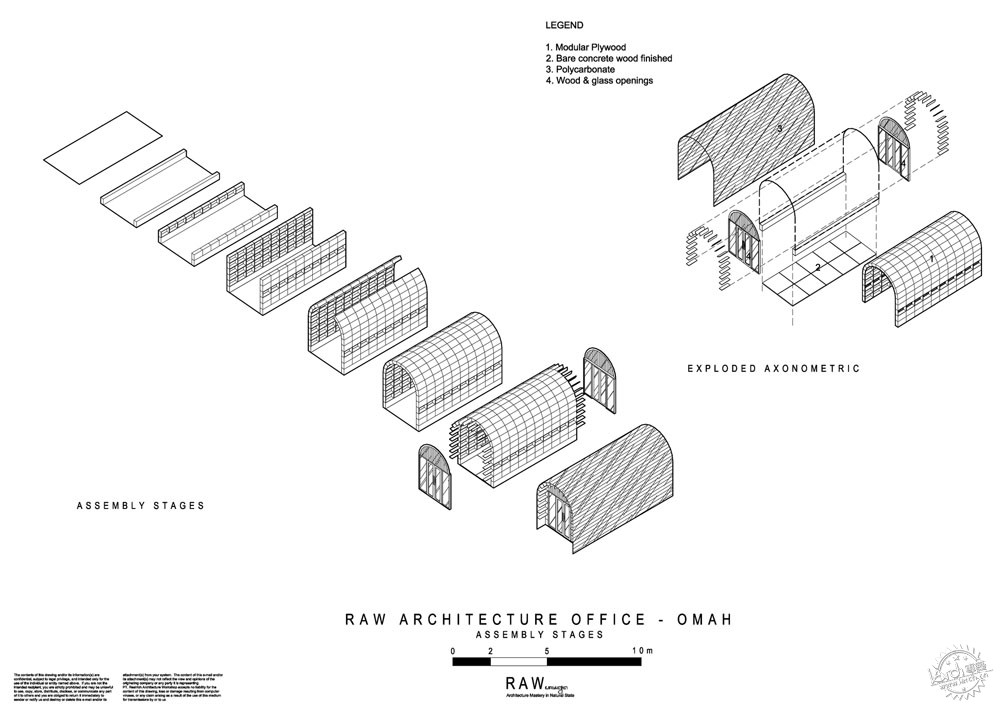

The office is divided by 2 main structure located at the garden and the garage of the existing house. The first structure is meeting space which made by plywood structure located at outdoor .The office has one meeting room dedicated for OMAH library, which is made by plywood which housed all of the architecture books, OMAH is community based library and sometimes is used for hosting architecture talks and discussion. OMAH is made by plywood forming an arch as its geometry, This 2.4 m wide span arch pavilion is made entirely from prefabricated plywood. The fabricated system is designed to be built within 2 weeks accommodating efficiency, affordability, movability as temporary structure.

原生态建筑办公室设计/ RAW architecture第5张图片

© Mario Wibowo

第二种结构为位于主屋车库的工作空间。办公空间基于效率而设计,为设计师繁忙的建筑项目工作中营造亲切感。工作空间没有接待区域,没有固定的墙壁。简单的门厅和宽敞的鞋类存储空间,这样客人在进入休息厅之前就可以换鞋存储。入口后,技术和设计师之间的分离是基于其生活习惯而调整的,这对于最终布局也起着重要作用。一层空间中唯一的封闭空间是管理研究室,其大小是办公储藏空间的两倍。二层夹层是更私密的空间储藏了大量资料可作图书馆,另外还有储存着下午茶的饮料。

The second structure is working space located at the garage of the main existing house. The office space is designed based on efficiency to create intimate feeling for designers working on intense architecture projects. The working space has no receiving area, no permanent wall. A simple foyer and a big openingwith generous footwear storage- guests are to take off and store theirs there before entering-precede the lounging area. After the entrance, the separation between technical and designer also takes some importance its final layout is the result of few adjustments based on the designer and technical's domestic habits. The only enclosed space in the first story is administration room study, which doubles as a office storage. The second story mezanine area is more private spaces to store vast material library, and some drinks for chill out time.

原生态建筑办公室设计/ RAW architecture第6张图片

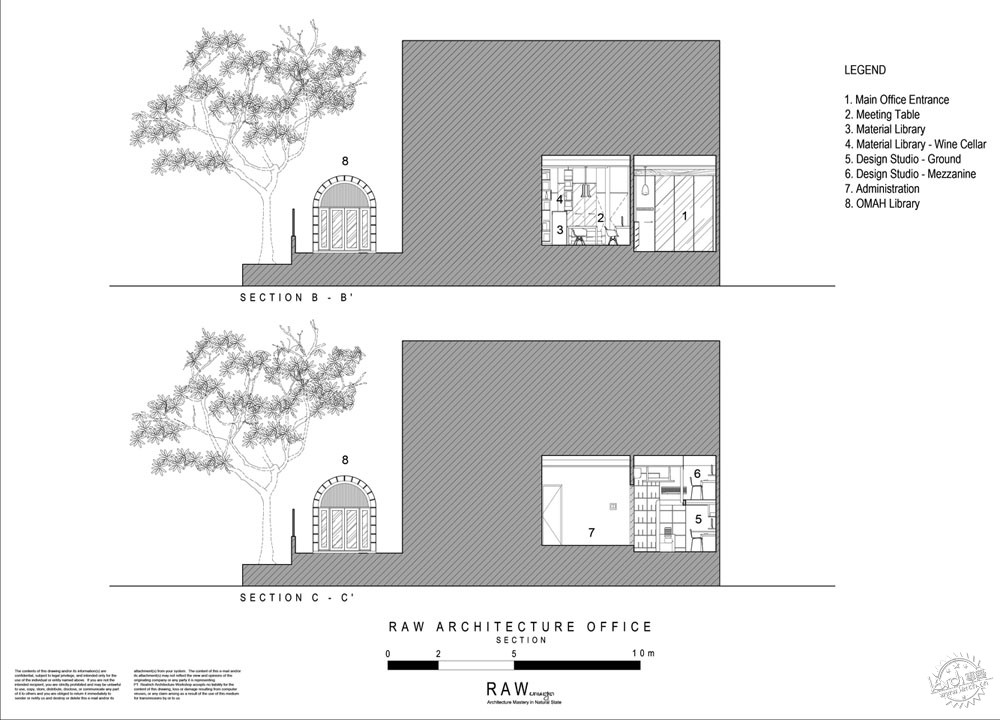

Section/剖面图

RAW已安排了暑期建筑奖学金计划,每年邀请东南亚50人实习生,学习编程、设计空间,更多的是了解办公室对于当地的工艺的开发。

RAW has been arranging summer architecture fellowship program which invites 50 people per year in South East Asia to be trainee, learning skill of programming, designing space, and more is to understand the local craftsmanship available developed in the office.

原生态建筑办公室设计/ RAW architecture第7张图片

© Mario Wibowo

这间办公室是典型的雅加达小家庭办公室,它也是在探寻雅加达空间非常有限情况下的空间设计。

The office shows example of small home office in Jakarta tries to explore design in its space situated in very limited space in Jakarta.

原生态建筑办公室设计/ RAW architecture第8张图片

© Mario Wibowo

原生态建筑办公室设计/ RAW architecture第9张图片

© Mario Wibowo

原生态建筑办公室设计/ RAW architecture第10张图片

© Mario Wibowo

原生态建筑办公室设计/ RAW architecture第11张图片

© Mario Wibowo

原生态建筑办公室设计/ RAW architecture第12张图片

© Mario Wibowo

原生态建筑办公室设计/ RAW architecture第13张图片

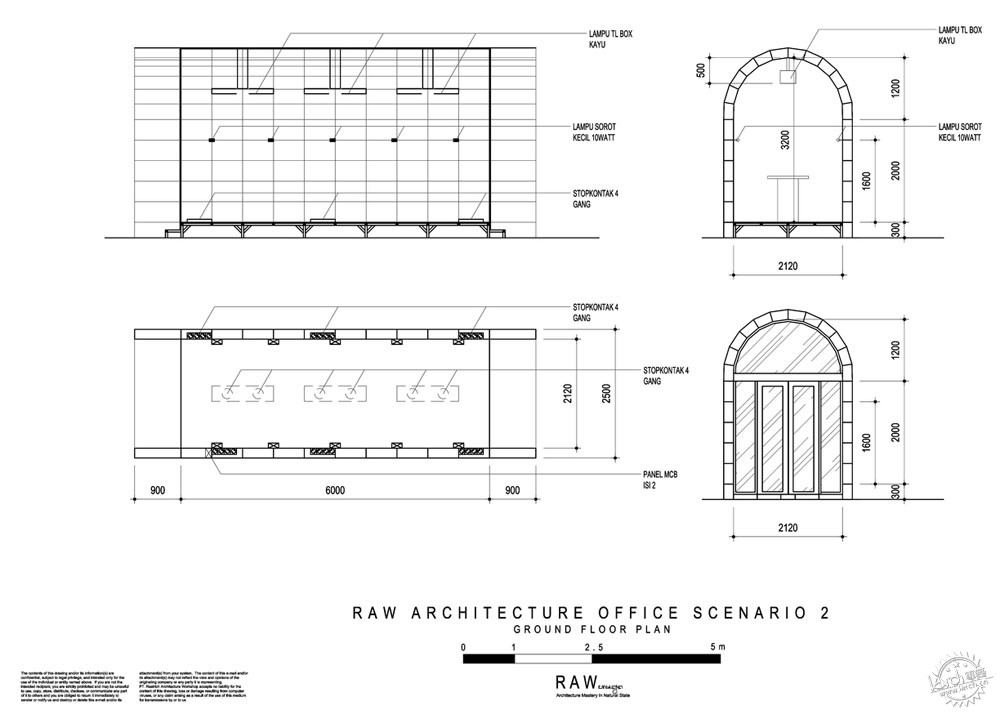

Plan/平面图

原生态建筑办公室设计/ RAW architecture第14张图片

Plan/平面图

原生态建筑办公室设计/ RAW architecture第15张图片

Plan/平面图

原生态建筑办公室设计/ RAW architecture第16张图片

Section/剖面图

原生态建筑办公室设计/ RAW architecture第17张图片

Detail/细节

原生态建筑办公室设计/ RAW architecture第18张图片

Detail/细节

原生态建筑办公室设计/ RAW architecture第19张图片

© Mario Wibowo

建筑设计:RAW architecture
地址:印度尼西亚首都,雅加达
主创建筑师:RealrichSjarief
面积:150.0平方米
项目时间:2015年
建筑摄影:Mario Wibowo
制造商:Asahi, Bloom, Borobudur, Dekson, Dulux, Jayaboard, Mortar Utama, TotoMore Specs

Architects:RAW architecture
Location:Jakarta, Special Capital Region of Jakarta, Indonesia
Architect in Charge:RealrichSjarief
Area:150.0sqm
Project Year:2015
Photographs:MarioWibowo
Manufacturers:Asahi, Bloom, Borobudur, Dekson, Dulux, Jayaboard, Mortar Utama, TotoMore Specs
