特别感谢TYIN tegnestue Architects供稿!
欢迎广大设计师或设计单位踊跃投稿800048710@b.qq.com!
突破传统的挪威小木屋/ TYIN tegnestue Architects第1张图片
© Pasi Aalto

项目信息:
地点:挪威特隆赫姆
委托方:Vivian Helene Bye og Tom Erik Kroknes
项目类型:单个家庭的住房扩建
项目花费:1 300 000挪威克朗/ 157 000 欧元
项目建设期:2011.9-2014.1
面积:48平米
承包人:T¿mrer Stangvik, Bj¿rnstu VVS, Murarbied, Trondheim Elektro, Nordbygulv
工程师:Harboe Leganger Sivilingeni¿rer
一楼绘画:Artist B¿rge Kjeldstad
家具设计:Berge Interi¿r
内饰设计:Livos Naturmaling
Project Credits:
Location: Trondheim, Norway
Client: Vivian Helene Bye og Tom Erik Kroknes
Project: Single family house extension
Cost: 1 300 000 NOK / 157 000 EUR
Building period: September 2011 - January 2014
Area: 48 sqm
Entrepreneurs: T¿mrer Stangvik, Bj¿rnstu VVS, Murarbied, Trondheim Elektro, Nordbygulv
Engineer: Harboe Leganger Sivilingeni¿rer
Painting first floor: Artist B¿rge Kjeldstad
Furniture: Berge Interi¿r
Exterior surfaces: Kebony
Interior treatment: Livos Naturmaling


突破传统的挪威小木屋/ TYIN tegnestue Architects第2张图片
© Pasi Aalto

来自事务所的描述。该项目是在挪威商业建筑领域里的第一次尝试,算是一个学习经验。这也是第一次在细节上按照挪威土壤的特性的建筑规范进行的建设。因此,该建筑的墙壁有30厘米厚,屋顶也有几乎半米的厚度。


This project is the result of our first attempt at commercial architecture in the Norwegian setting, and thus a learning experience. It is the first time of working with detail in accordance to building code and regulations on Norwegian soil. This resulted in 30 cm thick walls and roofs half a meter in thickness.

突破传统的挪威小木屋/ TYIN tegnestue Architects第3张图片
© Pasi Aalto

这个项目是对一个四口之家独享的独栋别墅的扩建,主人们希望把他们的生活空间扩大一些。在这个项目建设过程中,我们遵循国际通用的方法,秉承企业家精神,在对施工过程完全控制的同时,我们也承担全部责任,由此增加的风险不仅仅在财务方面。


The project is an addition to a single-family house, in this case home to a family of four. The family wanted to expand their living space. In keeping with the methods adopted in the international setting, we assumed total entrepreneurship over this building process. In taking total control over the process, one also accepts total responsibility. The risk increases, not in the least financially.

突破传统的挪威小木屋/ TYIN tegnestue Architects第4张图片
© Pasi Aalto

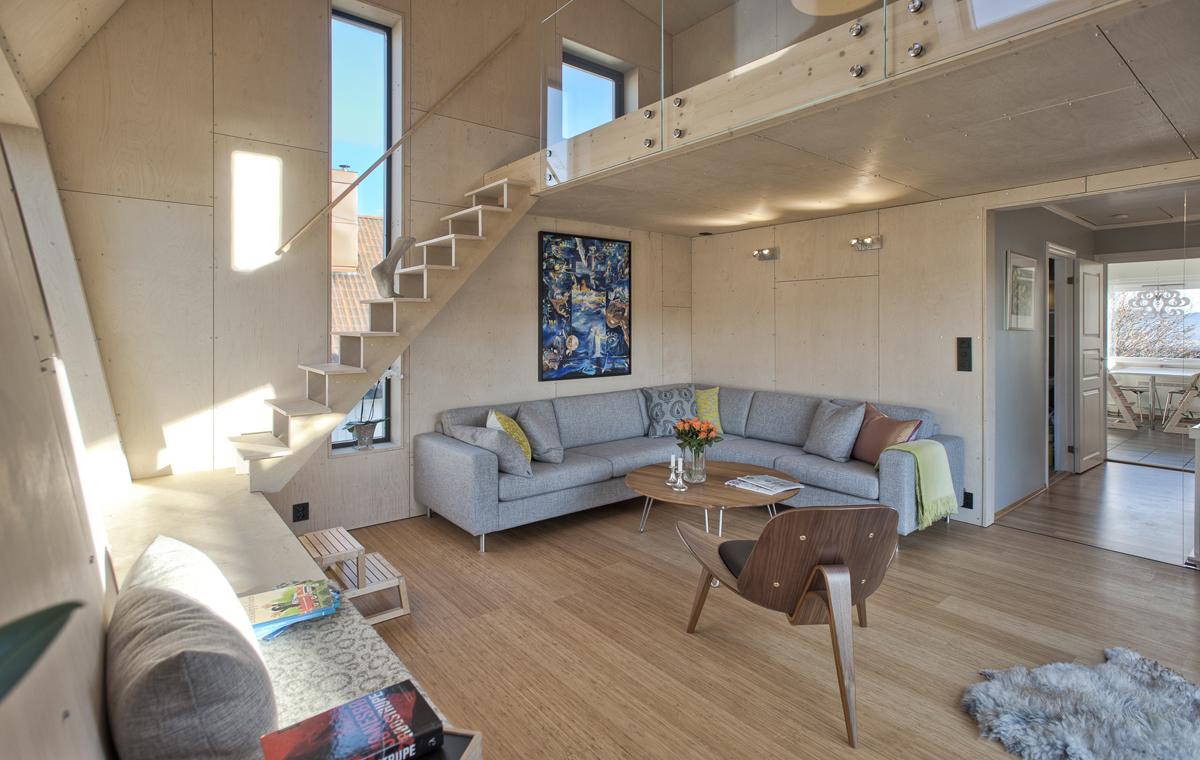

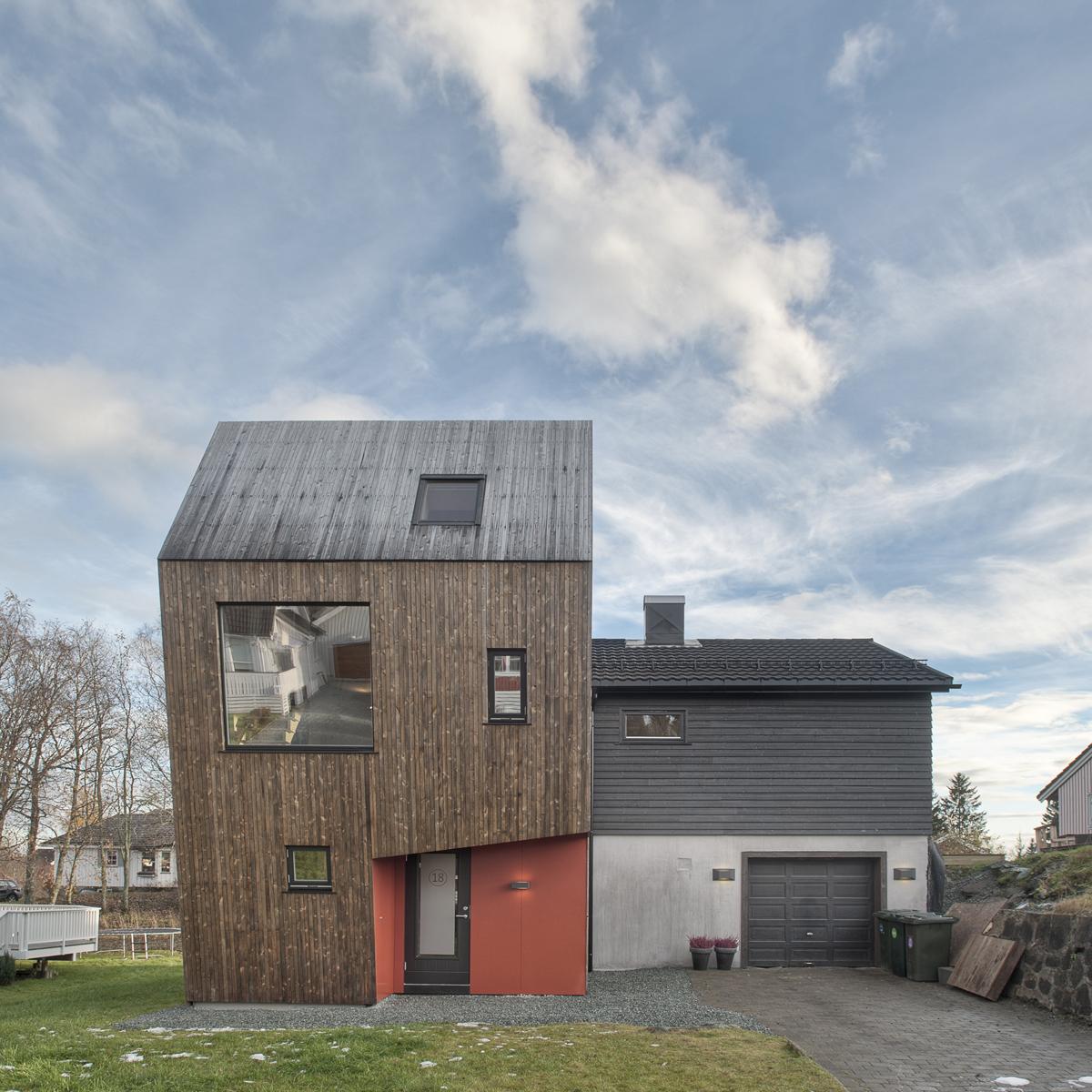

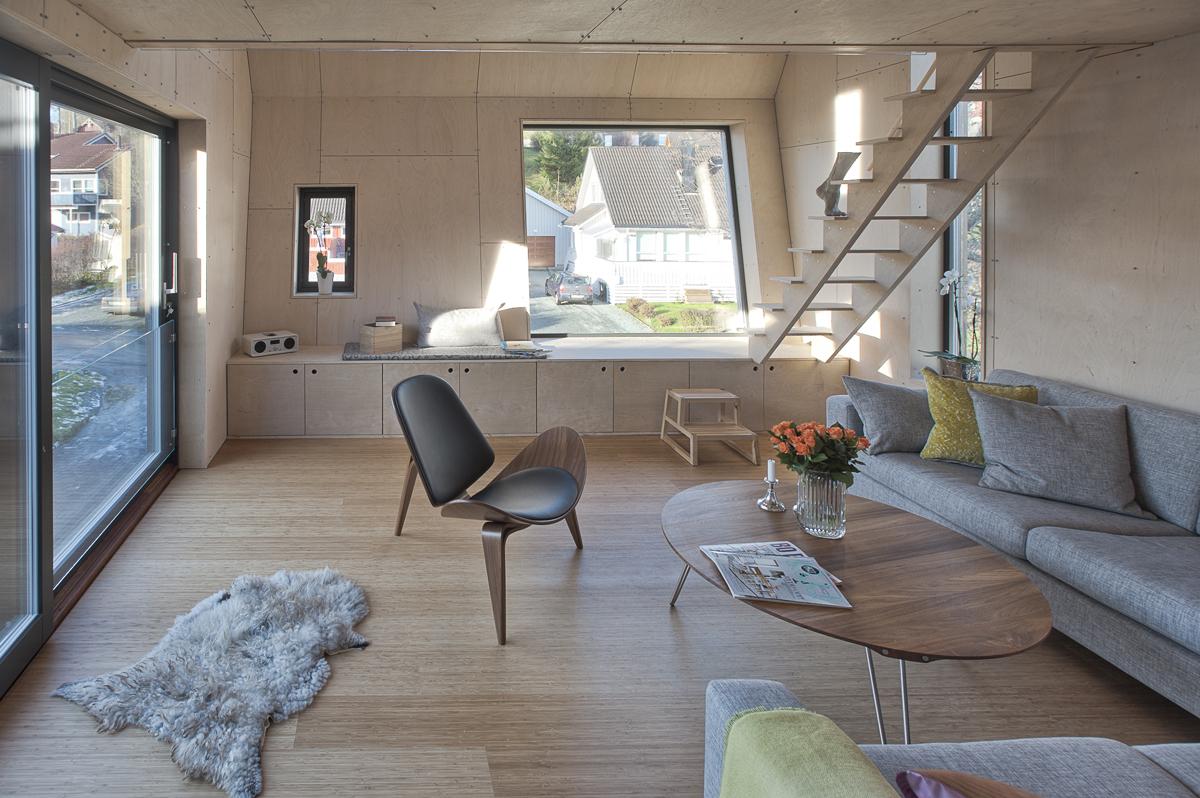

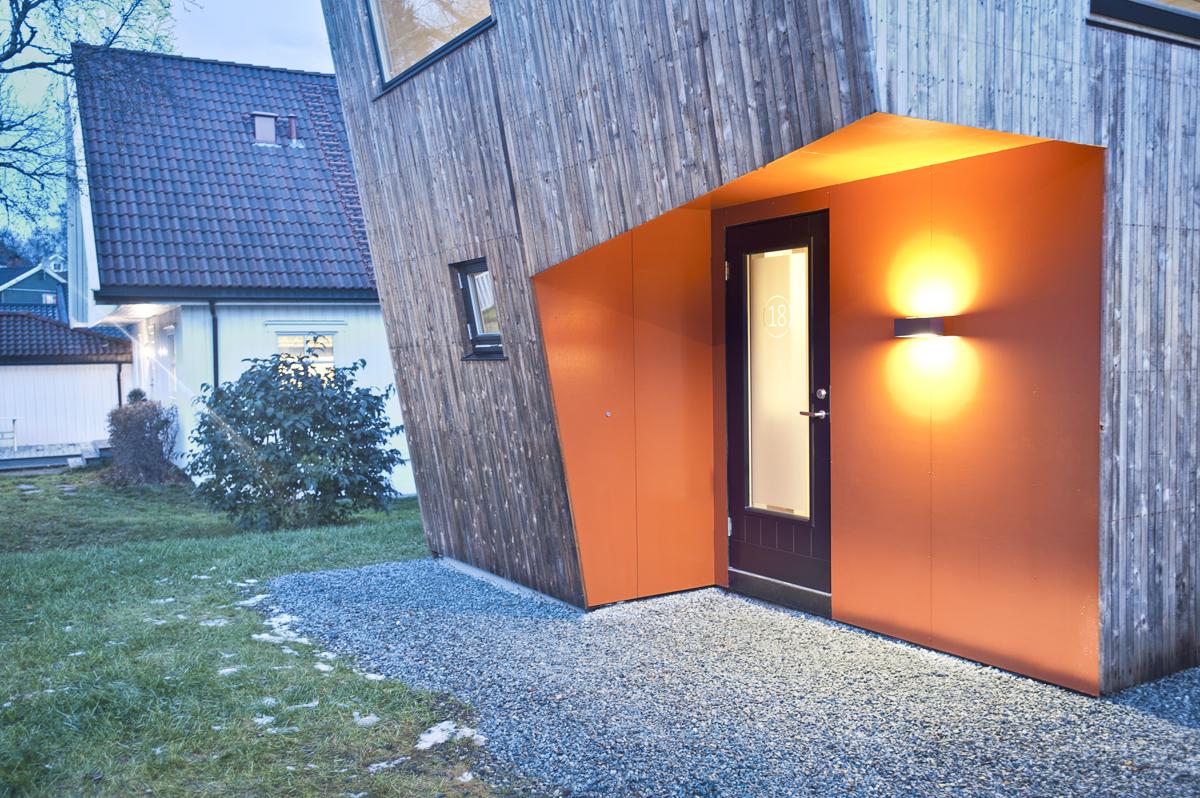

从该建筑底层一个宽敞的入口进入室内,你会发现里面有浴室及洗衣房配套设施。新扩建的二层增加了一个大挑高的多功能间。这样的模式打破了二十世纪五十年代以来这种类型房子通用的单一结构。室内设施的各种功能满足了人们的不同需要,而这些都得益于这部分附加建筑的特殊形状结构。这栋别墅位于一些传统的挪威建筑之中,是对建筑规范可接受尺度的一次挑战。而当地人对这栋建筑的评价也褒贬不一,有人赞赏,有人怀疑。


On the ground floor the project created a spacious entry area with a combined bath- and laundry-room. The second floor of the addition adds a new multi-purpose room with a high ceiling. This constitutes a break with the monotonous section common to this type of house from the 1950s. The distribution of functions, answering to different needs, contributes to the particular shape of this addition. The house stands out in an otherwise very traditional Norwegian neighbourhood. It challenges the boundaries for what is acceptable within building norms. The feedback from the local area has been on both ends of the scale, ranging from positivity to skepticism.

突破传统的挪威小木屋/ TYIN tegnestue Architects第5张图片
© Pasi Aalto

突破传统的挪威小木屋/ TYIN tegnestue Architects第6张图片
© Pasi Aalto

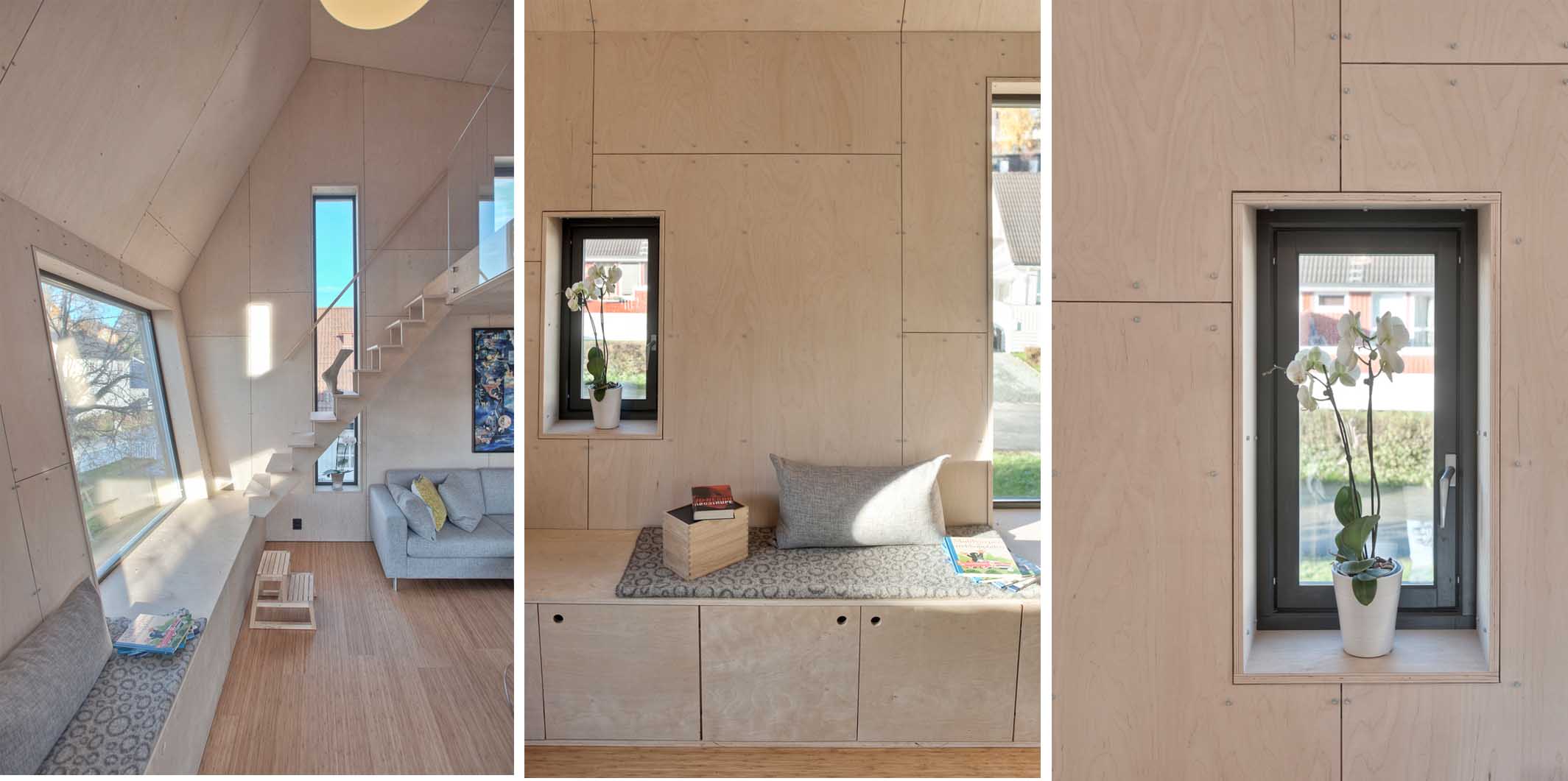

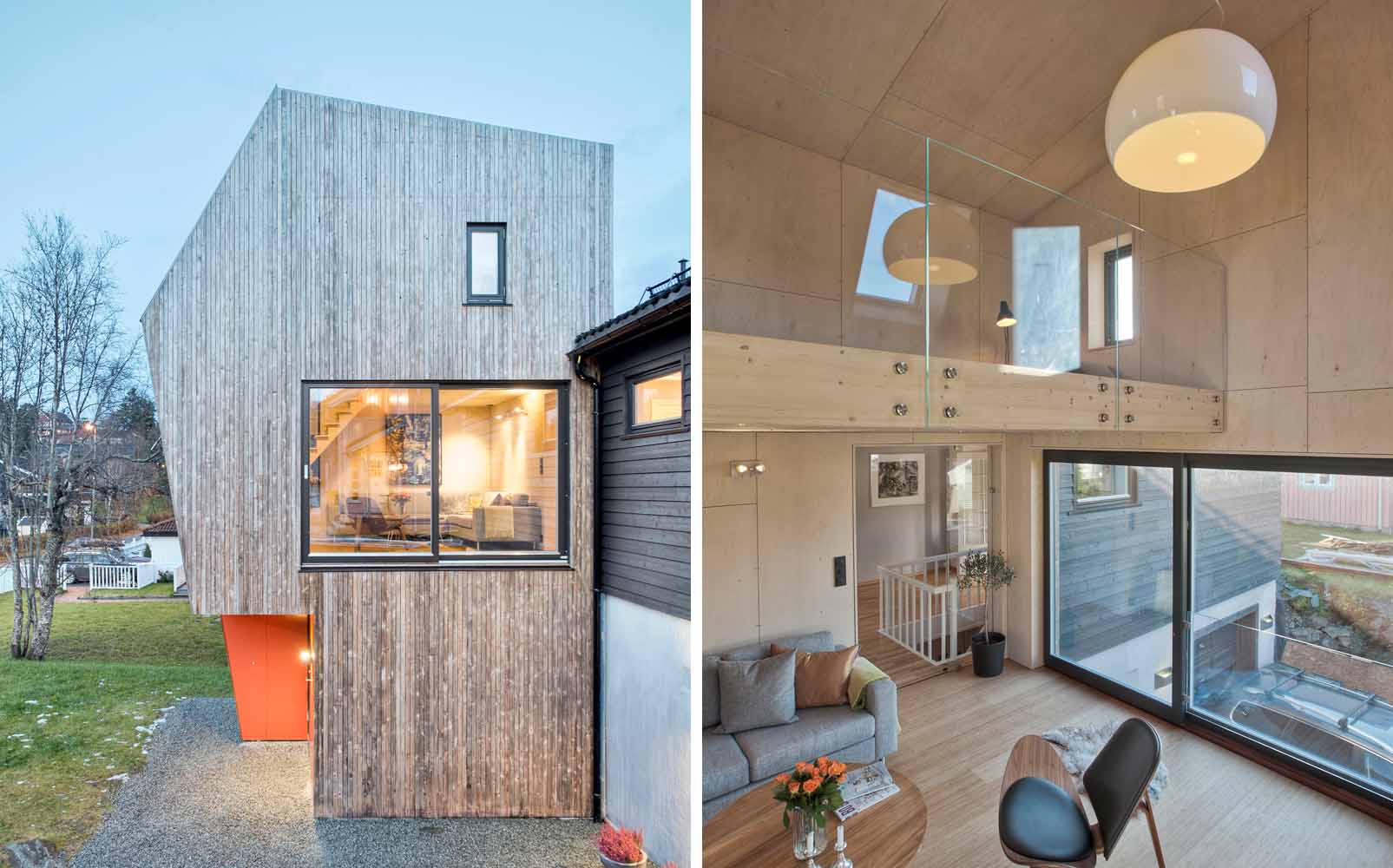

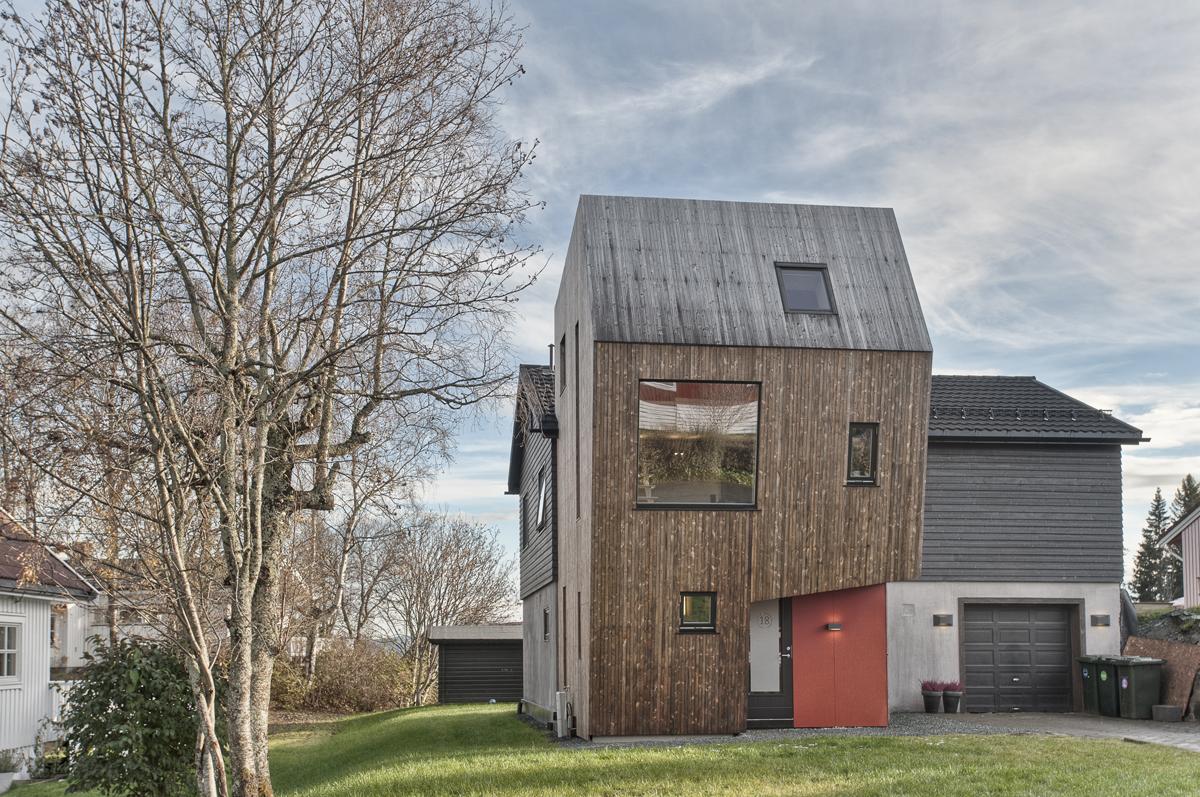

该建筑的外观镶嵌着自然纹理的松木,之前我们的船屋项目也使用过同样的环保材料。关于附加建筑的内装,我们决定使用挪威胶合板制作的饰面板,饰面板的螺栓和其他一些细节部分也会清晰可见,显得古朴而简洁。通过该项目,我们充分证明了一个设计理念:对一个项目的切实承诺是实现所期望结果的一个重要因素。而且,它也证明了:我们在国际上学习和使用的建筑方法在挪威也同样适用。


The facade is cladded with naturally treated pine, the same environmentally friendly material used previously on our boathouse project. For the interiors of the addition, we decided to use Norwegian plywood from birch, with visible bolts and simple details. This project confirmed the notion that a close commitment to a project is a key factor in achieving the desired result. It also proves that the method we have learned and used in the international setting has relevance in Norway.

突破传统的挪威小木屋/ TYIN tegnestue Architects第7张图片
© Pasi Aalto

突破传统的挪威小木屋/ TYIN tegnestue Architects第8张图片
© Pasi Aalto

突破传统的挪威小木屋/ TYIN tegnestue Architects第9张图片
© Pasi Aalto

突破传统的挪威小木屋/ TYIN tegnestue Architects第10张图片

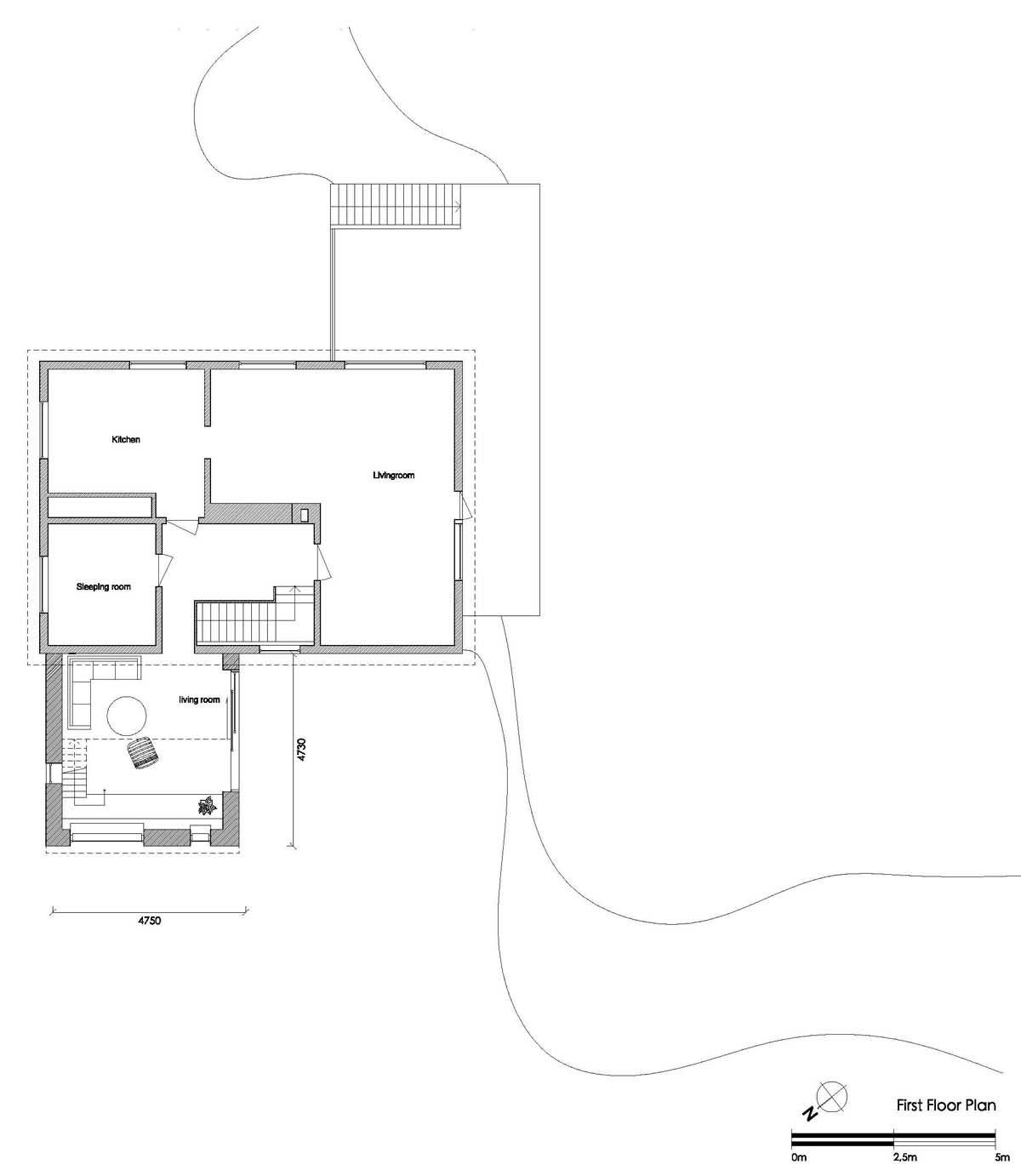

底层平面图

突破传统的挪威小木屋/ TYIN tegnestue Architects第11张图片
平面图

突破传统的挪威小木屋/ TYIN tegnestue Architects第12张图片
立面图

突破传统的挪威小木屋/ TYIN tegnestue Architects第13张图片
剖面图

突破传统的挪威小木屋/ TYIN tegnestue Architects第14张图片
© Pasi Aalto
